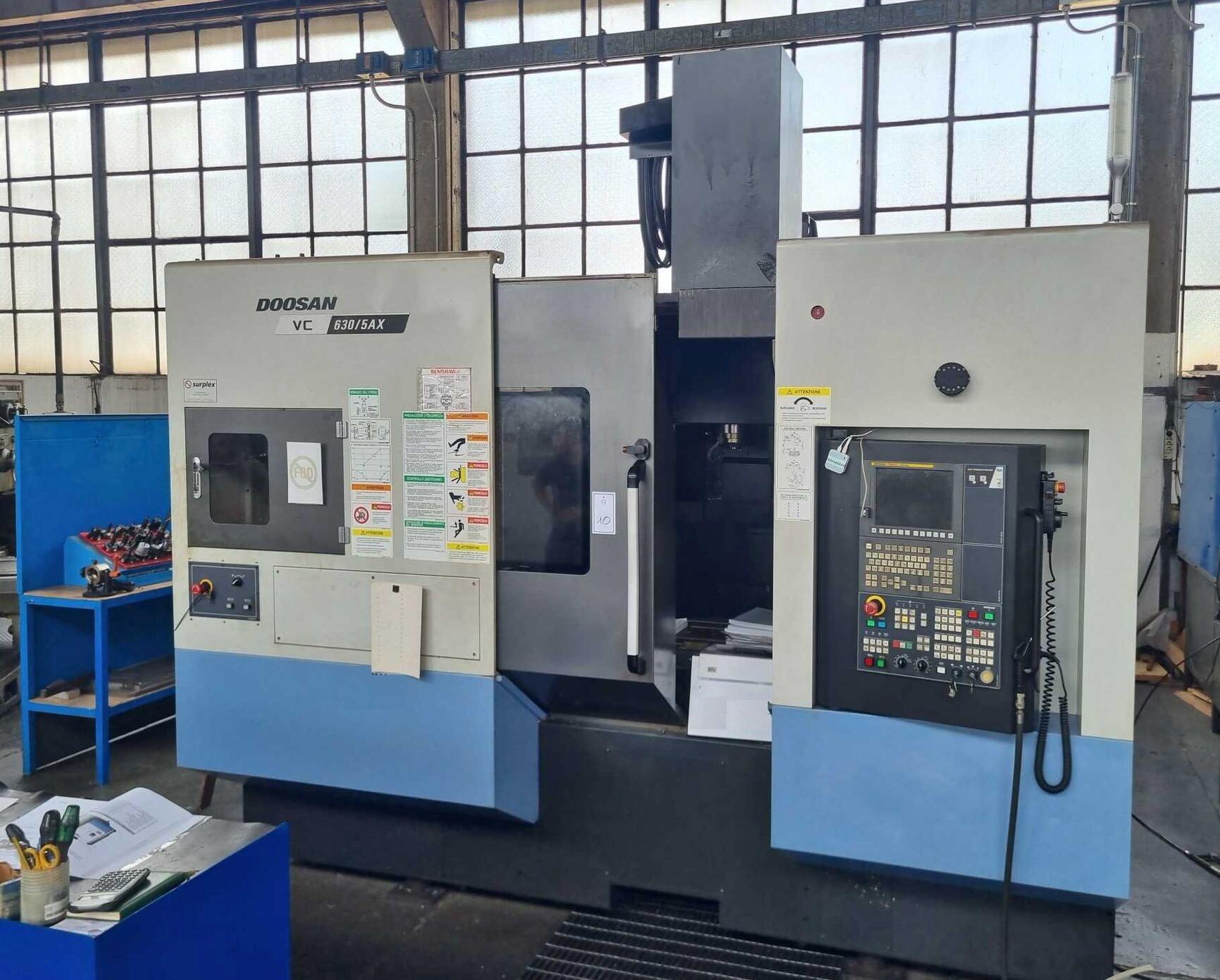

CENTER DOOSAN MO. VC 630/5AX
09612
5 AXIS

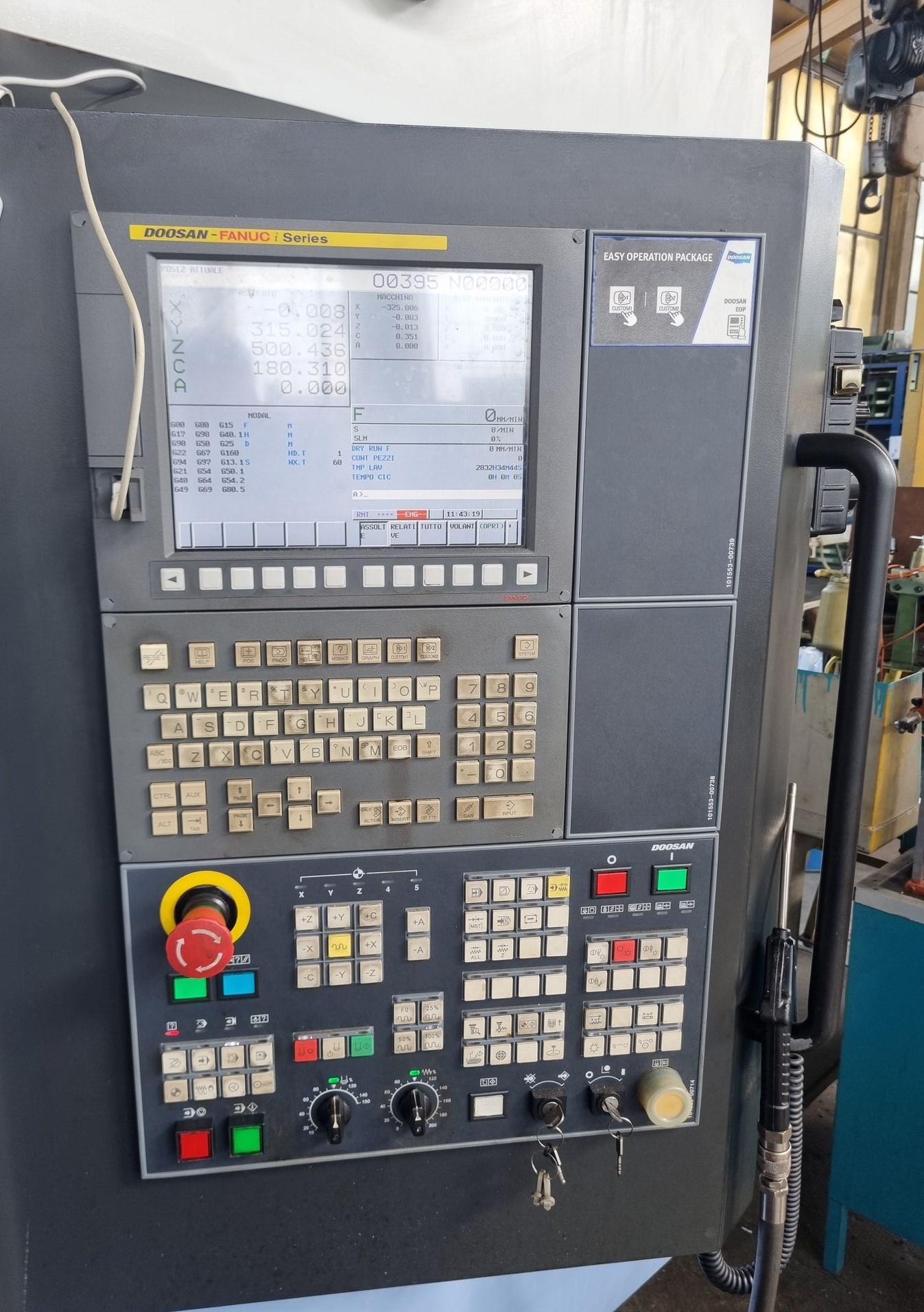

CNC FANUC i SERIES
X axis stroke 650 mm
Y axis stroke 765 mm
Z axis stroke 520 mm
A axis strokel 150°
C axis stroke 360°
Table diameter diam. 630 mm
Max piece dimensions diam. mm 730x500
Max table load 500 kg
X/Y axis feed speed m/min 40
Z axis feed speed m/min 36
A axis feed speed rpm 20
C axis feed speed rpm 30
Positioning accuracy mm +/- 0.005
Repeatability accuracy mm +/- 0.002
Spindle power (cont./30 min.) kW 18.5/22
Max spindle speed rpm 12000
Tool holder ISO 40
Tool changer 60 positions
Max tool length 300 mm
Max tool diameter 80/125 mm
Max tool weight 8 kg
Machine weight approx. 12500 kg
Machine overall dimensions approx. (lxwxh) mm 3600x3200x3400
EQUIPPED WITH:
-Chip conveyor
-Laser tool presetting
-Through spindle coolant system 20 bars
USED MACHINE
YEAR 2016
FILL OUT OUR FORM FOR MORE INFORMATION
