LATHE MAZAK INTEGREX 300II SY
Multitasking
09379
AXIS Y

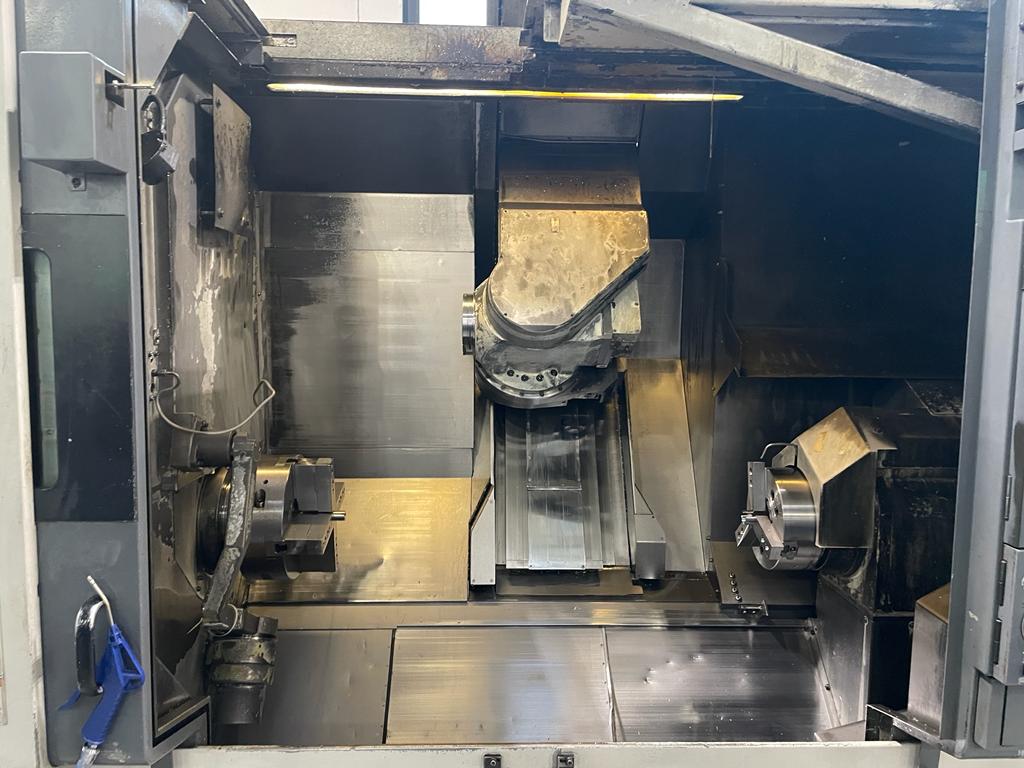

SPINDLE/SUB-SPINDLE
LIVE TOOLS

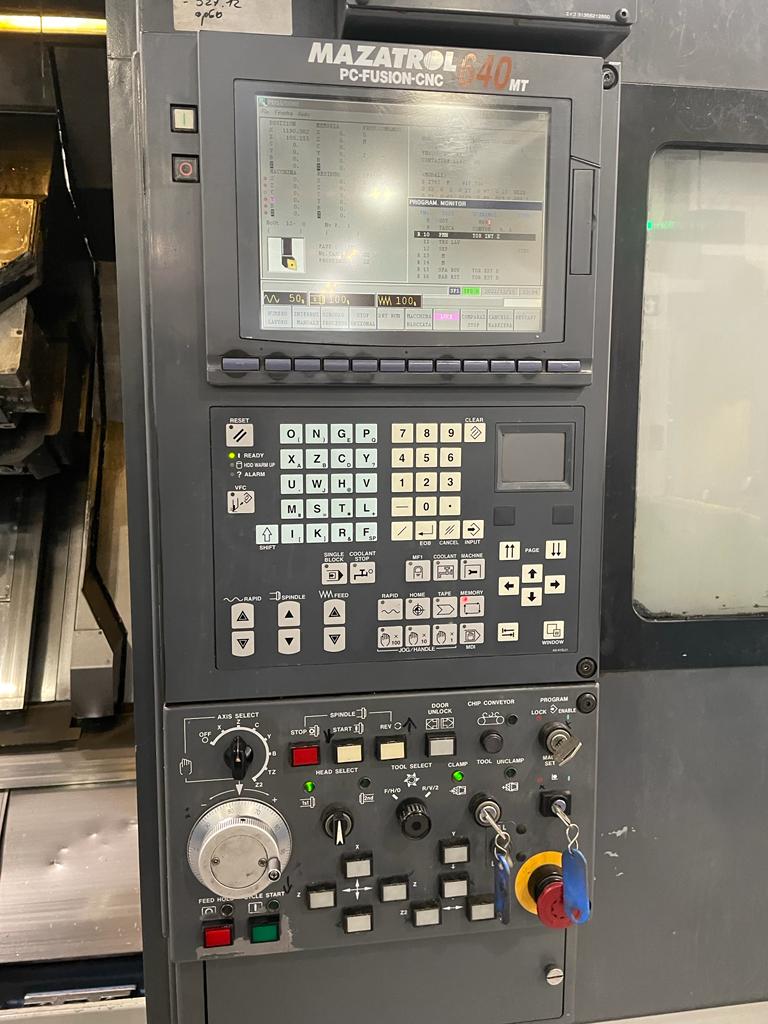

CNC Mazatrol Fusion 640 MT
CAPACITY:
Max swing diameter mm 610
Max working diameter mm 610
Max working length mm 1552
Bar passaging mm 77
STROKES:
X-axis strokes mm 580
Y-axis strokes mm 230
Z axis strokes mm 1605
RAPID FEED:
X/Z axes rapid feed mt 30
Y-axis rapid feed mt 15
SPINDLE:
Spindle speed rpm 35-3500
Spindle bore diameter mm 88
Spindle taper ASA 8
Spindle motor power (30 minutes/continuous) Kw 26/22
SUB-SPINDLE:
Sub-Spindle speed rpm 35-3500
Sub-Spindle bore diameter mm 76
Spindle motor power (30 minutes) Kw 22
MILLING HEAD:
Milling spindle motor power (20%ED) Kw 15
Milling spindle speed rpm 15-10000
TOOL MAGAZINE:
Tool magazine 40 positions
EQUIPPED WITH:
-Blowair on the main spindle
-Motor overload detector
-15 bar refrigerant
-Automatic shutdown
-High/low pressure selection of main spindle clamps
-Renishaw
-Chip conveyor
-Synchronized tapping
-Drilling cycle
-Cylindrical interpolation
-EIA/ISO

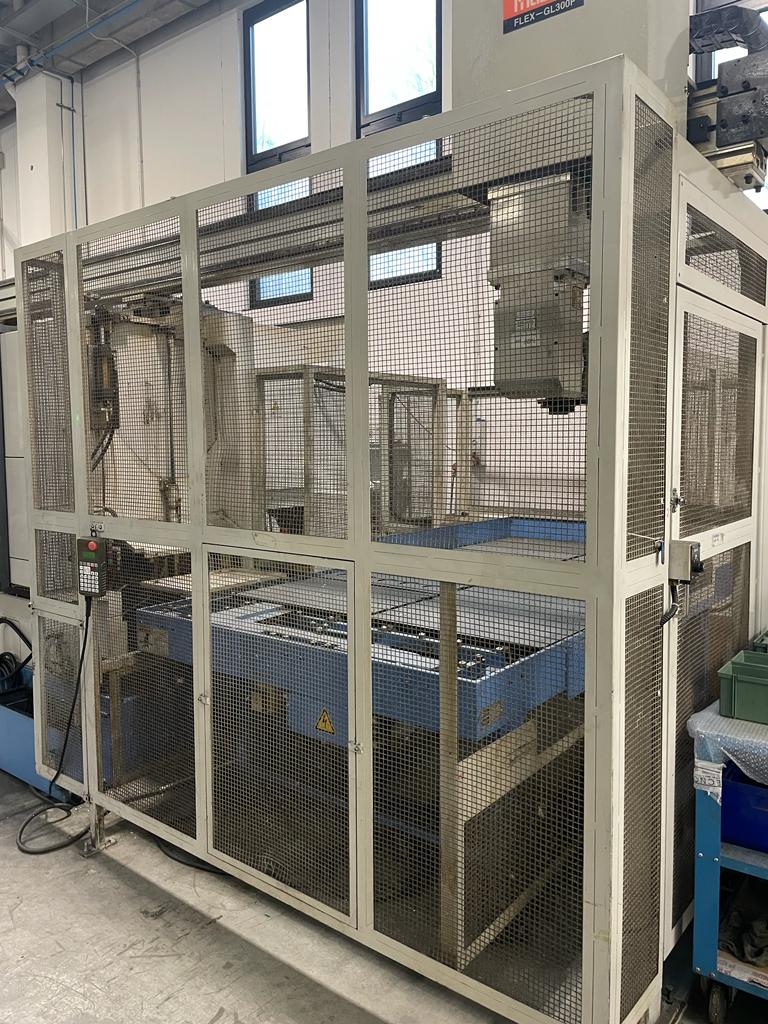

-GL 300F gantry system, D3 hand with SHUTTER LOOP II conveyor
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
