LATHE CNC GRAZIANO MT 400C
2 axis
lathe cnc - Used Machines
GRAZIANO
08065
08065
CNC Heidenhain 532T
WORKING RANGE:
Max swing diameter mm 430
Max turning diameter mm 300
Max diameter over slide mm 265
Distance centre mm 755
Longitudinal Z axis mm 700
Cross X axis mm 230
Max weight between centre Kg 265
SPINDLE:
Taper ASA 6''
Speed 20-5000 Rpm
Motor power 22 Kw
Chuck mm 210
Bar capacity mm 64
TAILSTOCK:
Quill diameter mm 90
Taper morse 4
Quill stroke mm 125
TURRET:
Taper VDI 30
No. positions 12
EQUIPED WITH:
-Chip conveyor
USED MACHINE

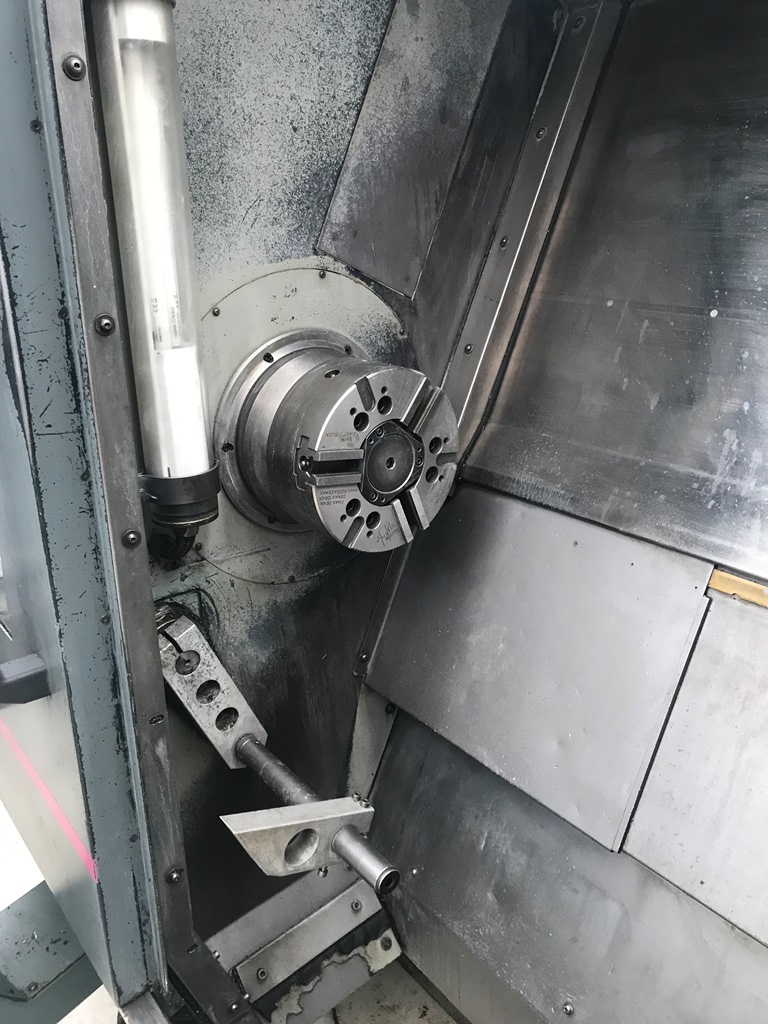

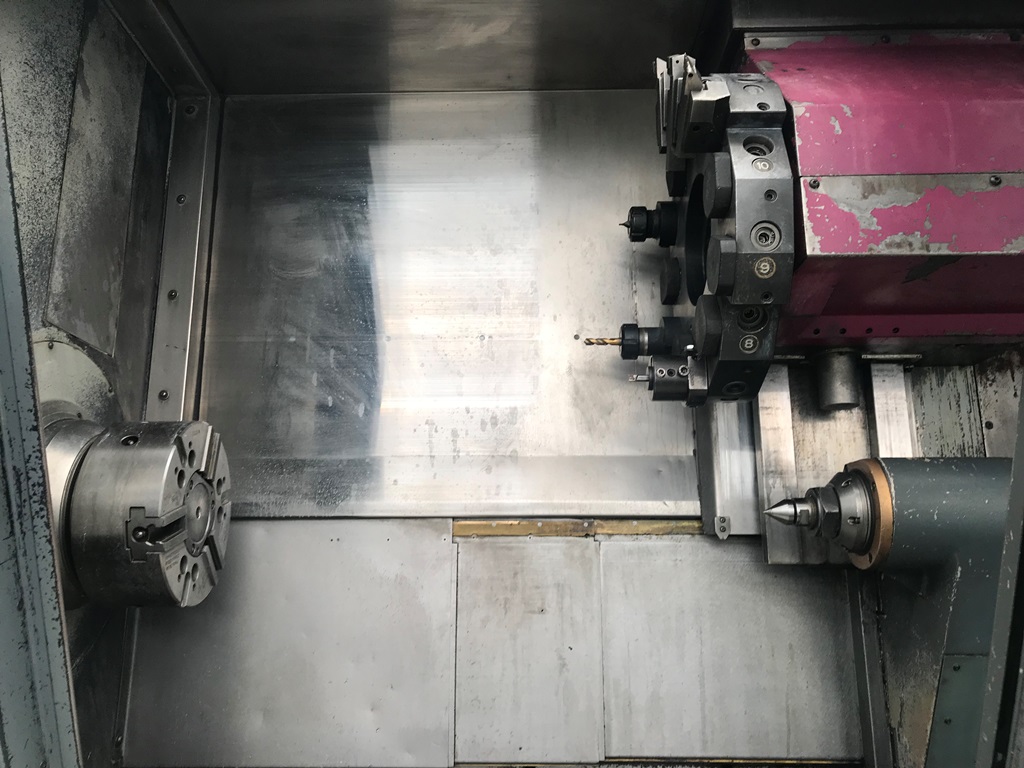

IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
