CENTER MIKRON UCP600
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
09247
5-AXIS SIMULTANEOUS

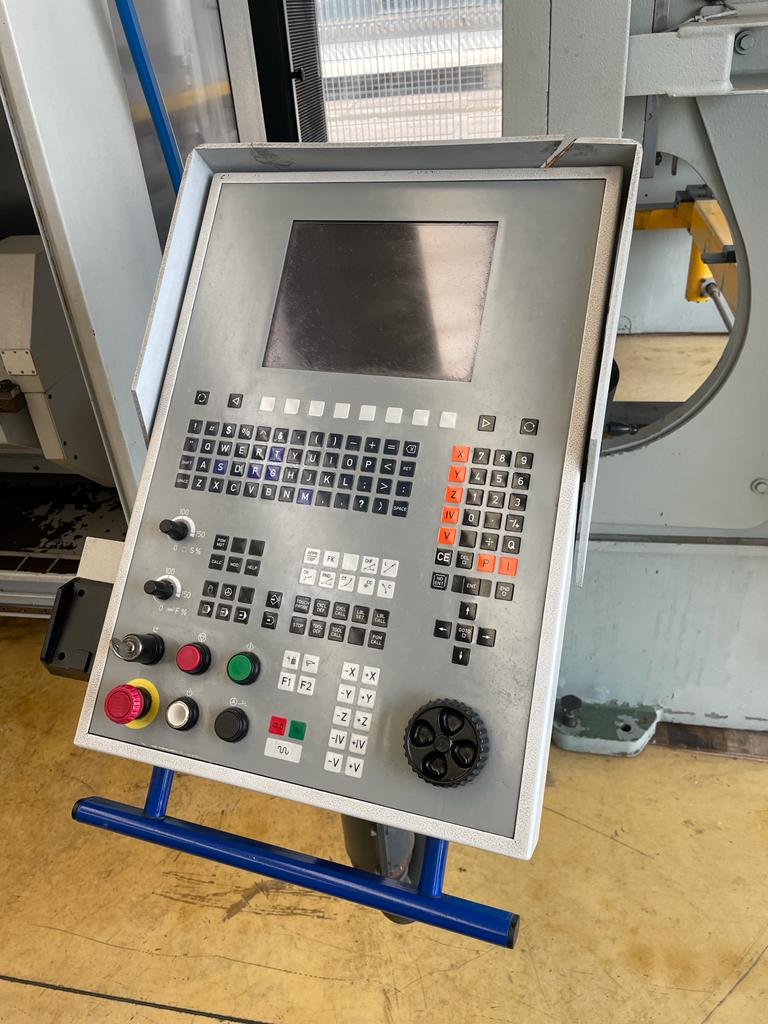

CNC HEIDENHAIN TNC 430 M
X axis travel 530 mm
Y axis travel 450 mm
Z axis travel 450 mm
Spindle speed rpm 12000
Spindle power kW 12 (100%) / 16 kW (40%)
Spindle ISO 40
Tool change 30 positions
Max tool diameter mm 110
Max tool length 250 mm
Max tool weight Kg 6
Chip/chip time sec. 11

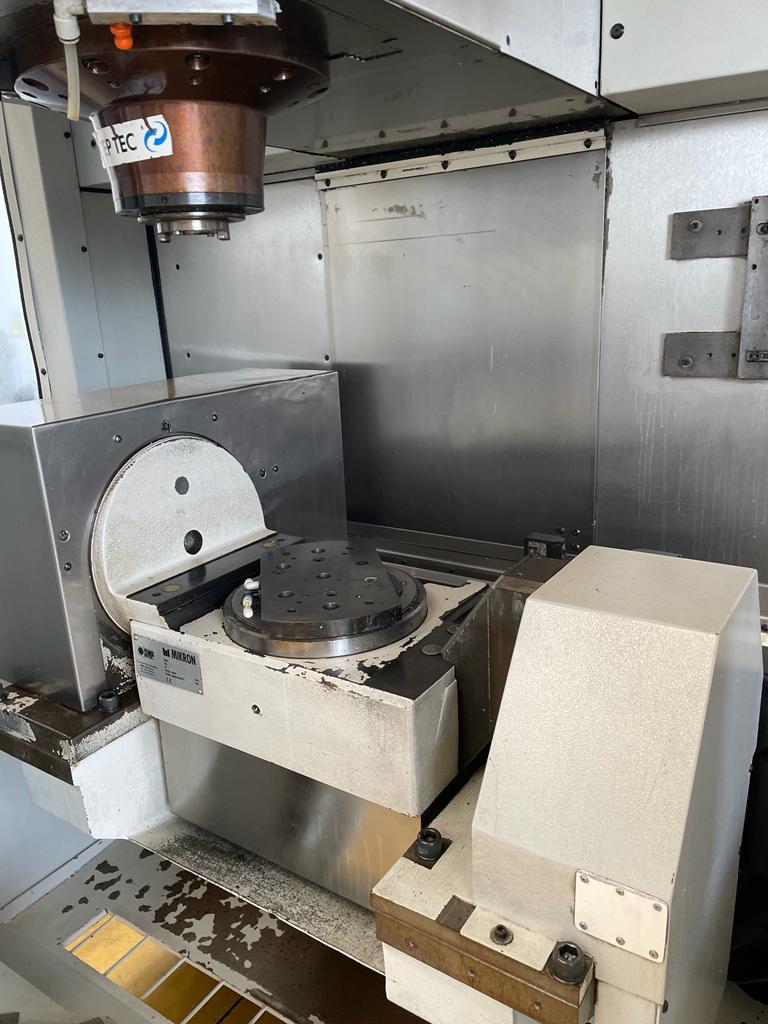

Swiveling rotary table (fourth + fifth axis) diam. 280 mm
Max load allowed on the table Kg 200
C axis rotation 360,000 degrees
A-axis tilt +122 degrees/-15 degrees
OVERALL DIMENSIONS AND WEIGHT:
Length 3400 mm
Width mm 2920
Height 2645 mm
Weight Kg 6500
COMPLETE WITH:

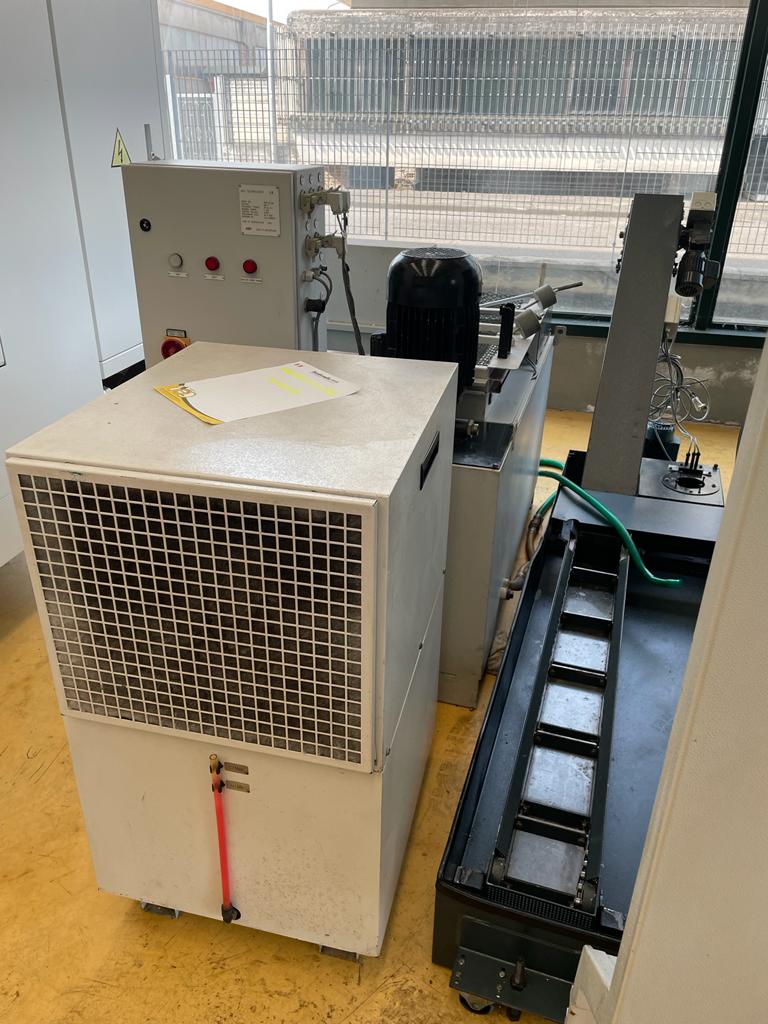

-High pressure through the spindle 18 bar
-Paper filter
-Chip evacuator
-Tool presetting type LASER BLUM
USED MACHINE
