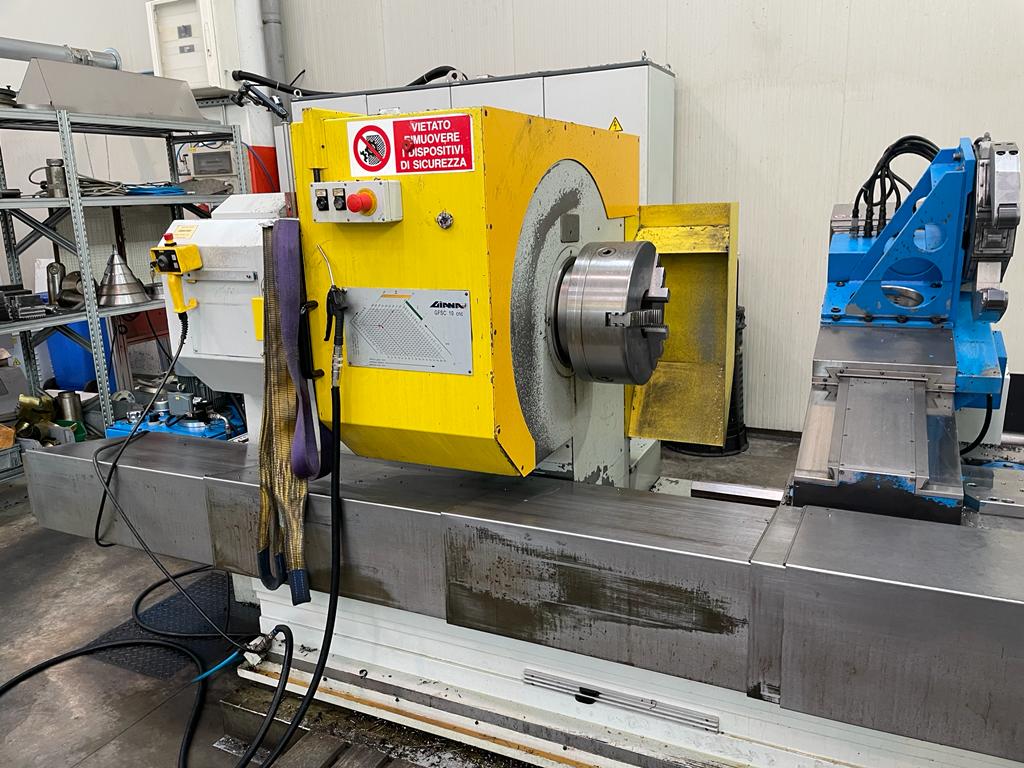

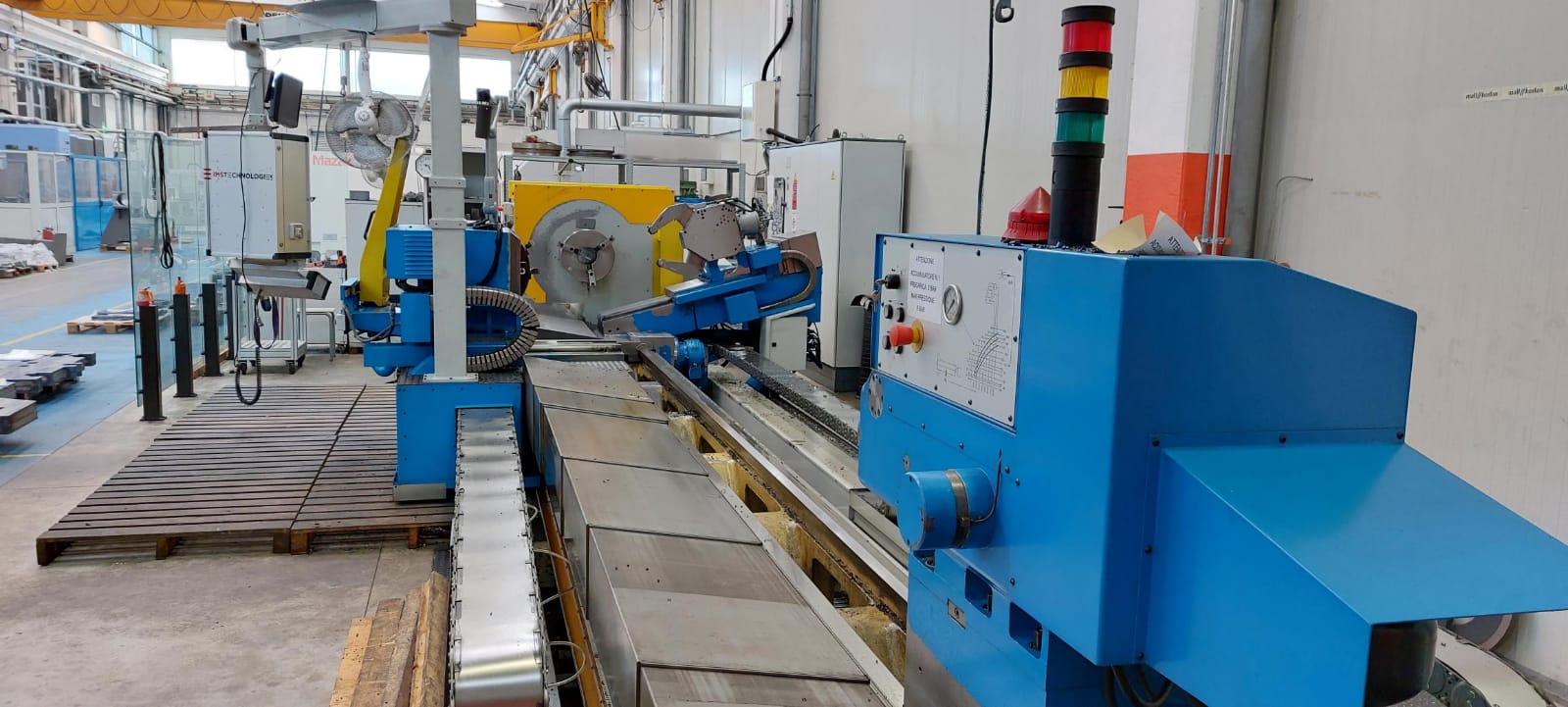

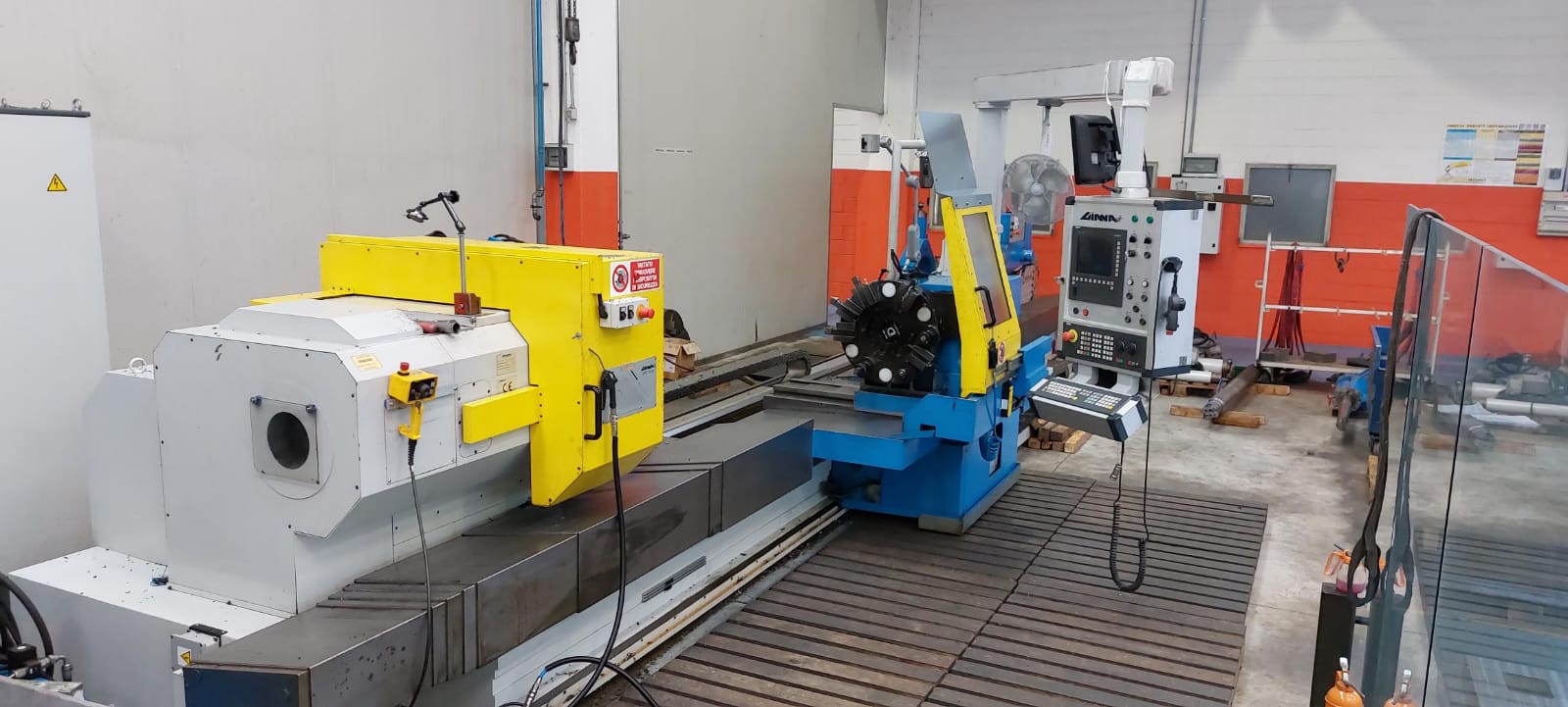

LATHE GIANA MOD. GF/SC10
With live tools
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
09169

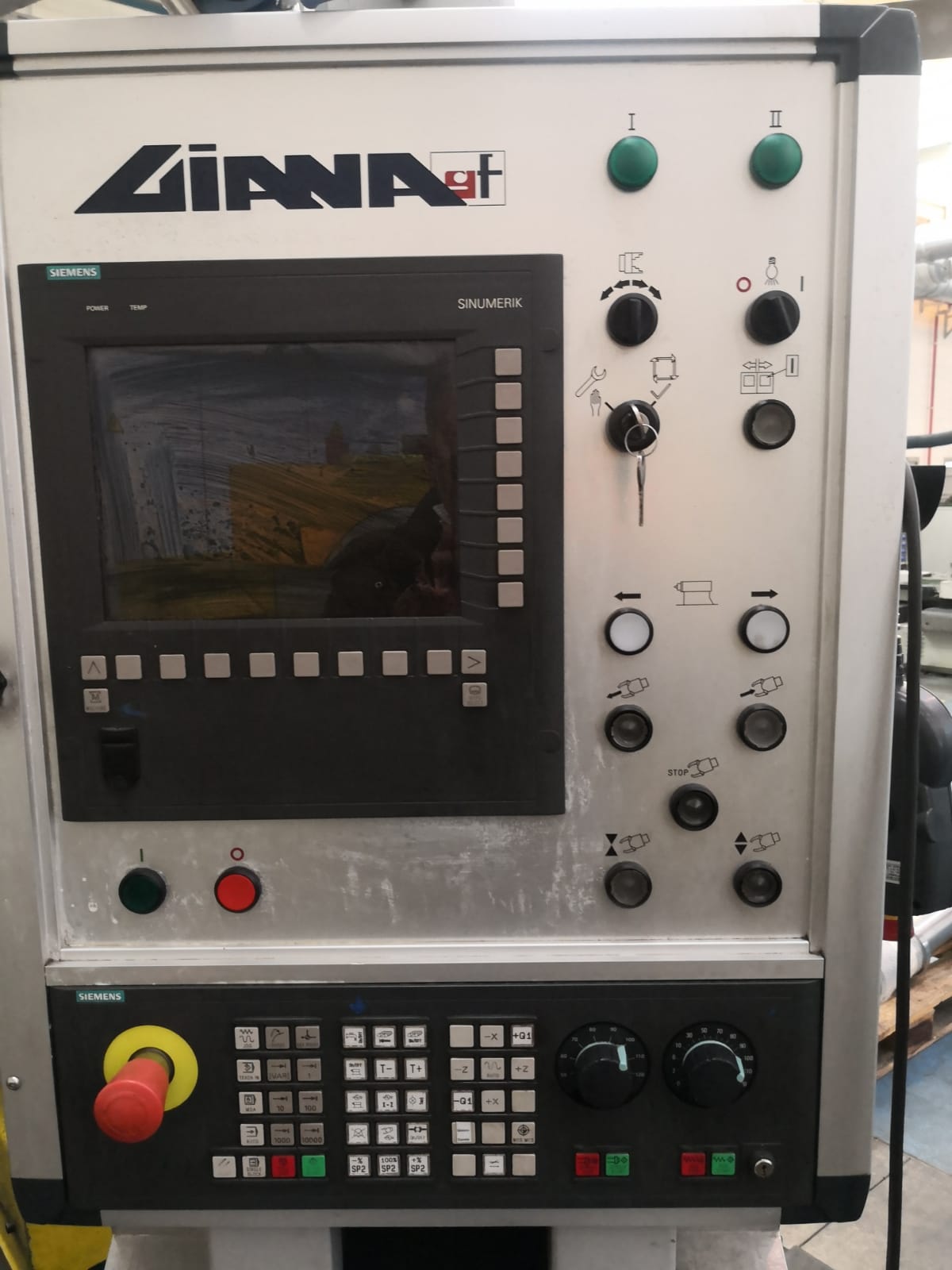

CNC SIEMENS 840 D SL
CAPCITY:
Center height over bed mm 560
Swing diameter on the bed (without telescopic guards) 1120 mm
Swing diameter on the bed (with telescopic protections) 930 mm
Turning diameter on the cross mm 770
Distance between centers mm 6000
Max workpiece weight supported between the tips without steady rests Kg 6000
Center height on the table surface of the bed mm 1150
SPINDLE:
Spindle nose ISO 702 / A2 11 ''
Bar passaging mm 155
Motor power kW 40
Number of speed ranges 2:
-1st range 347 rpm
-2st range rpm 1485
Self-centering diameter mm 700
BED:
Bed width mm 805
Number of sliding guides N.4+1
Bed height from the table surface to the guides mm 600

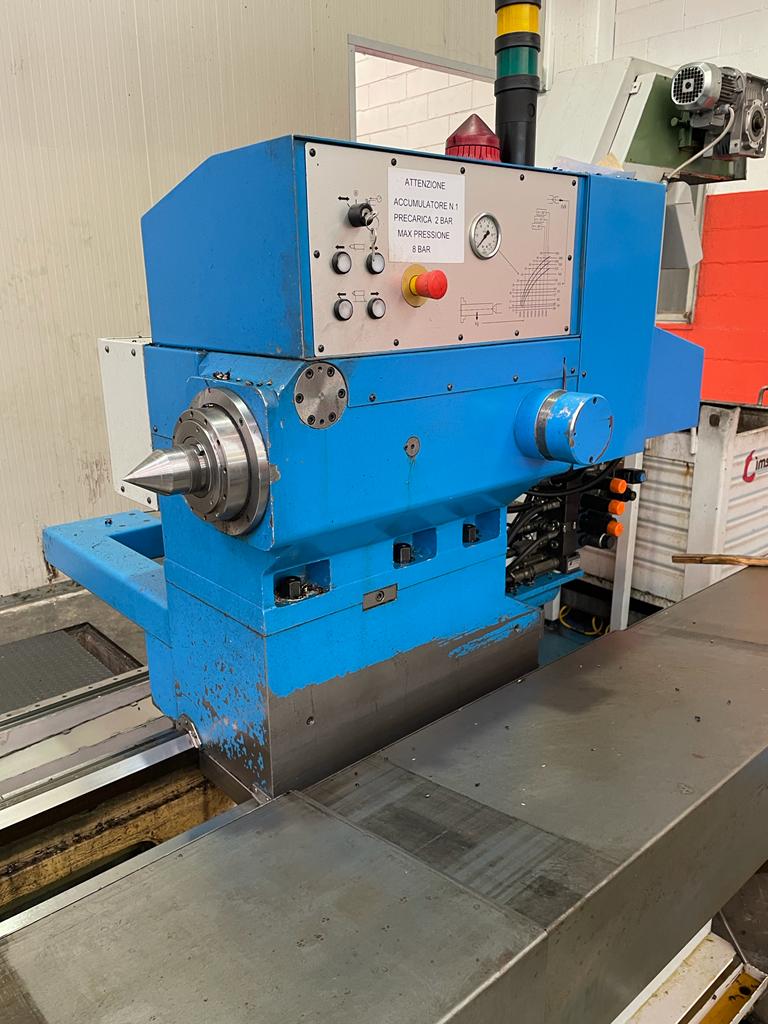

TAILSTOCK:
Quill diameter mm 160
Quill stroke 250 mm
Quill taper CM6
TURNING CARRIAGE:
Longitudinal Z axis:
-Max longitudinal stroke 6000 mm
-Work feedrate mm/min 2:3000
-Rapid feedrate mm/min 6000
Cross X axis:
-Max cross stroke 570 mm
-Work feedrate mm/min 2:3000
-Rapid feedrate mm/min 5000
TOOL CHANGE:

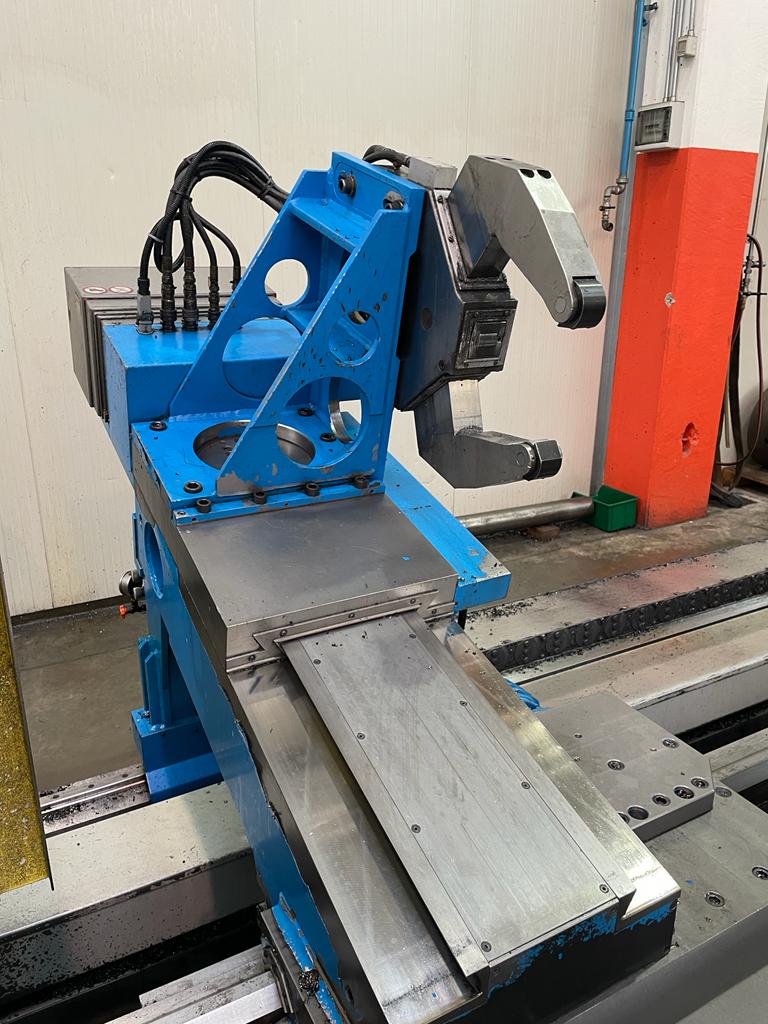

Motorized turret with 8 live tools VDI attachment
MACHINE DIMENSIONS AND WEIGHT:
Overall dimensions approx. mm 11.000x2900x2700H
Weight approx. (without electronic equipment) Ton. 18
EQUIPPED WITH:
-Steel platform with 4 independent clamps diam. 700 mm
-Device for precise positioning of the spindle

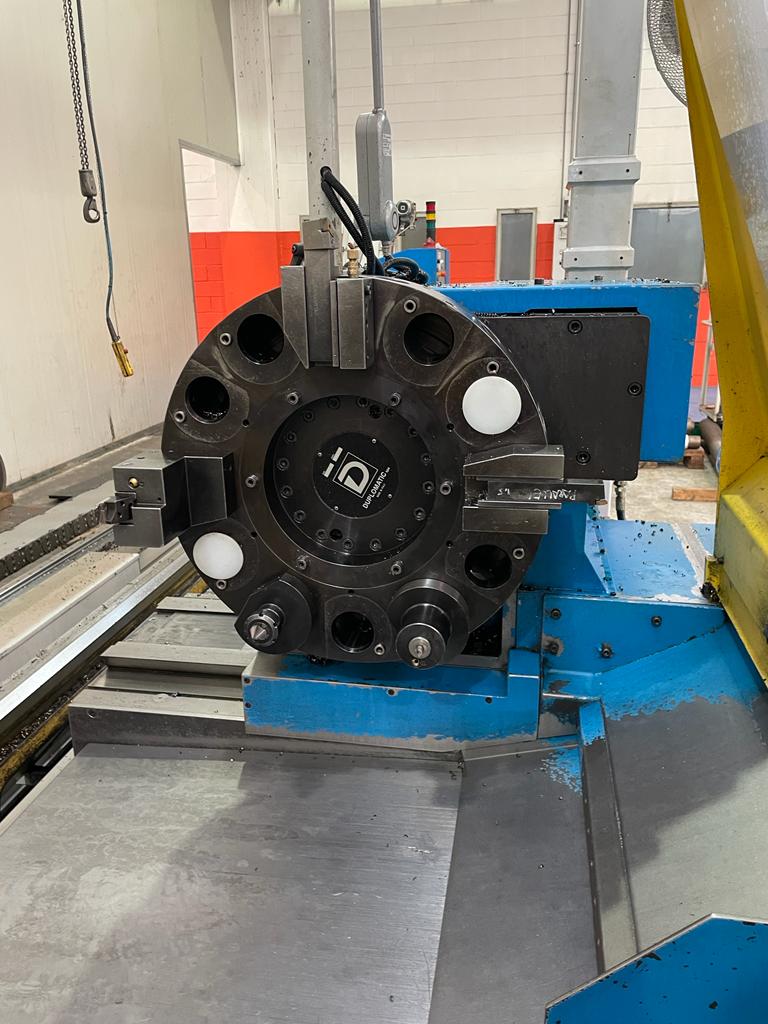

-Horizontal axis electromechanical turret DUPLOMATIC BVSN 320 12 stations complete with tool holder disc and tool motorization module

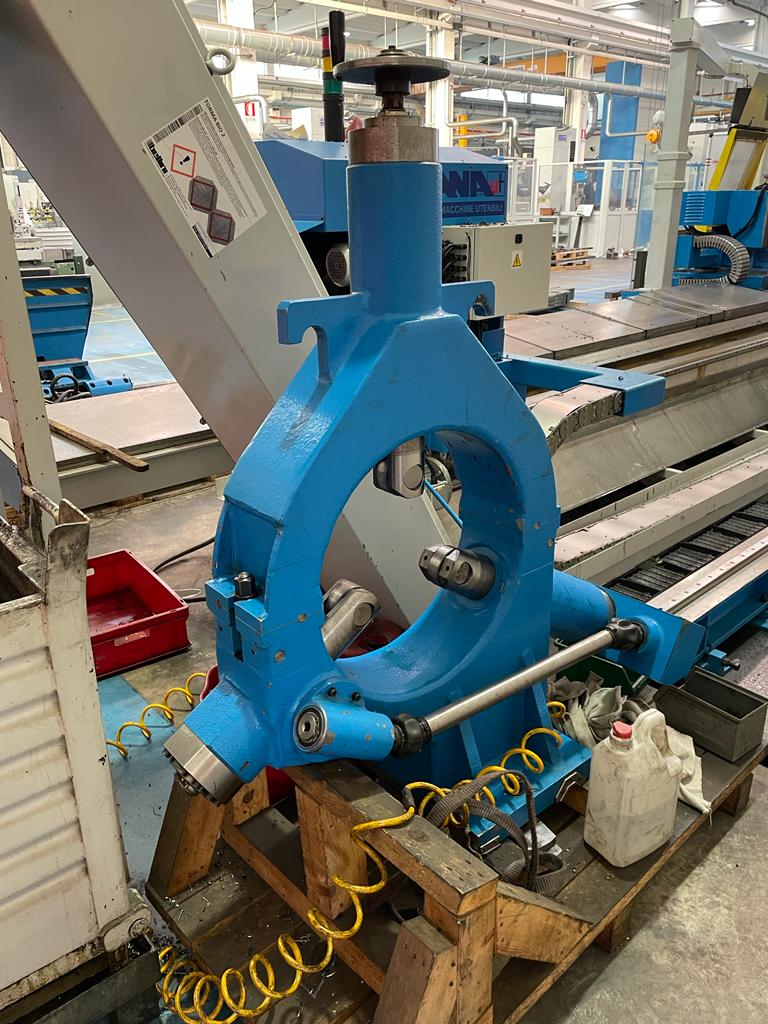

-Steady rest with manual control, gripping capacity diam. 50-500 mm, max load 3000 Kg
-Hydraulic rest with sliding guide

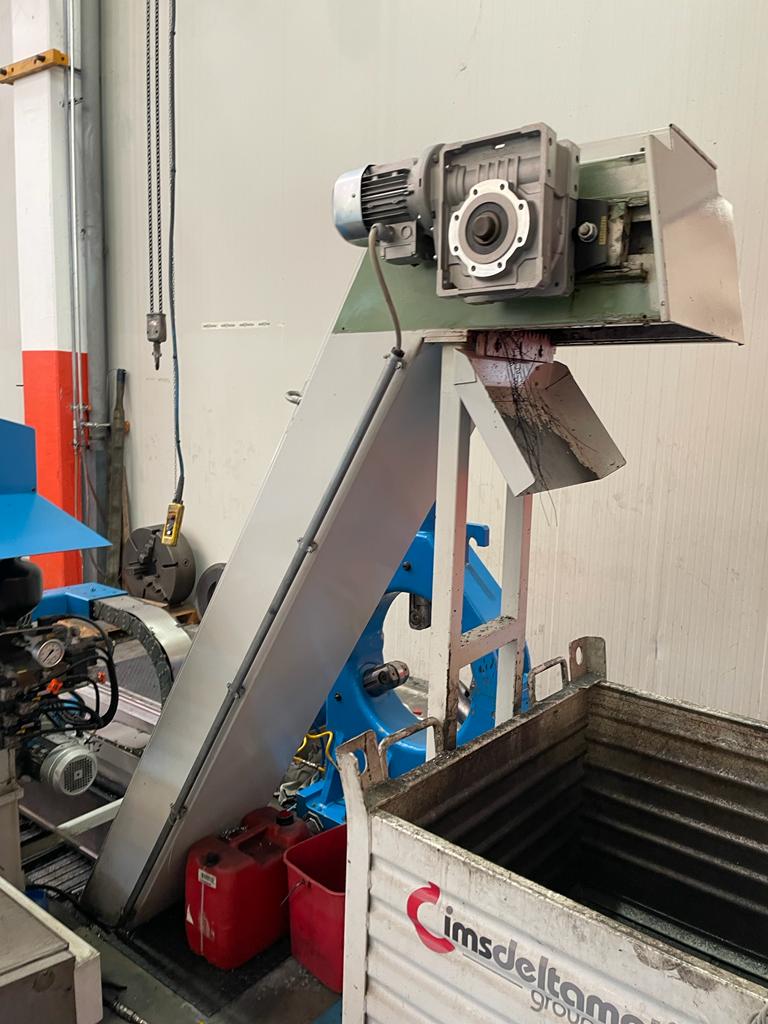

-Chip evacuator

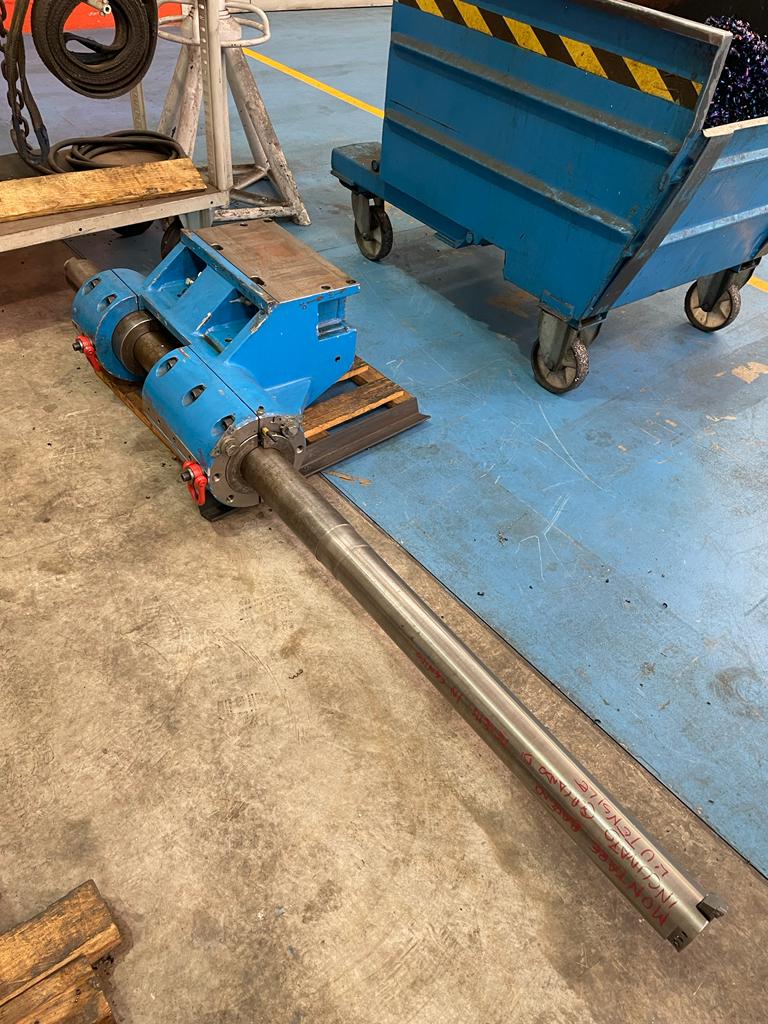

-Bar holder

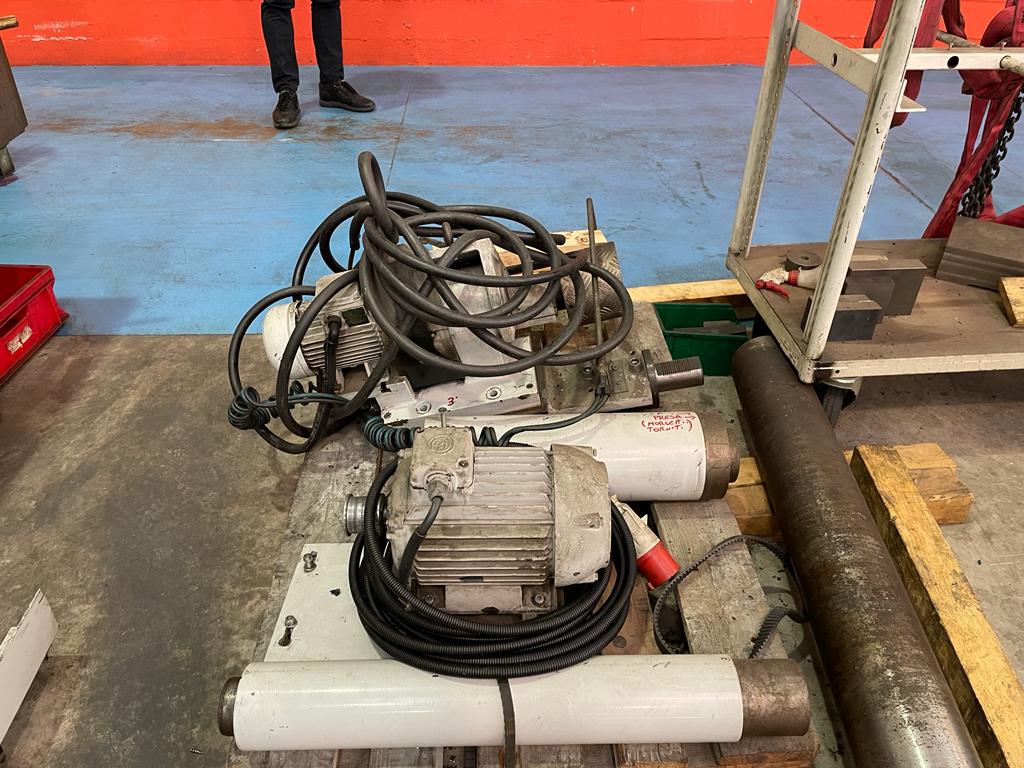

-Motorized head for grinding, VDI attachment
USED MACHINE
