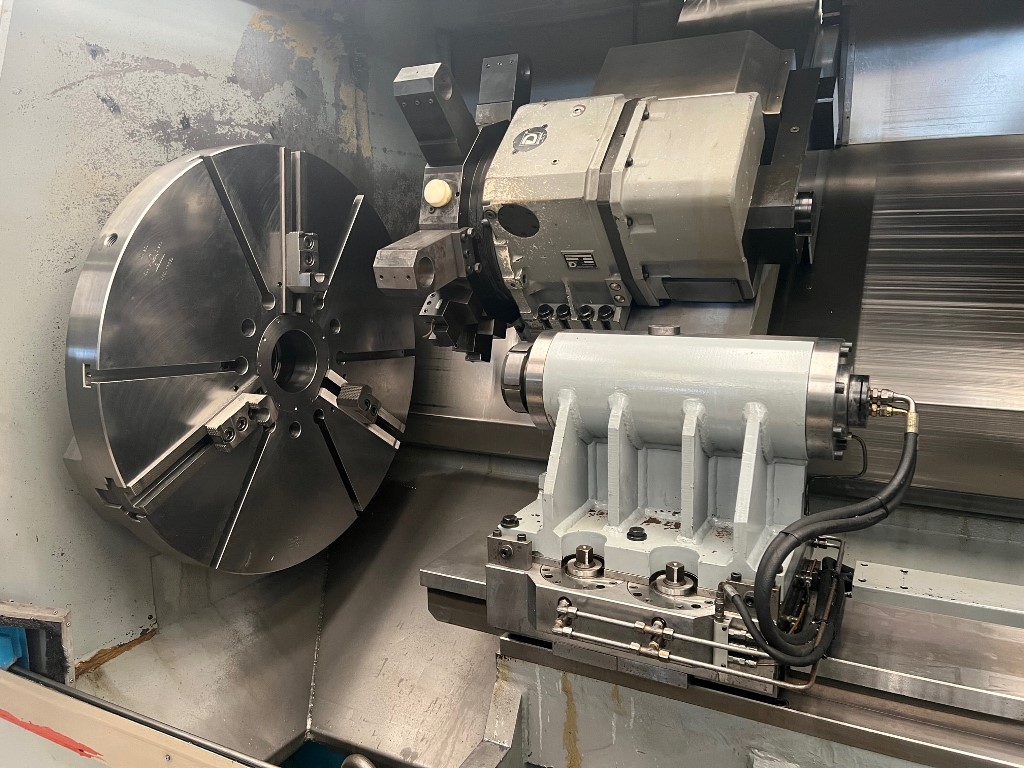

LATHE MENTI MOD. 430/1200
With live tools
09079
LIVE TOOLS
CNC SIMENES 810D
CAPACITY:
Max turning lenght mm 2000
Max swing diameter mm 1250
Max turning diameter in gap mm 1200
Max turning diameter on carriage mm 650
SPINDLE:
Spindle bore diameter mm 150
Spindle taper ASA 15''
Spindle motor power kW 29 in S6
Spindle speed rpm 1200
With GEAR BOX at 2 steps BARUFFALDI brand
AXIS:
Axis X mm 600
Axis Z mm 2000
Rapid axis X mt/min 18
Rapid axis Z mt/min 18

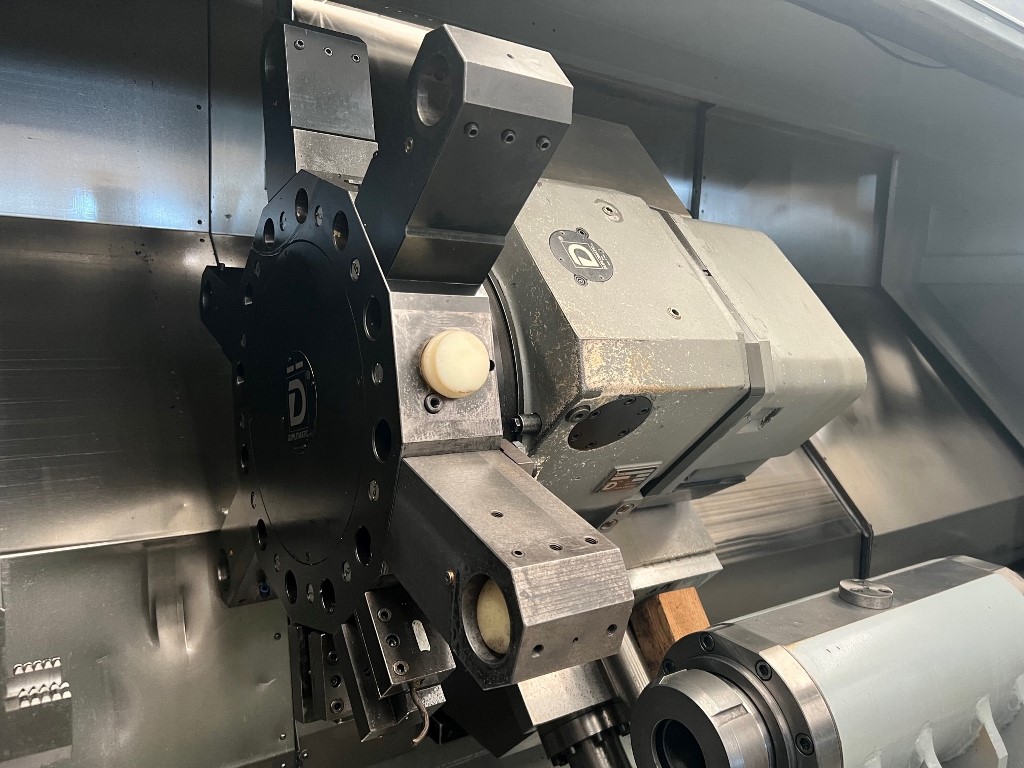

TOOL TURRET:
Stations number 12
Live tools Type VDI 40

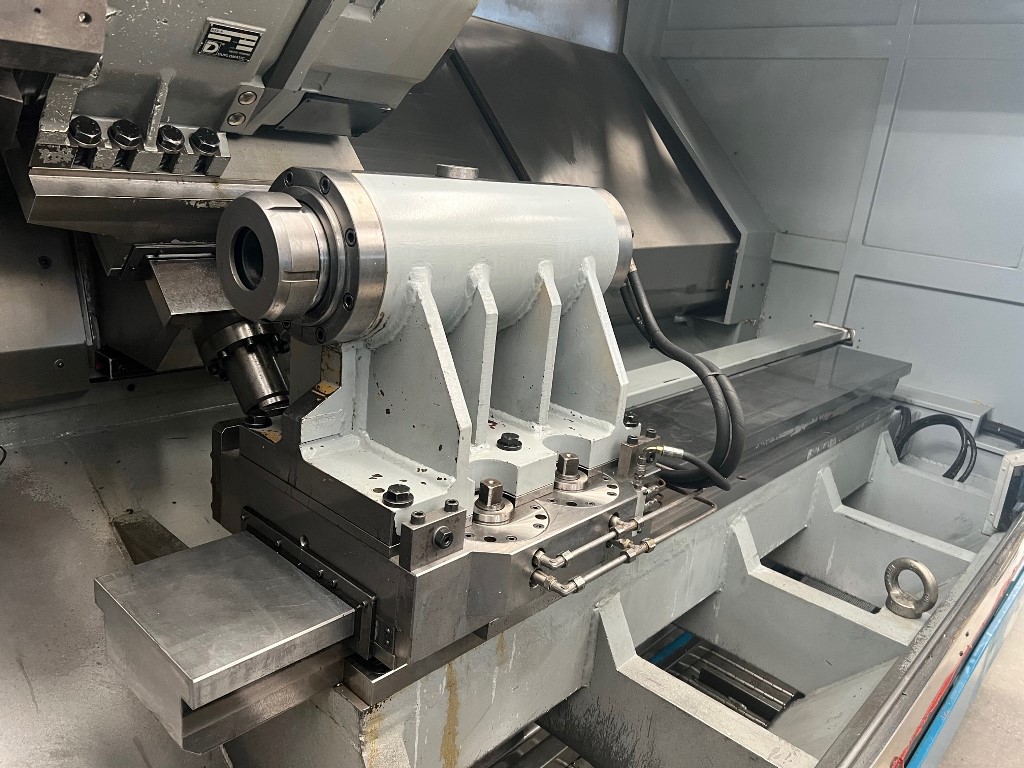

TAILSTOCK:
CM 6
OVERALL DIMENSIONS with chip conveyor:
LxLxH 7600x3000x2600 mm
EQUIPPED WITH:
-hydraulic chuck 3 jaws diam mm 1000 MARIO PINTO
-Live tool holders
-Hydraulic steady rest MORARI with 2 sets of arms
-Chip conveyor
USED MACHINE
