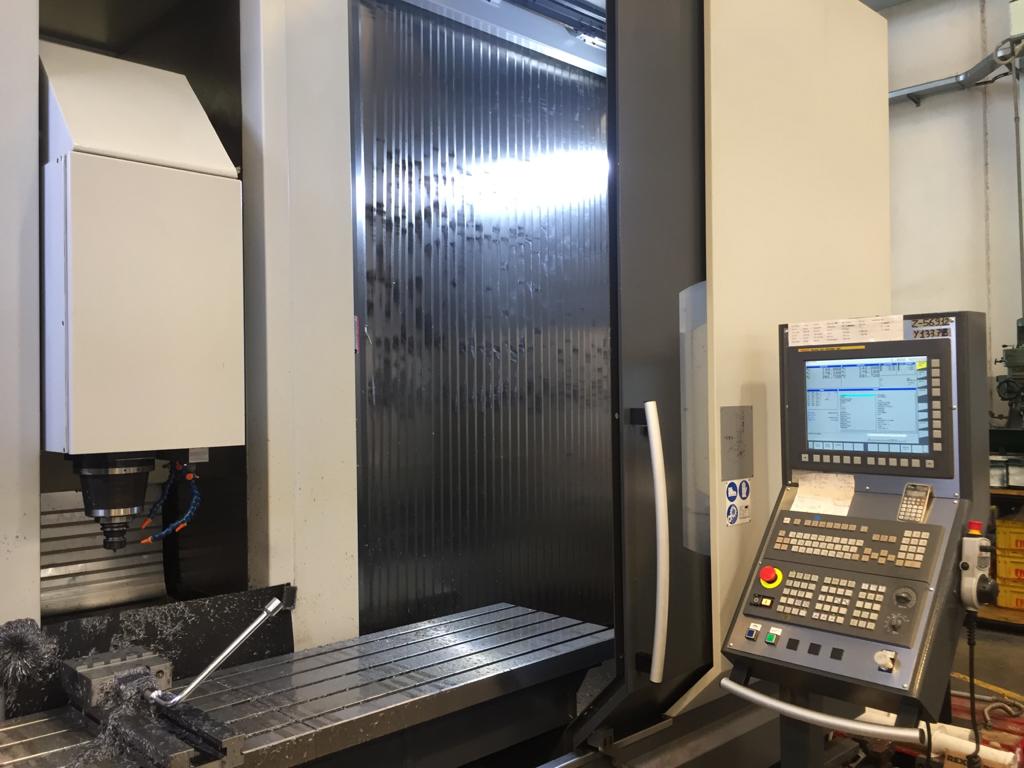

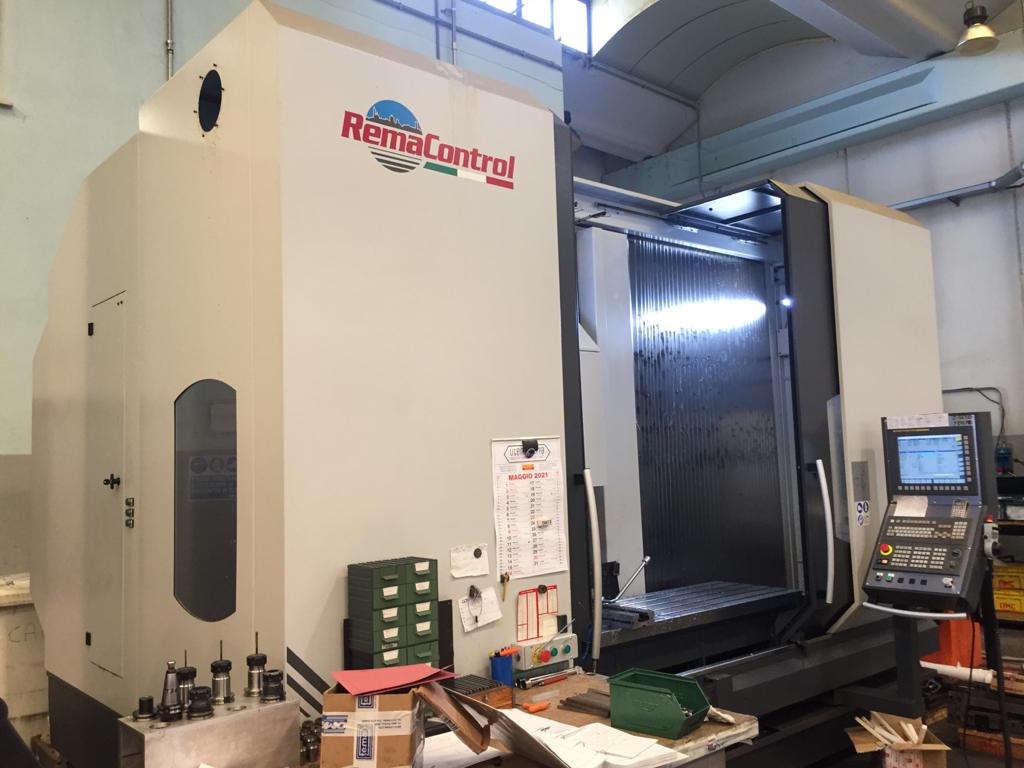

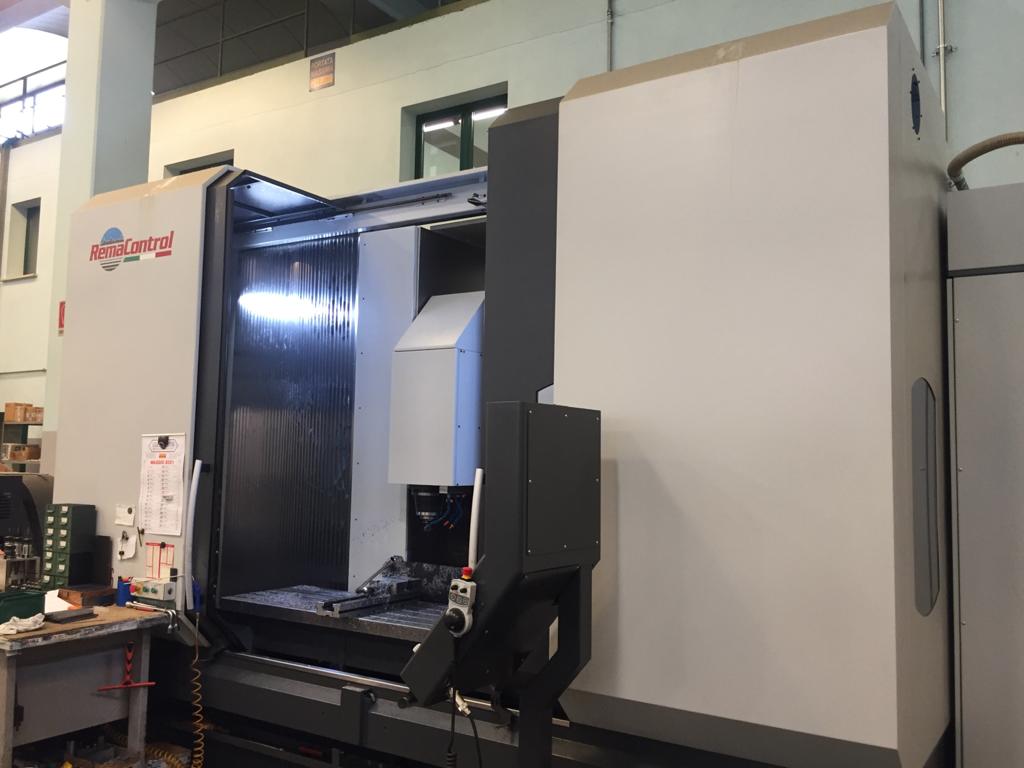

CENTER REMA CONTROL
Single pallet
08946
MOD. NEWTON NT 3 20

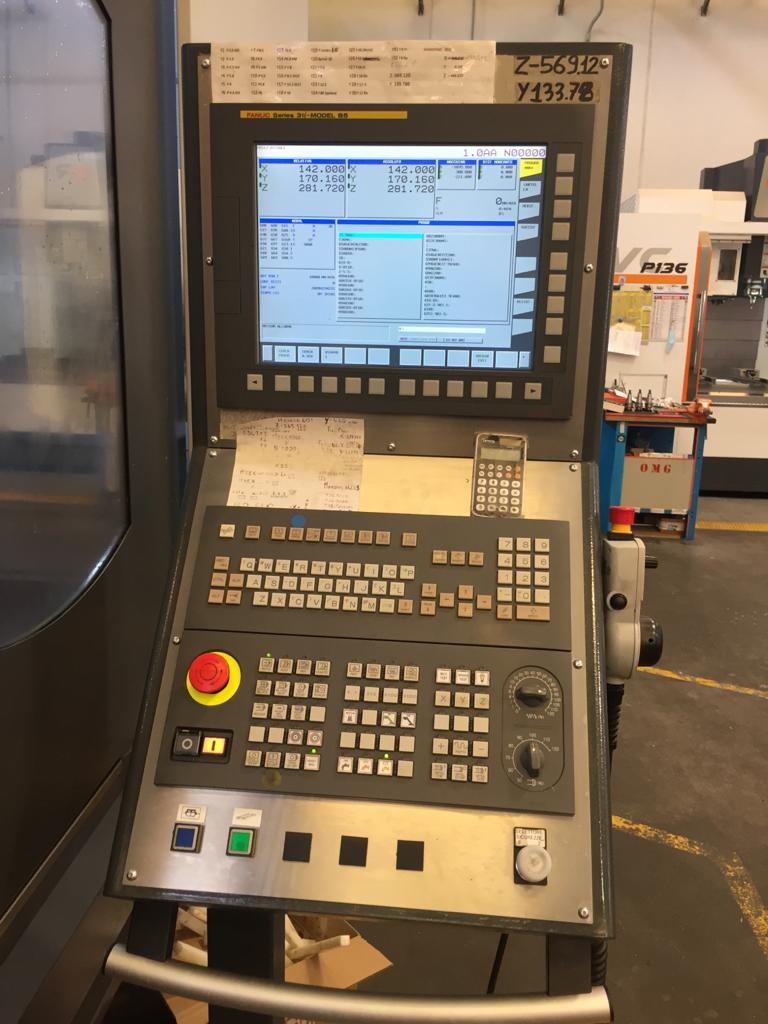

CNC FANUC 31i with remote handwheel

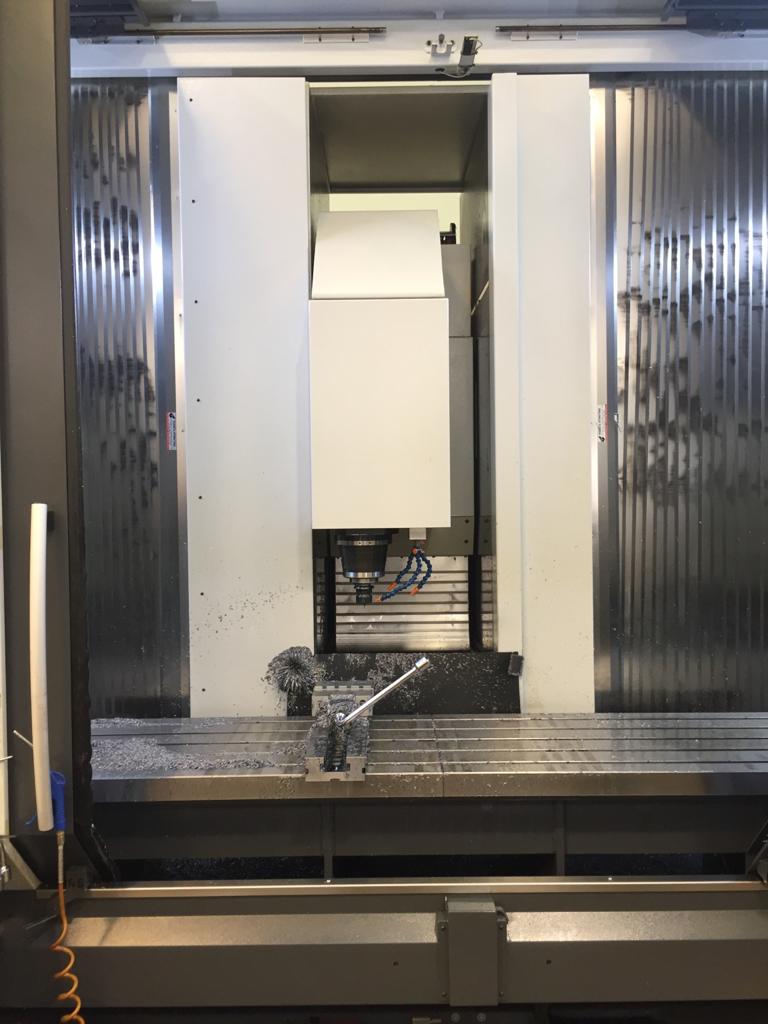

WORKING CAPACITY:
Table dimensions mm 2100x540
T-slots (width x quantity x pitch) 18x5x100 mm
Max load on the table Kg / m2 900
AXIS TRAVEL:
X axis travel 2000 mm
Y axis travel 600 mm
Z axis travel 500 mm
X axis commuter travel 2x765 mm
Rapid X,Y and Z axes mm/min 50.000
Working axis feed mm/min 0-15.000
Distance between table top and spindle nose 170-670 mm
SPINDLE:
Spindle taper ISO 40
Spindle rotation speed rpm 10,000
Rigid tapping up to 4000 rpm
Power 30 min./continuous kW 22
Torque Nm 140

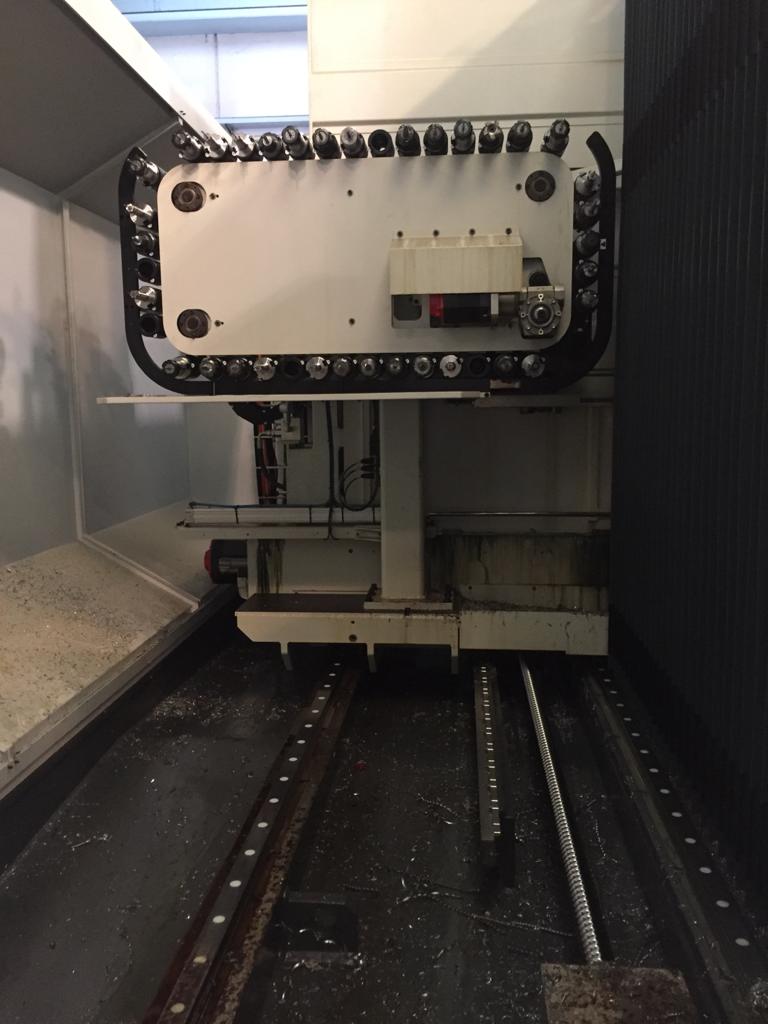

TOOL CHANGE AND MAGAZINE:
Tool magazine n.40
RANDOM tool selection
Tool holder ISO 40
Max tool diameter:
-empty adjacent posts 75 mm
-free adjacent posts 125 mm
Max tool length 300 mm
Max tool weight Kg 4
Tool change time from tool to tool sec. 2
Tool change time from chip to chip sec. 6
DIMENSIONS AND WEIGHT:
Height 2955 mm
Width mm 6180
Depth 2910 mm
Weight Kg 9000
POWER REQUIRED:
Power required kVA 30
COMPLETE WITH:
-Bulkhead for commuter work
-High pressure through the spindle
USED MACHINE
YEAR 2016
FILL OUT OUR FORM FOR MORE INFORMATION
