CENTER ZPS MOD. MCFV 2080 NT
Single pallet
08879

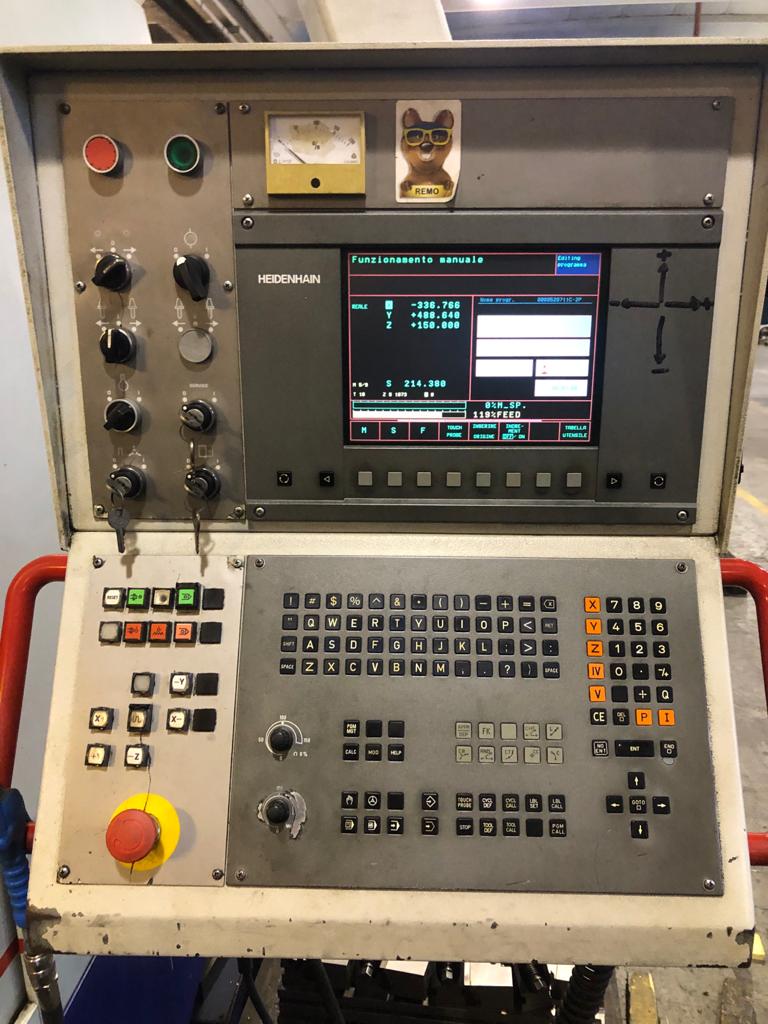

CNC HEIDENHAIN TNC 426 M
TABLE:
Table dimensions mm 2200x780
T-slots number x width mm 5x18
Distance between T-slots cave mm 150
Max load Kg 2010
AREA DI LAVORO:
Axis X stroke mm 2030
Axis Y stroke mm 810
Axis Z stroke mm 810
DISTANCE:
Distance spindle nose to table mm 110-920
Distance spindle axis to column mm 850
Distance spindle axis to front machine mm 990
Working table to floor mm 1000
FEEDS:
Working feed (X,Y,Z) m/min 0-20
Rapid feed (X,Y,Z) m/min 20
SPINDLE :
Spindle motor power (continuous/30 min) kW 17/20,5
Spindle speed rpm 30-6000
Tool cone SK 50
TOOL MAGAZINE:
Tool magazine 16 positions
Max tool lenght mm 300
Max tool diameter (adjacent pocket/empty) mm 130/220
Max tool weight Kg 12
MACHINE WEIGHT AND DIMENSIONS:
Machine weight Kg 11600
Overall dimensions machine mm 4820x2440
Max working height of the machine mm 3700
Absorbed power kVA 35
EQUIPPED WITH:
-High pressure through the spindle
-Chip conveyor
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
