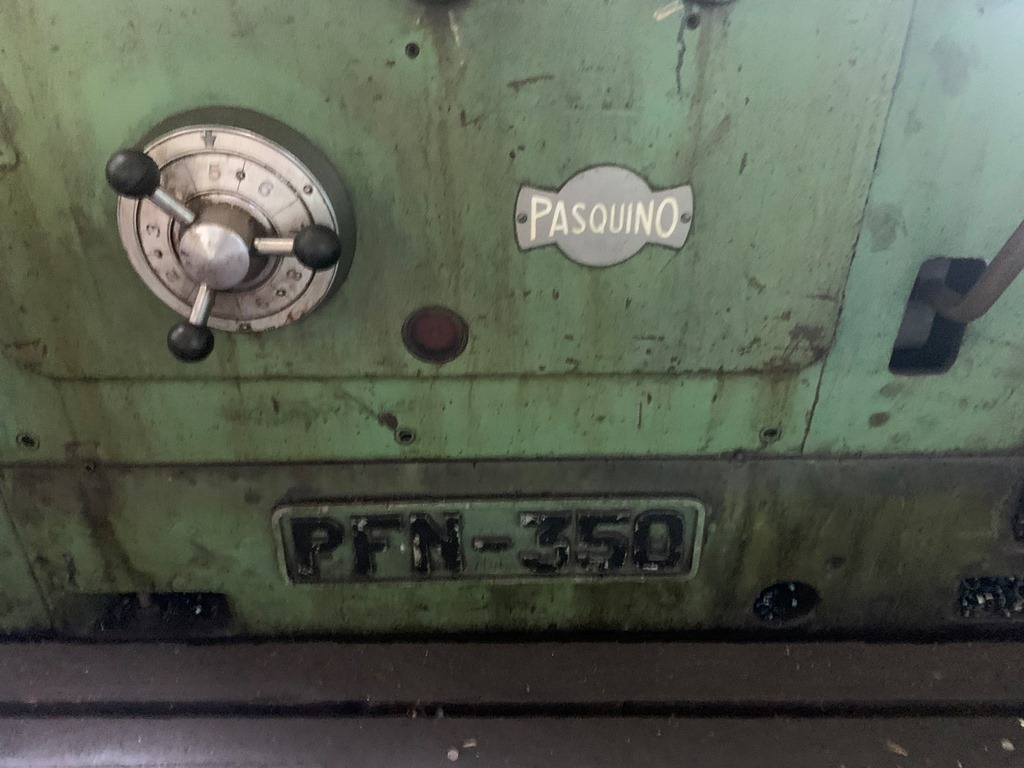

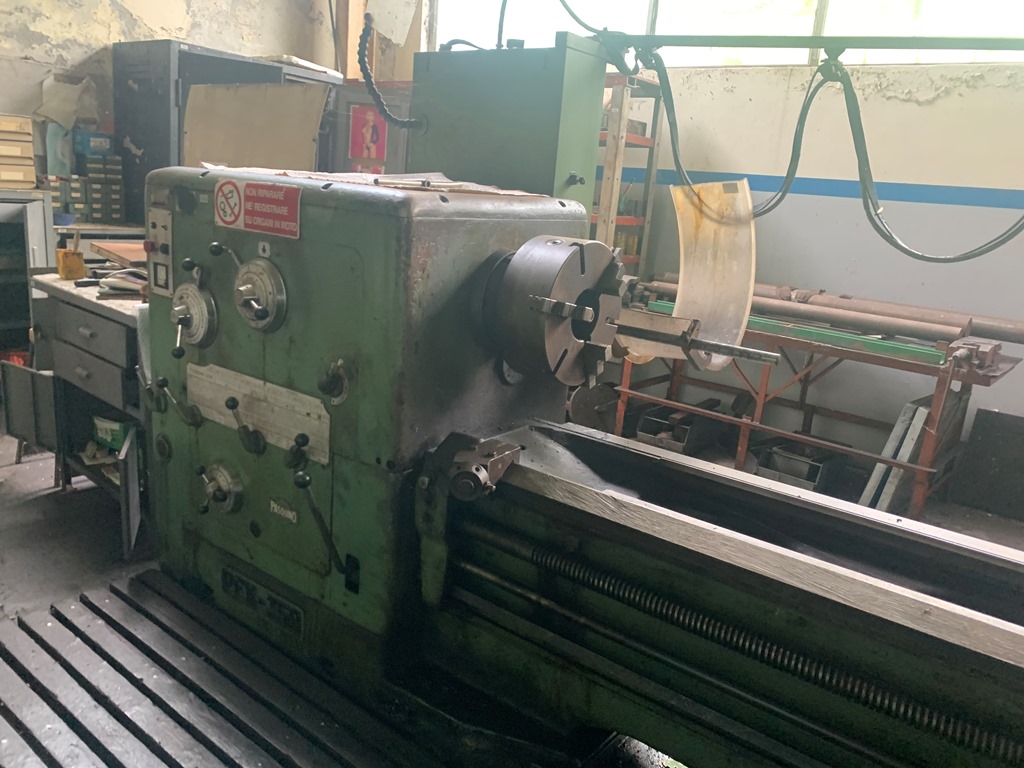

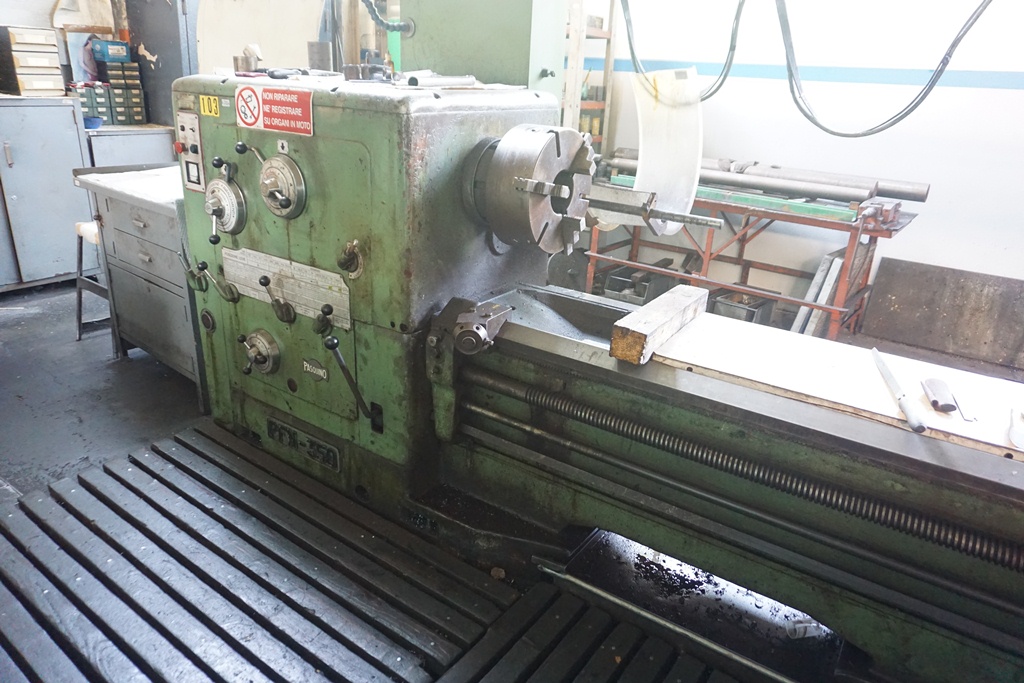

LATHE PASQUINO PFN 350x6000
Diameter over 800 mm
lathe conventional - Used Machines
PASQUINO
07442
07442
Center height mm 360
Turning diameter on the bed 725 mm
Turning diameter on the gap 760 mm
Turning diameter in the gap mm 1000
Turning diameter on the cross carriage mm 480
Distance between centers mm 6000
Bed width mm 500
Spindle bore mm 81
Top slide stroke mm 260

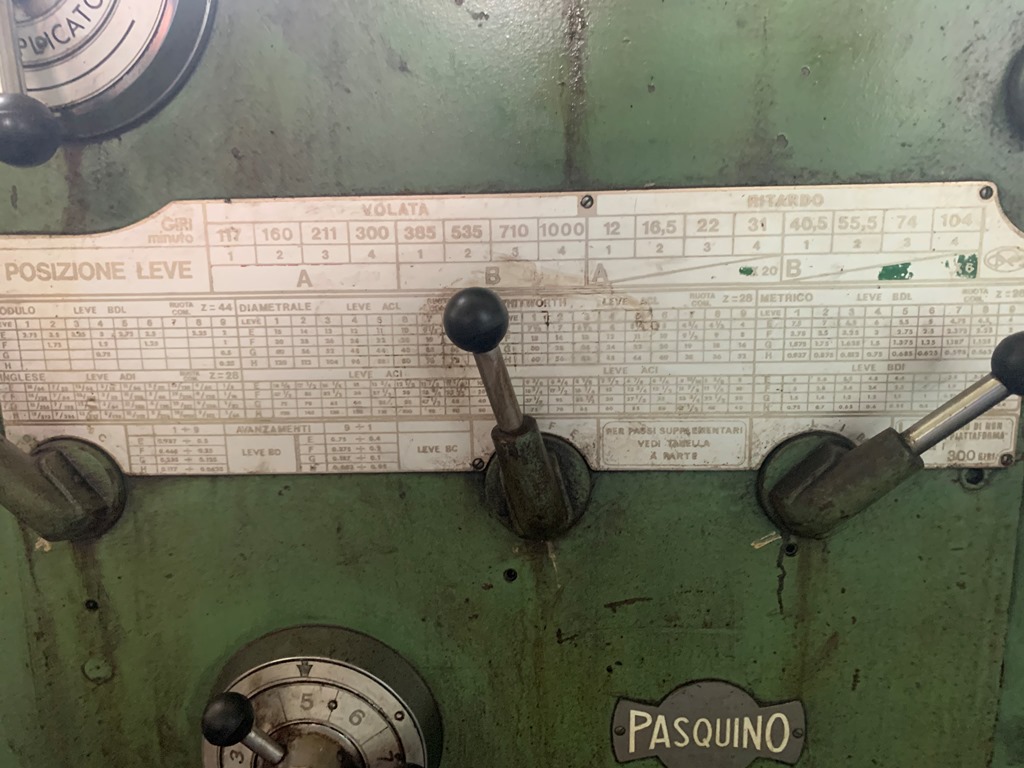

Spindle speed n.16 / rpm 12:1000
Tailstock quill diameter 100 mm
Tailstock Cone Morse N.5
Tailstock stroke 250 mm
Main motor power HP 20
Approx weight Kg 8850
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
