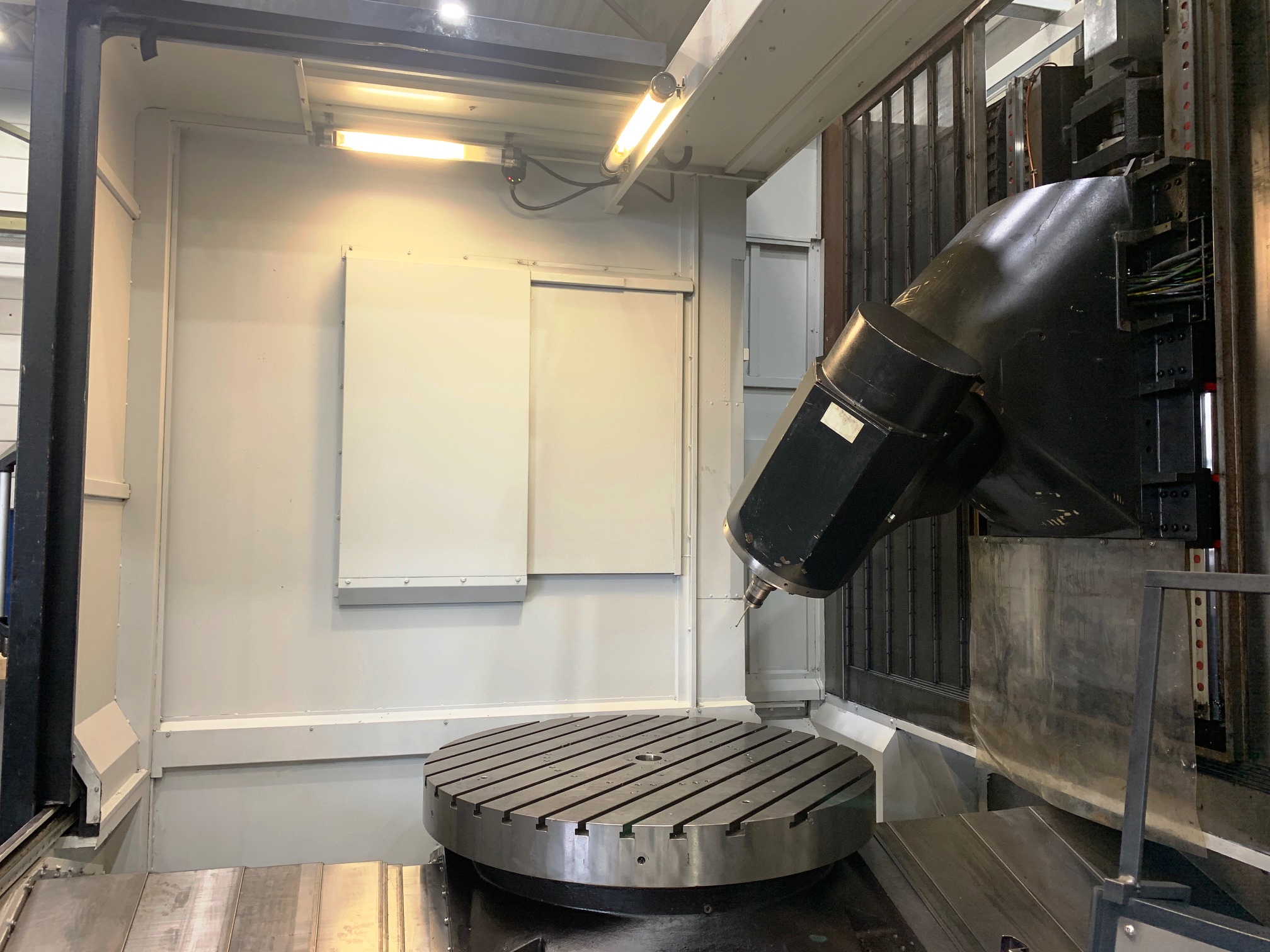

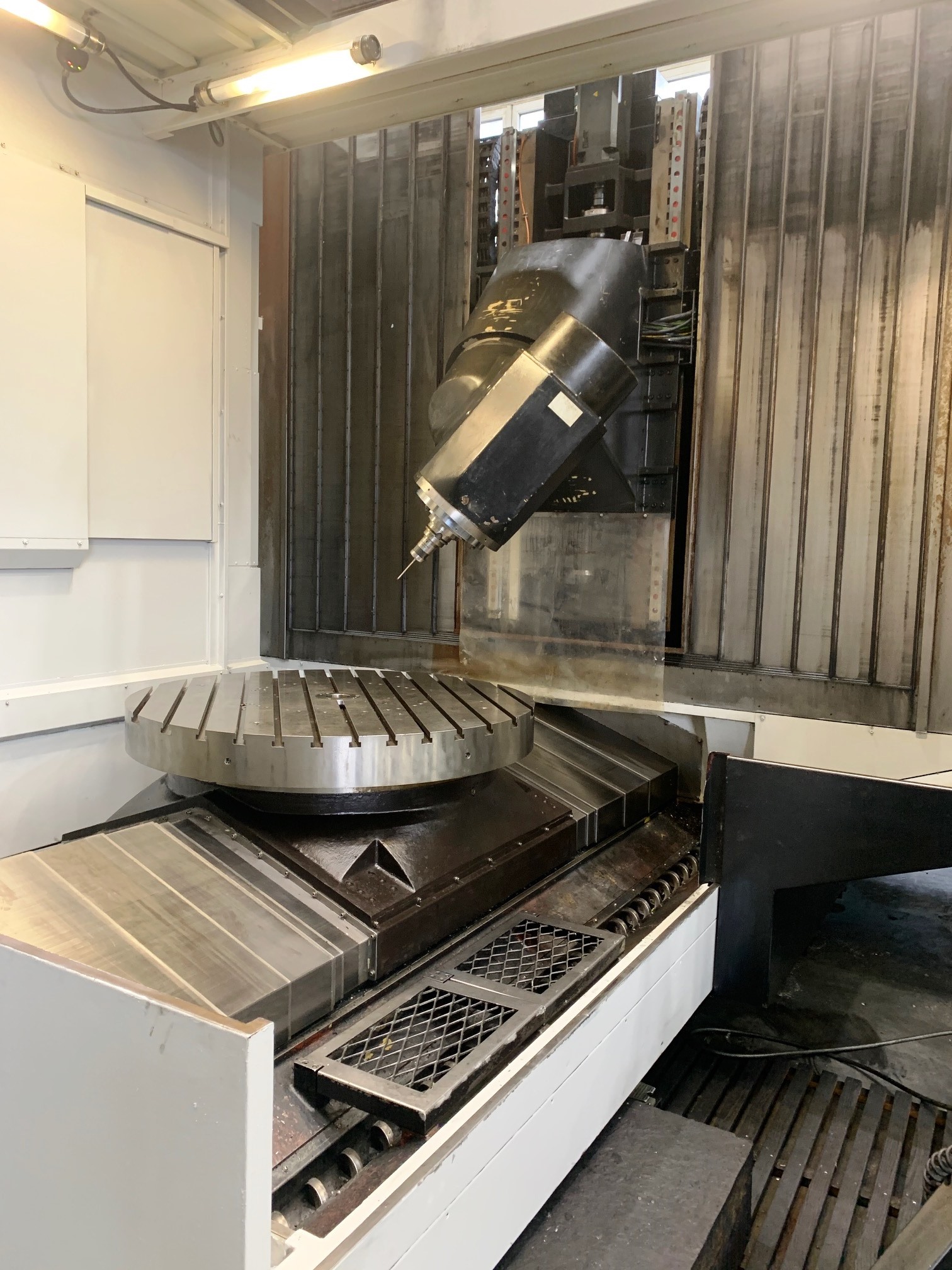

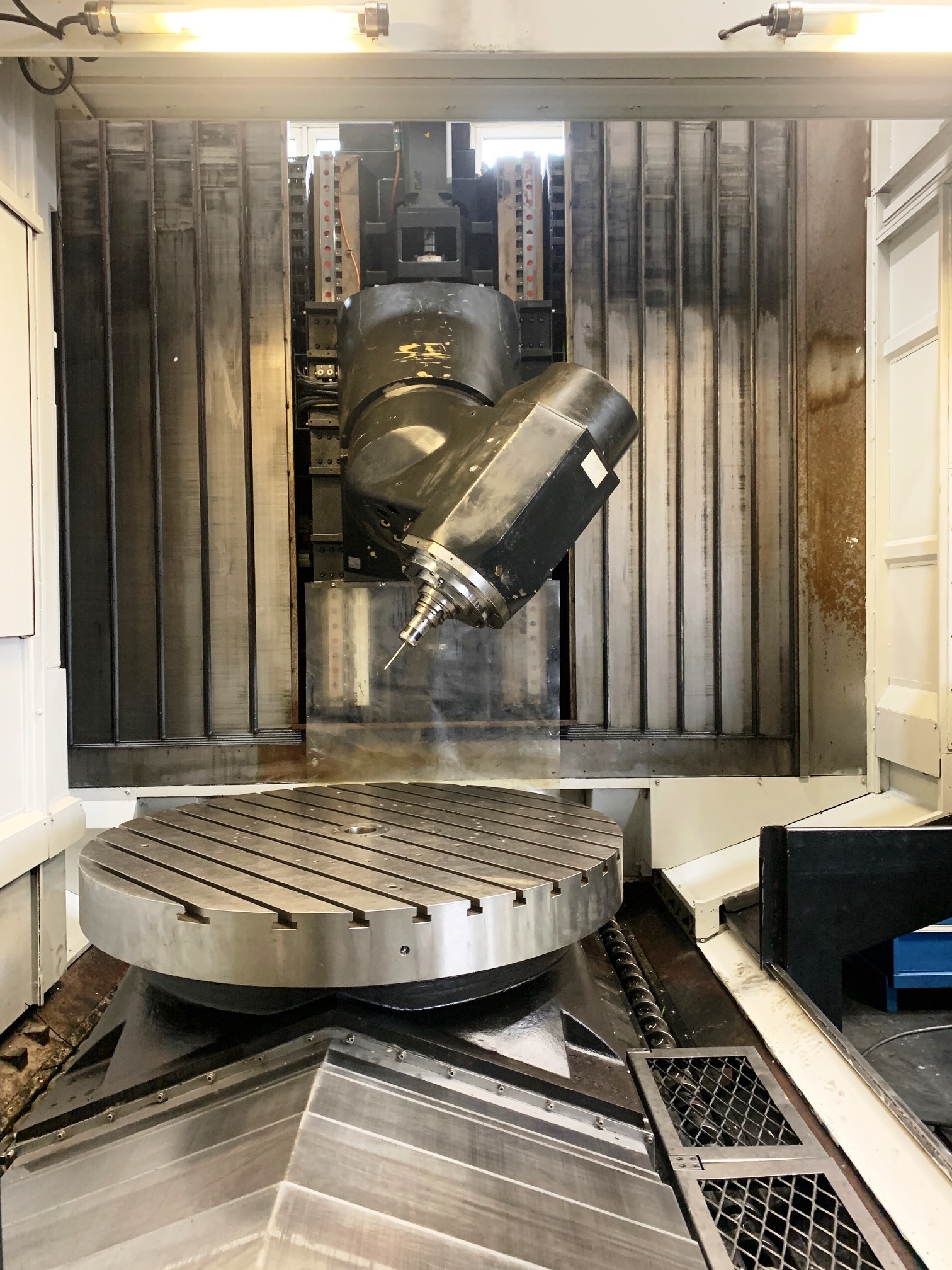

CENTER EUMAC POWERMILL UMC-1600
VIDEOS:
08557
5 AXIS SIMULTANEOUS
CNC HEIDENHAIN iTNC 530 with remote flywheel

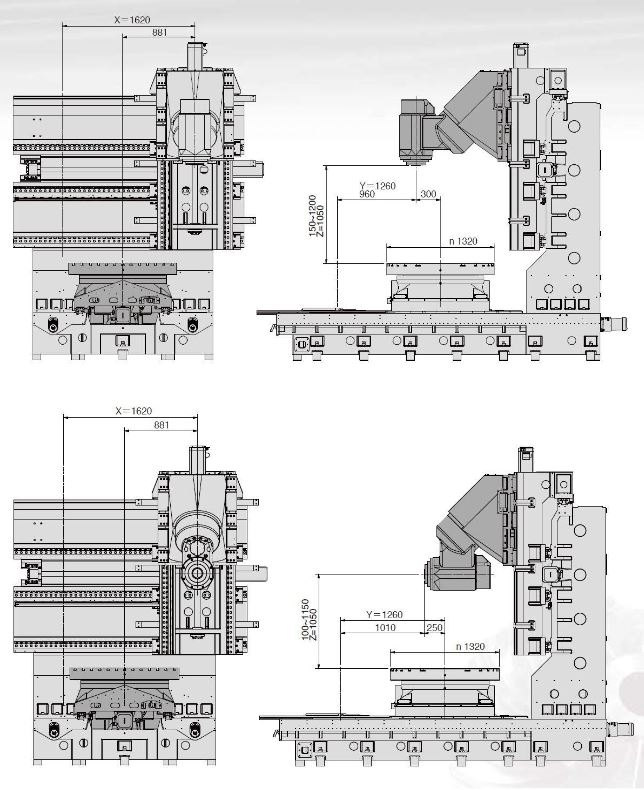

TRAVELS:
X axis travel mm 1620
Y axis travel mm 1260
Z axis travel mm 1050
Distance spindle/table nose mm 200-1250
ROTARY TABLE:
Rotary diameter 1320 mm
Distance table/floor mm 1085
Speed rpm 50 rpm
Max table capacity 4000 Kg
Indexing ASSE-C degrees 0.001x360.000
UNIVERSAL HEAD AXIS-B:
Rotation angle degrees +10 -190
Positioning accuracy +/- 2 ''
SPINDLE:
Motor power S1/S6 38/45 Kw
Max torque S1/S6 Nm 200/428
Spindle speed rpm 8000
Taper HSK 100
SPEED:
X,Y and Z rapid feed m/min 24
Working speed mm/min 20,000
TOOLS MAGAZINE:
Tools number 60
Max tool length 350 mm
Max tool diameter 150 mm
Max tool weight 20 Kg
Tool taper HSK 100
OVERALL DIMENSIONS AND WEIGHT:
Length mm 5134
Width mm 4900
Height mm 4095
Weight Kg 32.000
Required power KVA 100
EQUIPPED WITH:

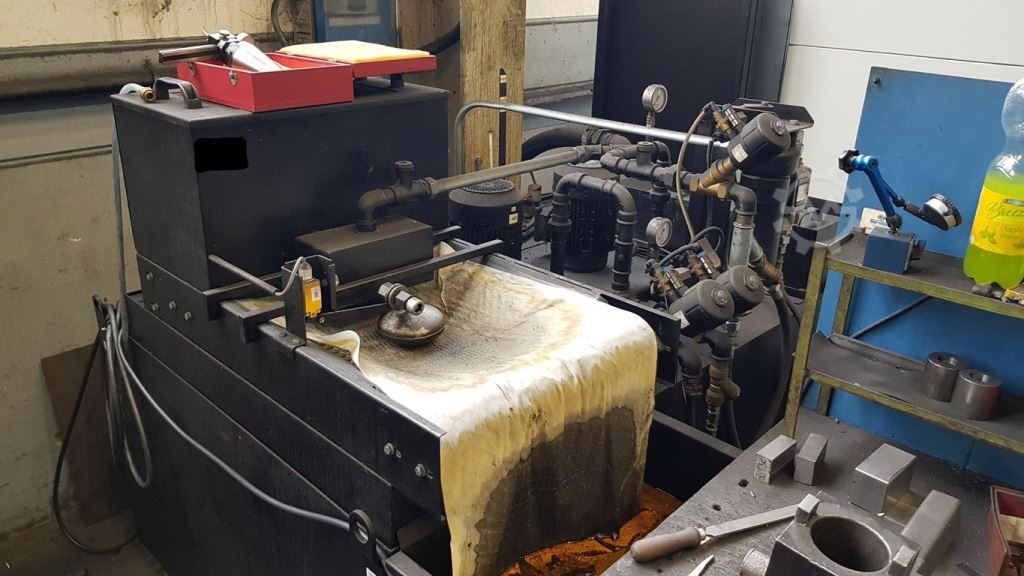

- High pressure with paper filter
- Chain chip evacuator
USED MACHINE
YEAR 2013
VIDEOS:
