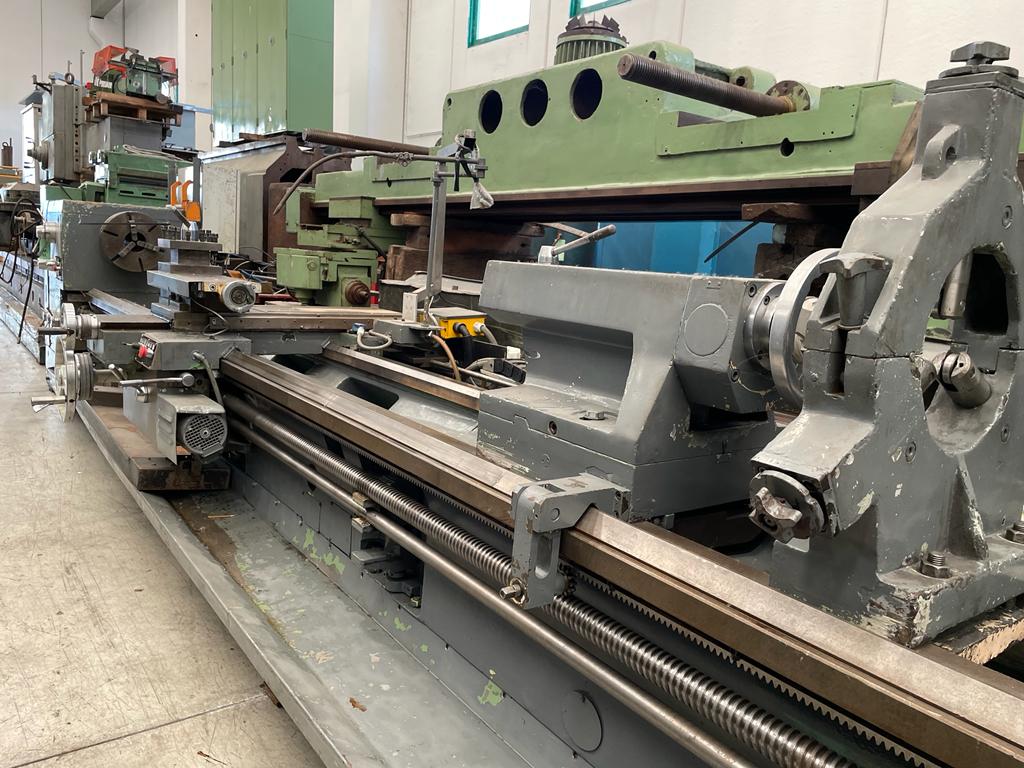

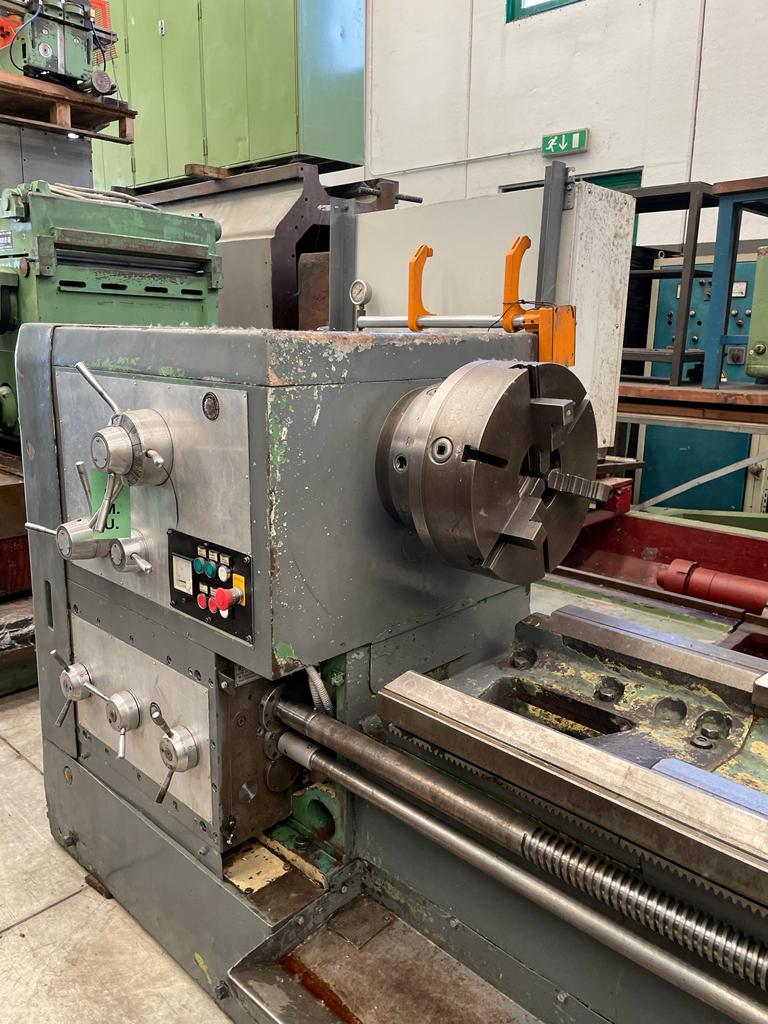

LATHE SARO 355X5000
Diameter between 600 e 800 mm
lathe conventional - Used Machines
.jpeg)
.jpeg)
SARO
08219
08219
MOD. SPA 710
height center mm 355
Turning Diametr on bed mm 710
Turnig Diametro on carriage mm 505
Turning Diametro on gap mm 950
Distance between center mm 5000
CAMLOCK C11
spidle bore mm 105
spindle speed N. 23 - rpm 8-1250
carriage stroke mm 400
upper carriage stroke mm 175
Quill Diameter mm 100
Tailstock stoke mm 300
Tailstock C Morse 6
Power main motor22 kw
weight Kg 8000
Equipped with :
-Self center spingle diam. mm 380 DG 3+3+3
-Fixd Steady rest diam. mm 200
-Plateau diam. mm 500
USED MACHINE
