LATHE BIGLIA MOD. B565/B
2 axis
lathe cnc - Used Machines
.jpg)
.jpg)
.jpg)
.jpg)
VIDEOS:
BIGLIA
08339
08339

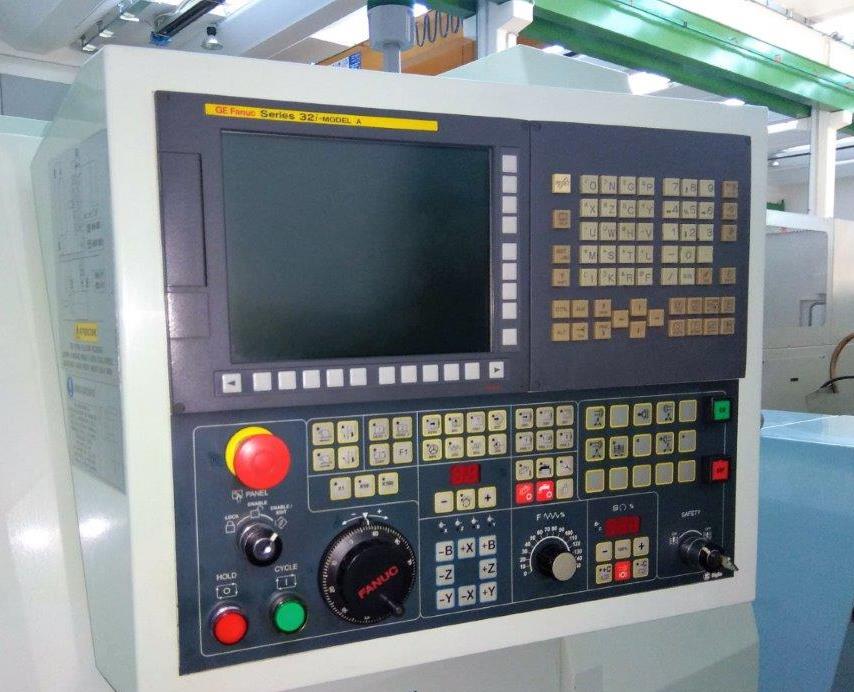

CNC FANUC 32i
CAPACITY:
MAX SWING DIAMETER 580 mm
MAX TURNING LENGTH 560 mm
MAX TURNING DIAMETER 290 mm
BAR CAPACITY 65 mm
SPINDLE:
SPINDLE SPEED 4000 rpm
SPINDLE TAPER ASA 6''
SPINDLE BORE 76 mm
SPINDLE MOTOR POWER 22-26 kW
TRAVELS:
X-AXIS TRAVEL 170 mm
Z-AXIS TRAVEL 560 mm
TURRET:

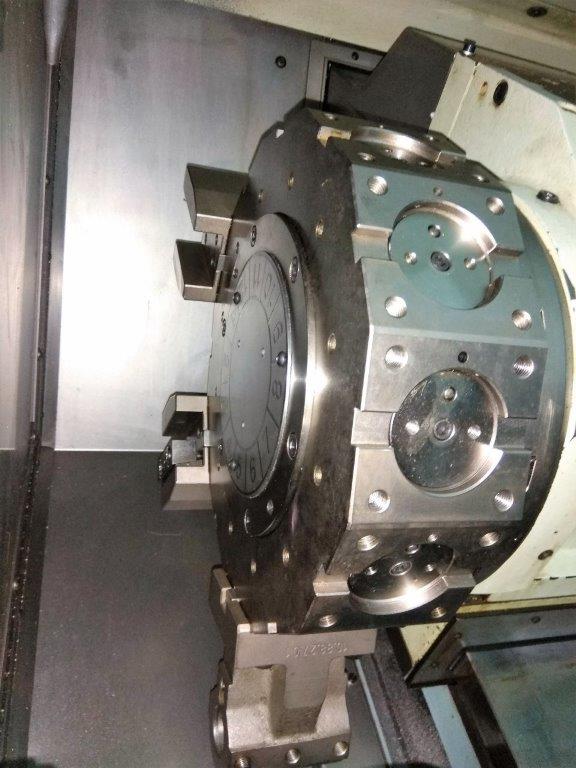

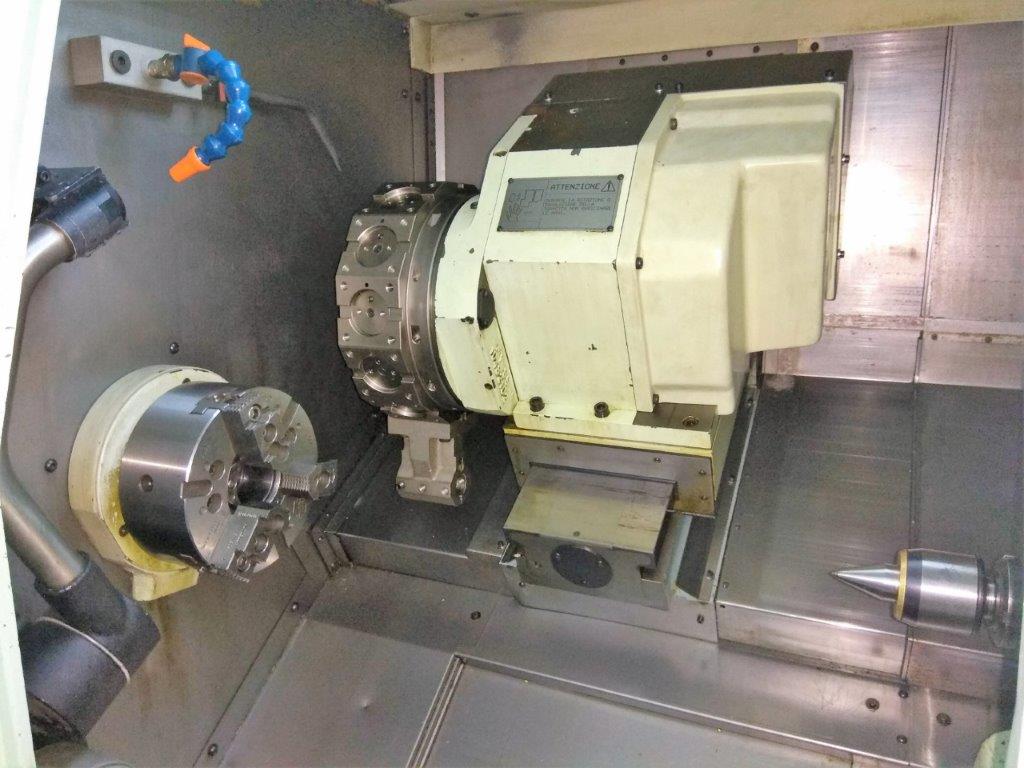

TURRET 12 POSITIONS
OVERALL DIMENSIONS AND WEIGHT:
WEIGHT 4600 Kg
OVERALL DIMENSIONS 4240x2000x1900 mm
EQUIPPED WITH:
-PARTS CATCHER

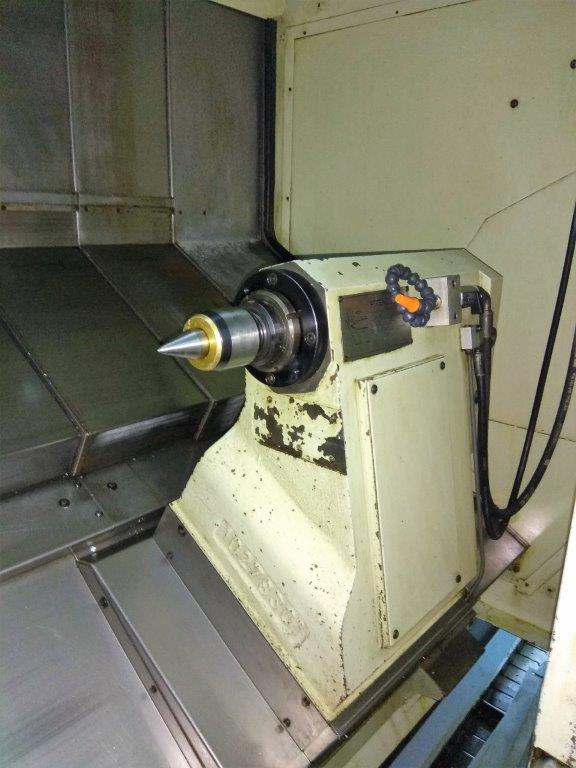

-AUTOMATIC TAILSTOCK
-CHIP CONVEYOR
-TOOL PRESETTER
-ETHERNET PORT
-RS 232 SERIAL PORT
USED MACHINE
YEAR 2010
VIDEOS:
FILL OUT OUR FORM FOR MORE INFORMATION
