LATHE NAKAMURA TOME TMC30-C
2 axis
lathe cnc - Used Machines
NAKAMURA TOME
06029
06029

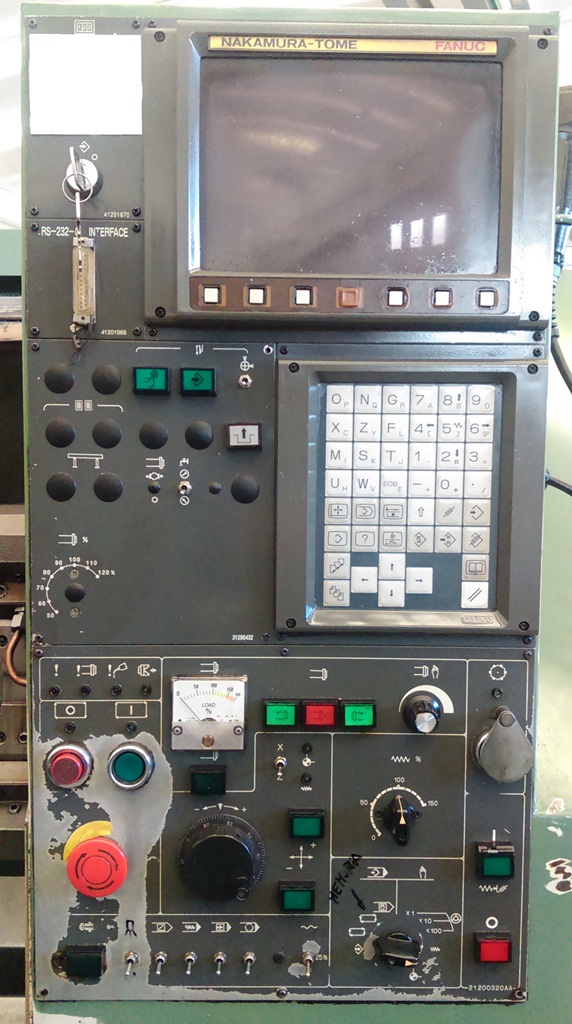

CNC FANUC 21TB
Swing over bed mm 500
Max turning diameter mm 390
Turning diameter on the carriage mm 330
Turning lenght mm 580
Axis X stroke (carriage) mm 215
Axis Z stroke (longitudinal) mm 580
Spindle speed ASA 8
Self-centering chuck diam. mm 250
Bar passaging mm 65
Motor power kW 11/15 (tot. 30 KVA)
Spindle speed rotation rpm 3500
Turret 10 positions
Tools taper VDI
Hydraulic tailstock
Quill tailstock diam. mm 90, corsa mm 100
Quill tailstock taper MT5
EQUIPPED WITH:
-Chip conveyor
USED MACHINE
USED MACHINE

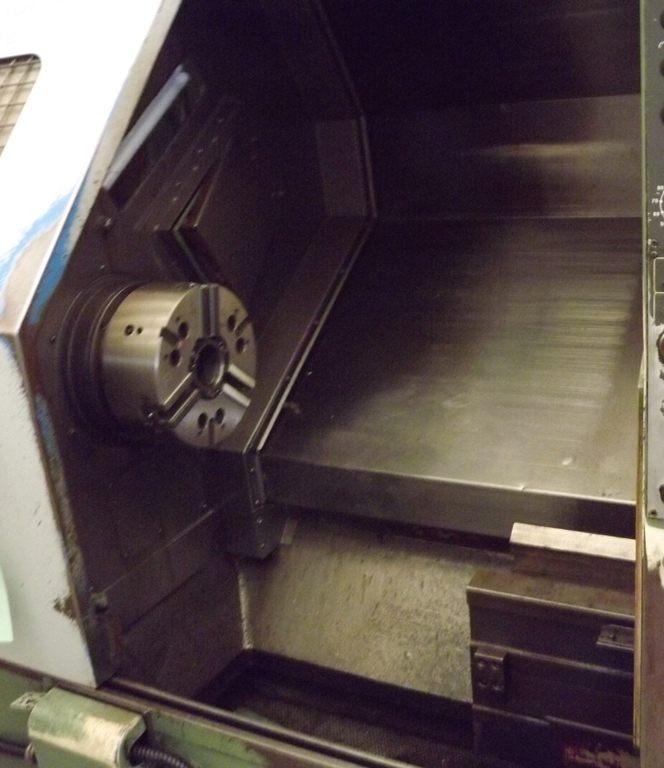

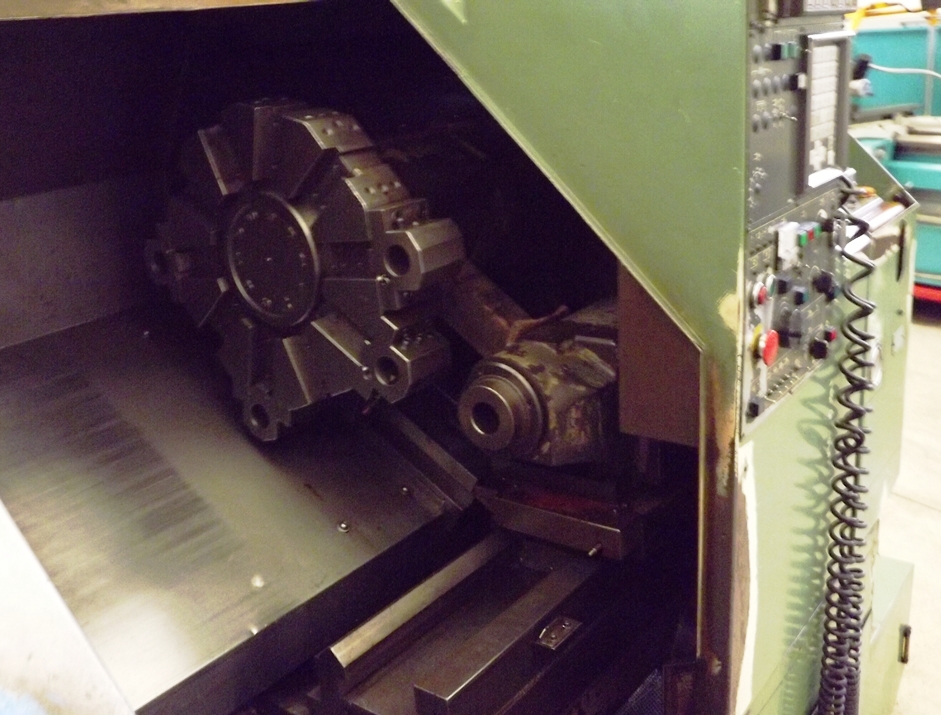

IMAGES:
