CENTER AWEA BM-1200
Single pallet
08245

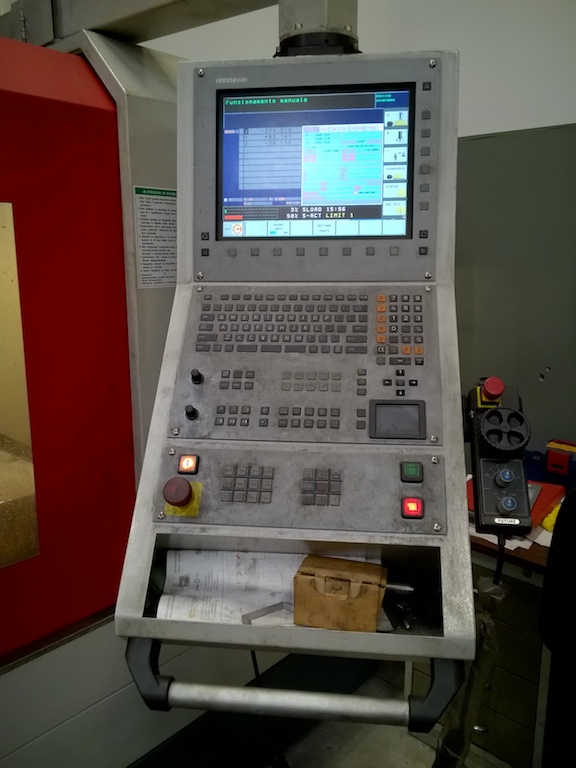

CNC HEIDENHAIN TNC-530
STROKES:
Axis X stroke mm 1200
Axis Y stroke mm 600
Axis Z stroke mm 600
Distance from spindle nose to table mm 125:725
Distance from spindle center to column mm 640

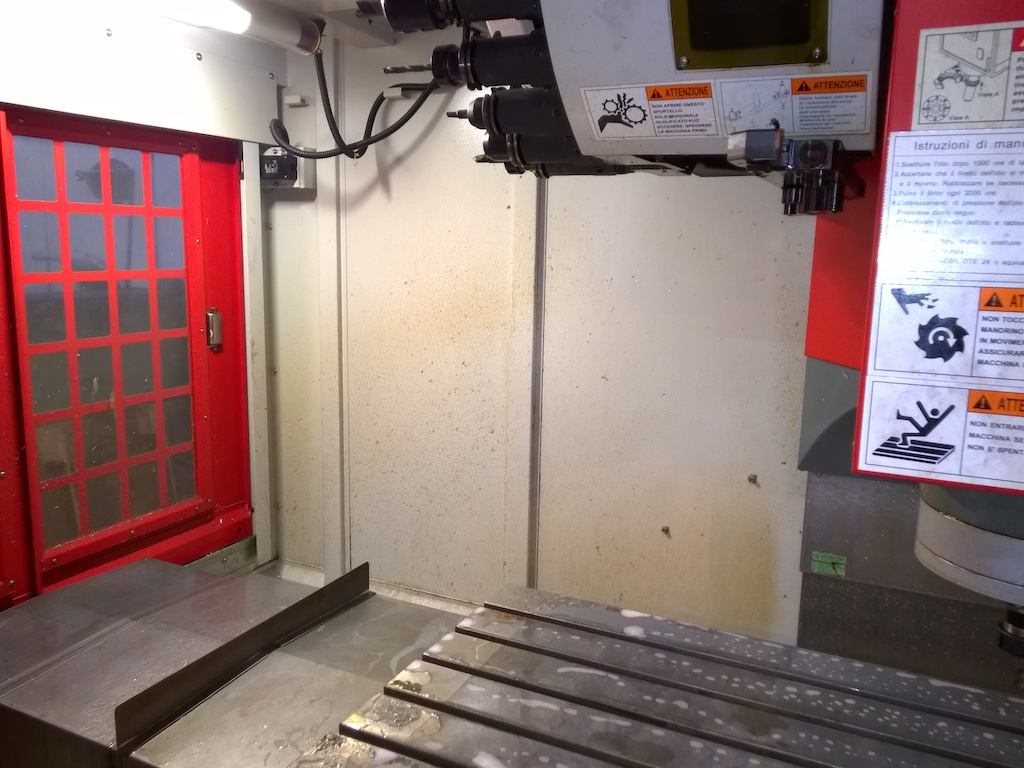

TABLE:
Table dimensions mm 1300x600
T-slots (lwidthxnumber) mm 5x18
Max table load Kg 1200
SPINDLE:
Spindle taper ISO 40
Spindle speed rpm 40-8000
Spindle motor power kW 7,5/11,5

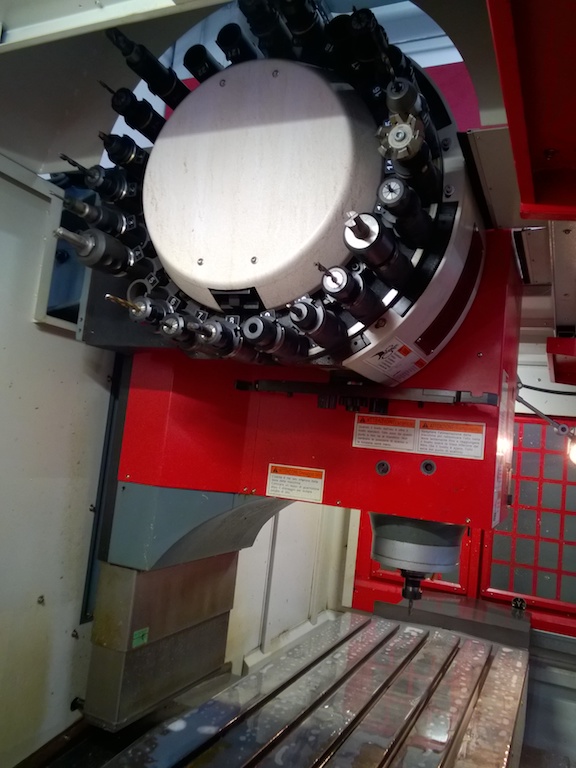

AUTOMATIC TOOL CHANGE:
Tool magazine 20 positions
Max tool diameter mm 90/150
Max tool lenght mm 250
Max tool weight Kg 8
MACHINE WEIGHT AND OVERALL DIMENSIONS:
Totale power requirement kVA 25
Approx. machine weight Kg 7500
Approx. overall dimensions mm 3400x2200x2320H
EQUIPPED WITH:
-High pressure through spindle bar 15
-Chip conveyor
-Chip tray
USED MACHINE
YEAR 2008
FILL OUT OUR FORM FOR MORE INFORMATION
