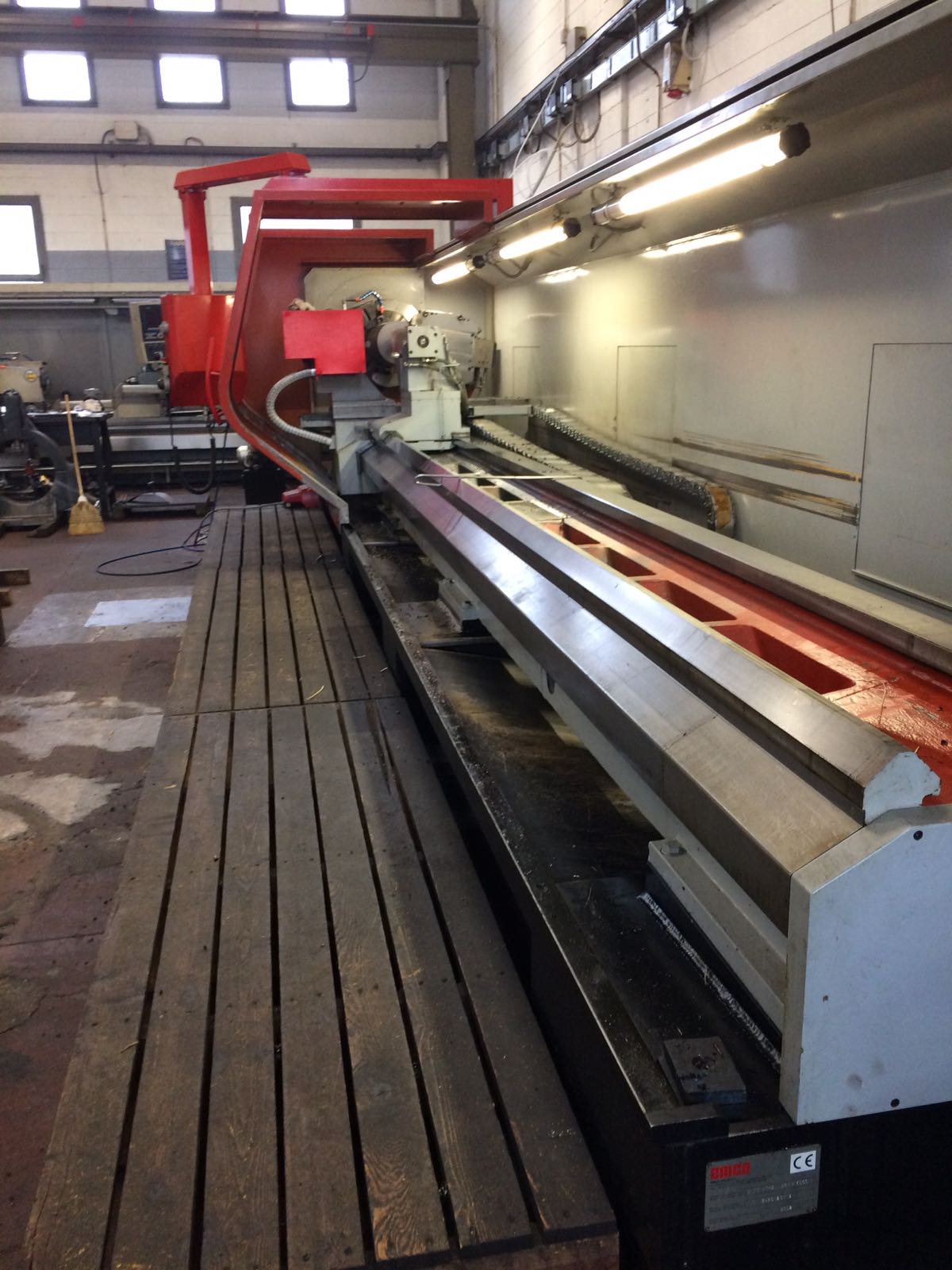

LATHE EMCO EMCOMAT E480x6000
Autoteaching
07977

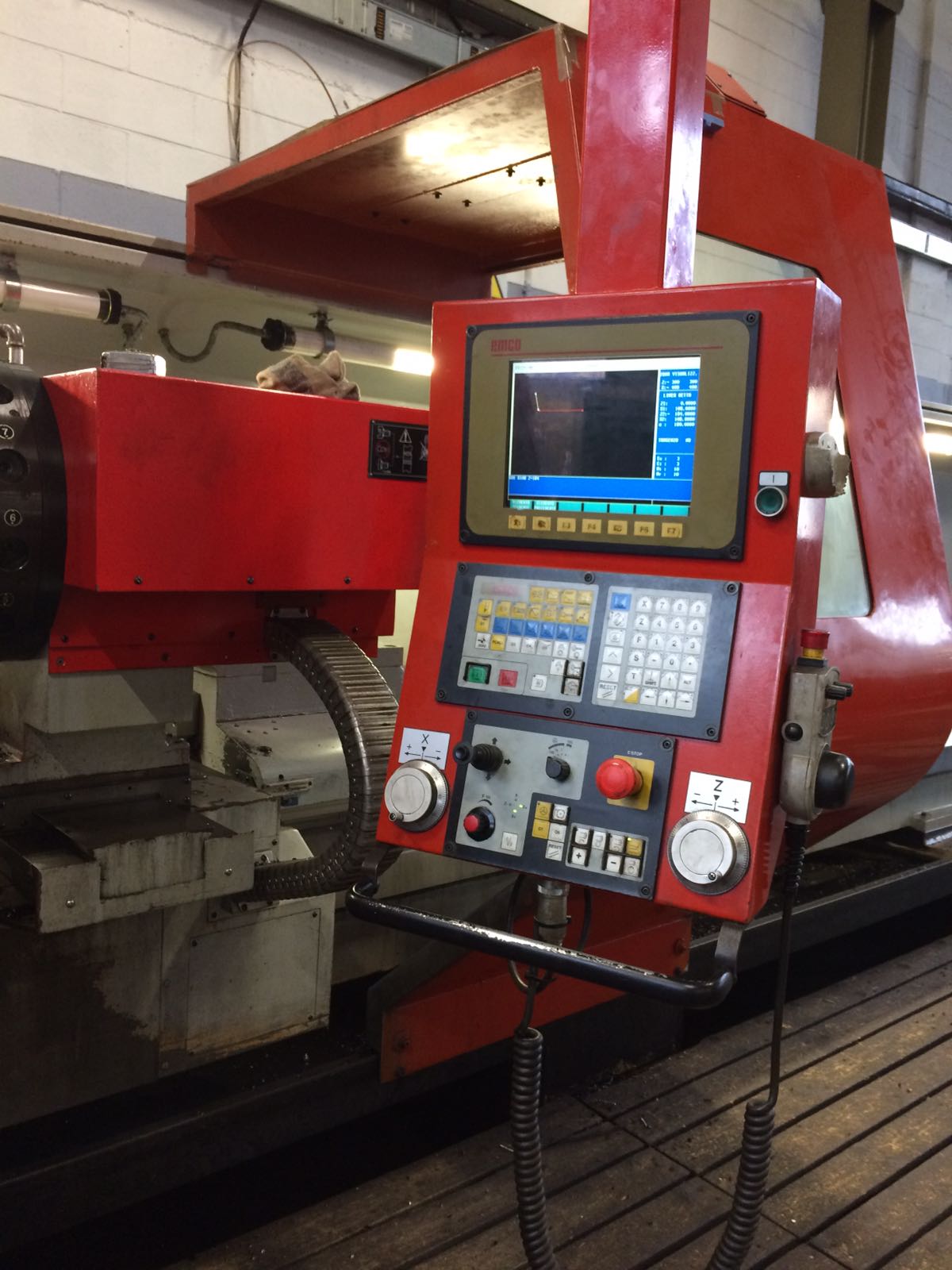

CNC FAGOR
WORKING ARES:
Distance between center mm 6000
Height of center mm 510
Swing diameter over bed mm 1050
Swing diameter over cross slide mm 740
Bed width mm 500
Cross stroke (X) mm 520
Longitudinal axis (Z) mm 6000

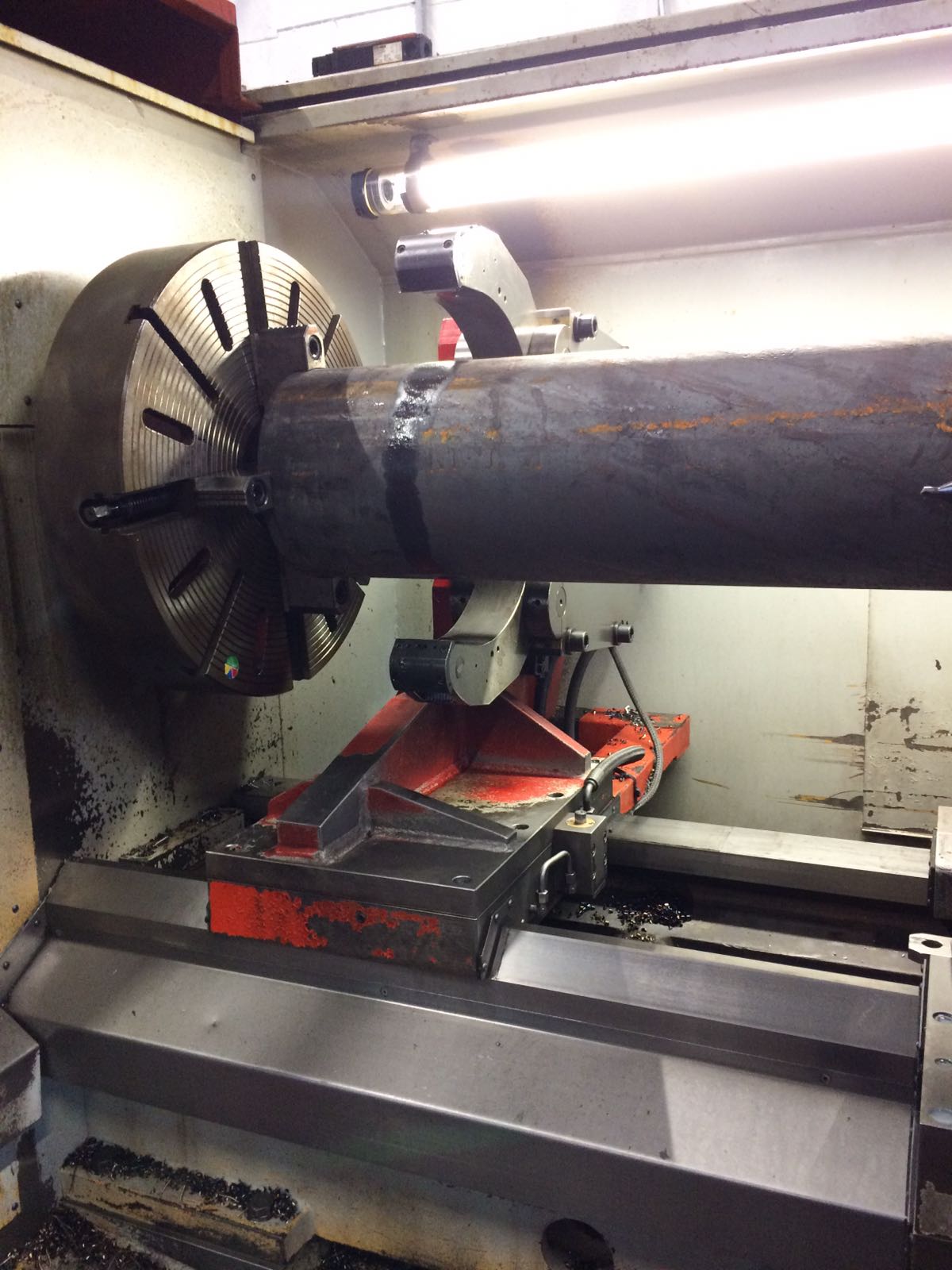

SPINDLE:
Spindle nose Camlock 11''
Spindle bore mm 125
Front bearing spindle diameter mm 190
Spindle speed rpm 0-1200
Spindle motor power 40/100% kW 39/28
TAILSTOCK:
Tailstock diameter mm 120
Tailstock cone MT 6
Quill stroke mm 220
Absorbed power kVA 36
MACHINE DIMENSIONS:
Lenght mm 9100
Width mm 2400
Height mm 2220
EQUIPPED WITH:

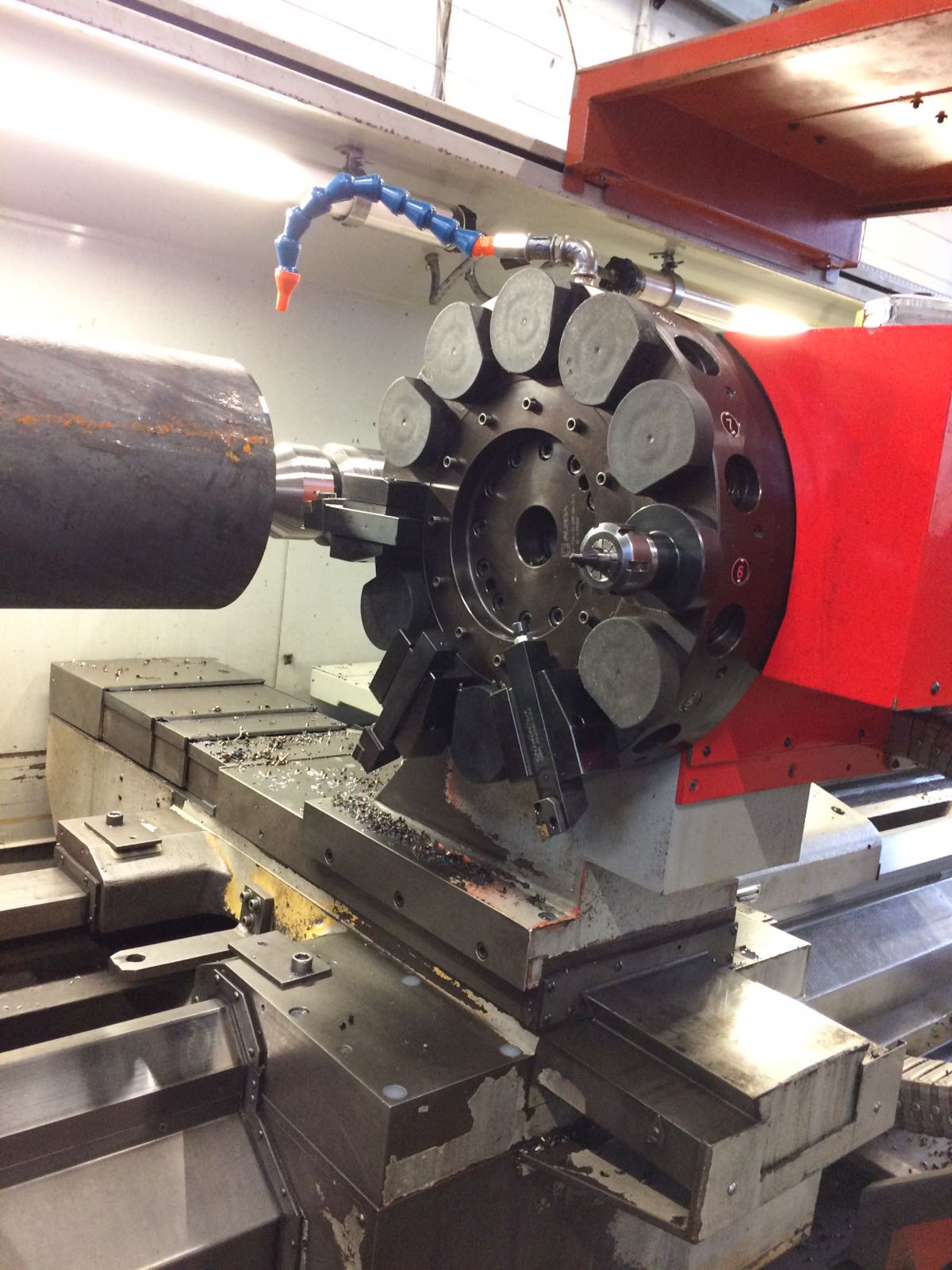

-Turret 12 positions with live tools
-Chip conveyor
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
