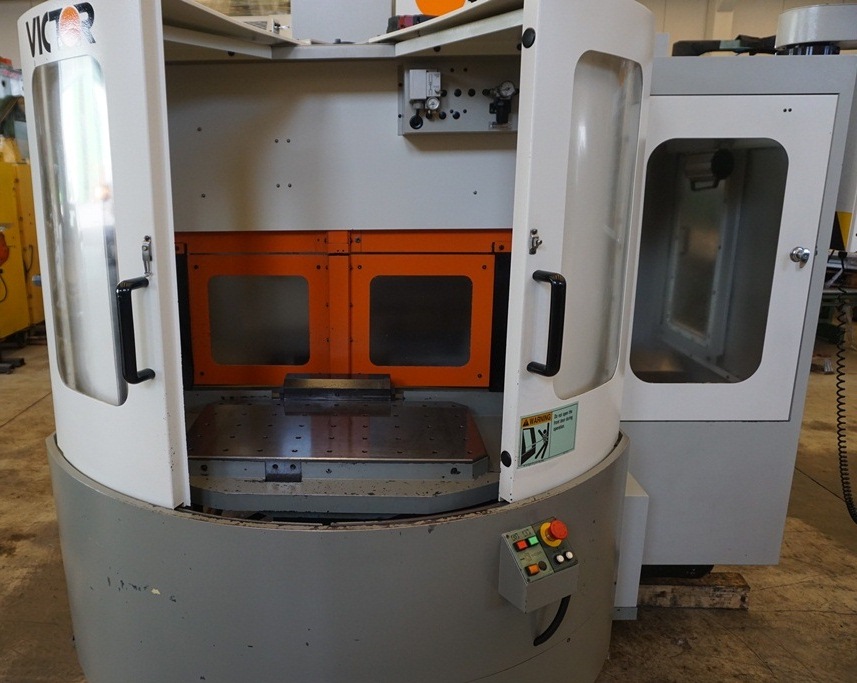

CENTER VICTOR MOD. VCENTER 70 APC
Double pallet
machine center - vertical - Used Machines
VICTOR
07244
07244
ROTOPALLET

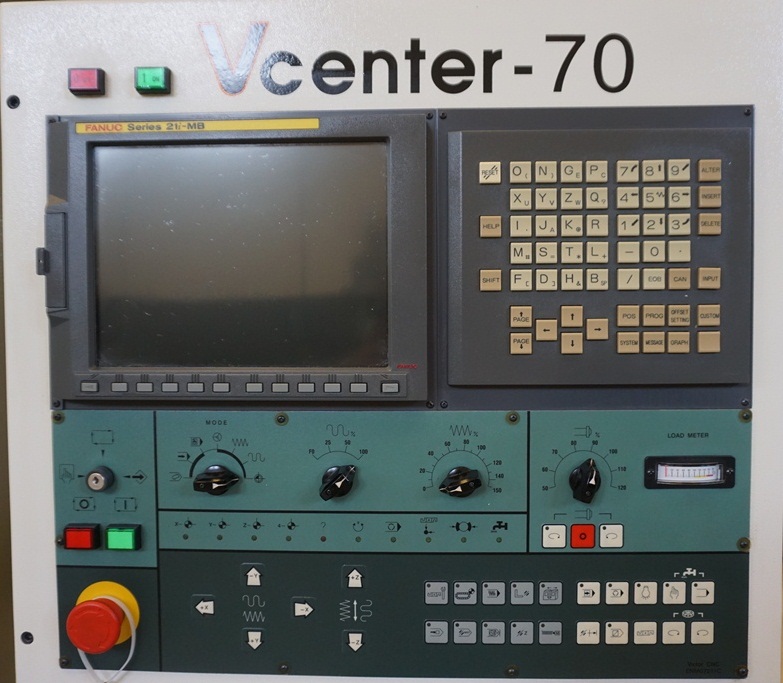

CNC FANUC 21i-MB
STROKES:
-Axis X mm 700
-Axis Y mm 480
-Axis Z mm 510
-Distance between spindle center/column mm 520
-Distance between table/spindle nose mm 80-590

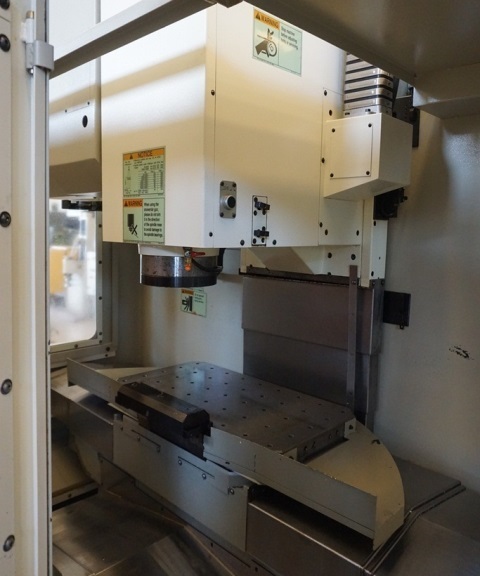

PALLET:
-Pallet dimensions mm 720x400
-Max weight Kg 500
SPINDLE:
-Spindle taper BT-40
-Spindle motor power kW 5,5/7,5
-Spindle speed rpm 8000
TOOLS:
-Max lenght mm 250
-Max weight Kg 7
-Tools magazine n.40 positions
-Max diameter mm 80
-Toolholder taper BT-40
MACHINE:
-Required power kVA 23
EQUIPPED WITH:
-Chip conveyor
-Rigid tapping
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
