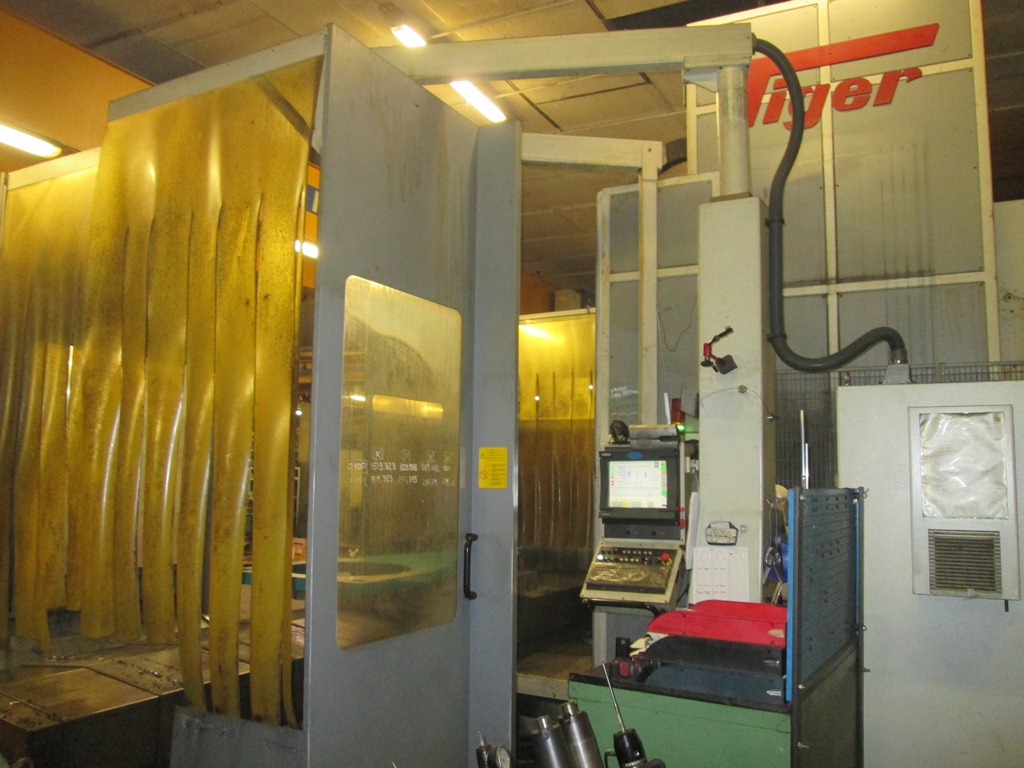

MILLING TIGER MOD. TMT-5RT
With rotary table
06668

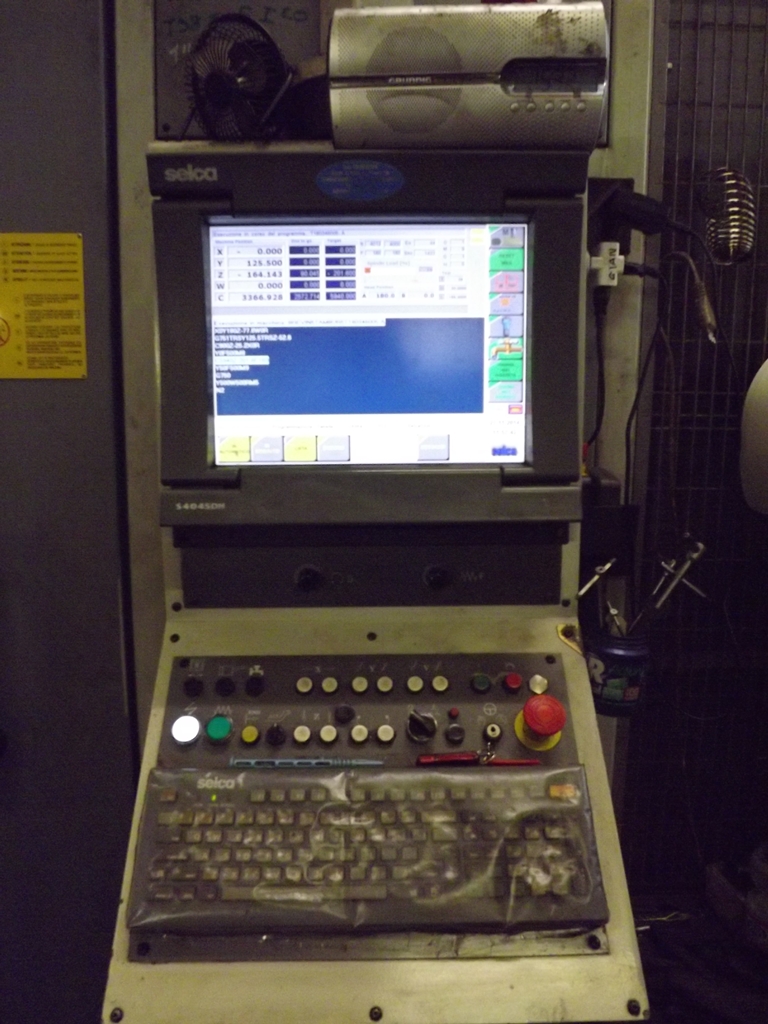

CNC SELCA S4045 DH
Longitudinal stroke X axis mm 3000
Cross stroke Y axis mm 1000
Vertical stroke Z axis mm 2000
Column stroke W axis mm 1000
Speed rotation 6000 rpm
Motor power S1/S6 kW 22/27
Total installed power kW 50
Rolling linear guides
Continuous rotary table - 5th axis mm 1200x1500 with load 10.000 Kg
Probe Renishaw for piece check
Chain type tool magazine 40 positions - ISO 50
Chip conveyor
High pressure through spindle 15 bar

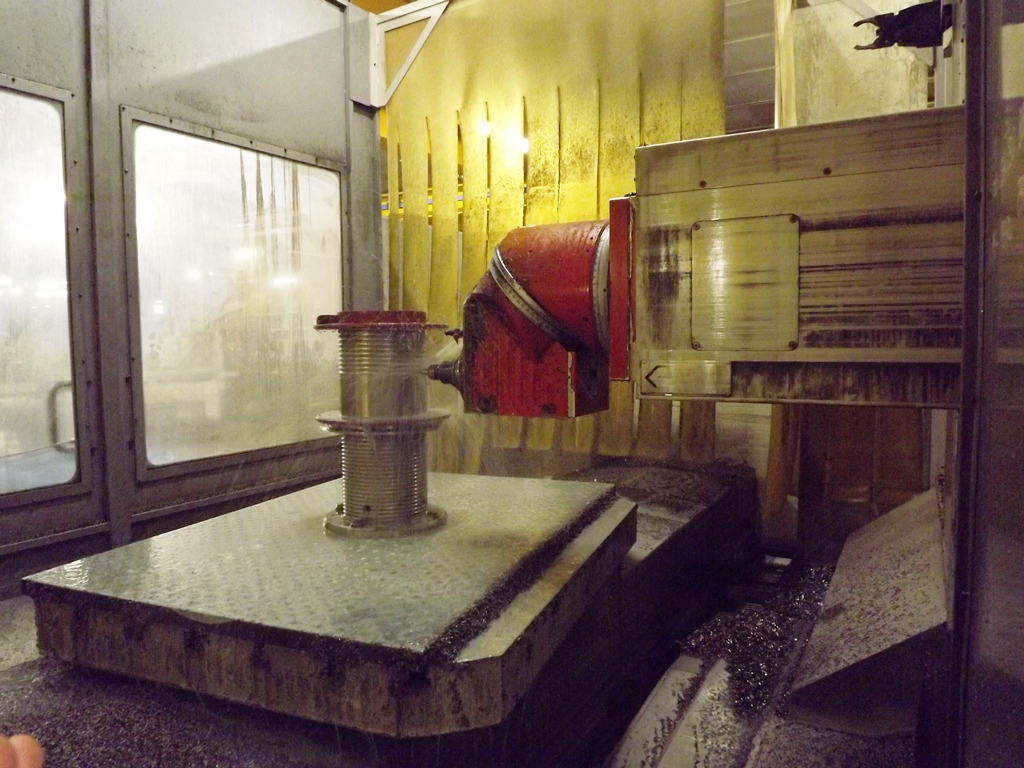

Bi-rotary automatic universal head ISO 50 oil cooled:
- A axis front turning: 1 degree
- B axis back turning: 1 degree
USED MACHINE
YEAR 2008
FILL OUT OUR FORM FOR MORE INFORMATION
