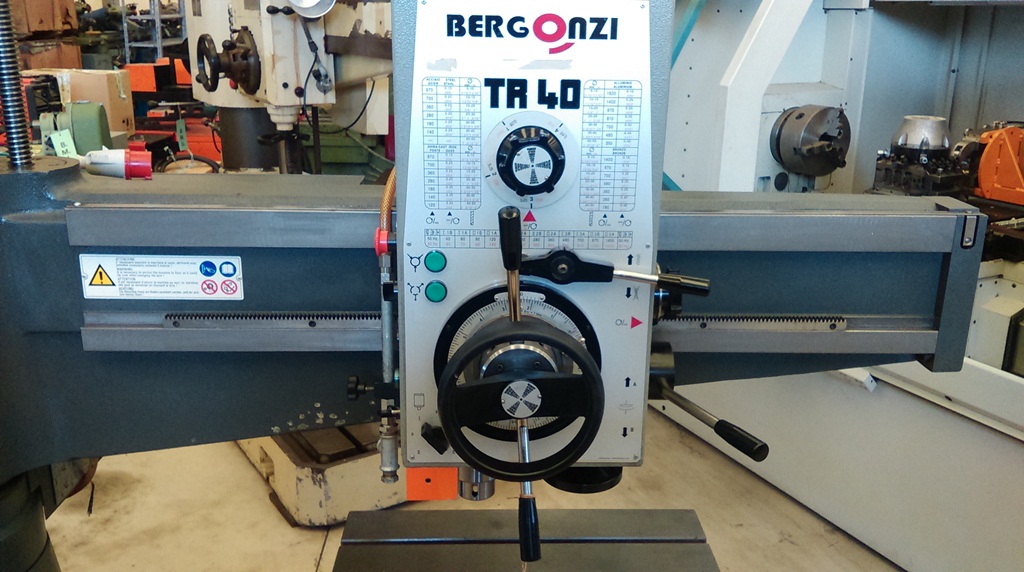

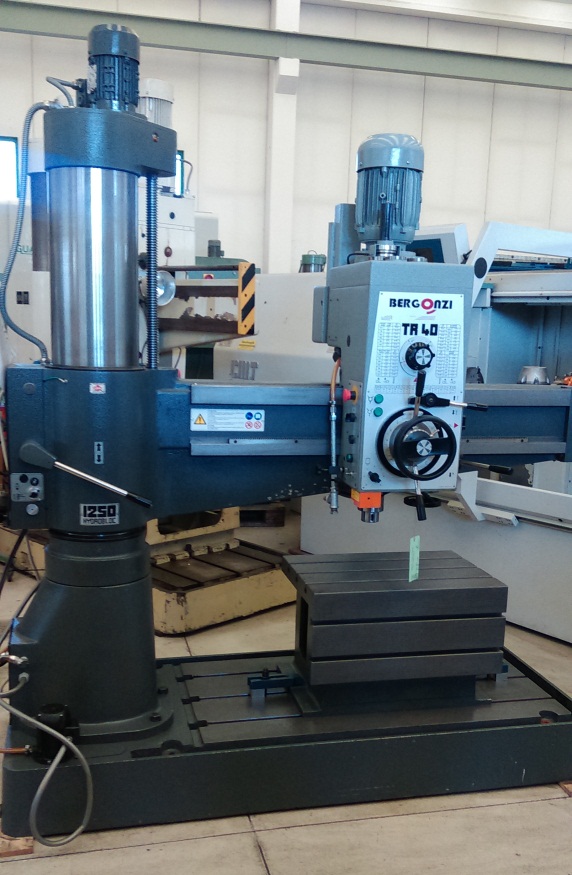

DRILLING BERGONZI TR40/1250H
Radial
drilling - Used Machines
BERGONZI
06864
06864
Max drilling on cast iron mm 40
Max drilling on steel mm 50
Arm straddle mm 1250
Arm travel mm 600
Head travel mm 1000
Max distance between spindle and base mm 1230
Spindle speed 40-1400 rpm (50 Hz) / 45-1620 rpm (60 Hz)
Spindle diameter mm 75
Morse taper 4
Spindle travel mm 230
Spindle motor power kW 2,6
Base lenght mm 1940
Base width mm 800
Base height mm 220
Base useful dimensions mm 1330x770
Approx. weight Kg 2200
USED MACHINE
YEAR 2007
FILL OUT OUR FORM FOR MORE INFORMATION
