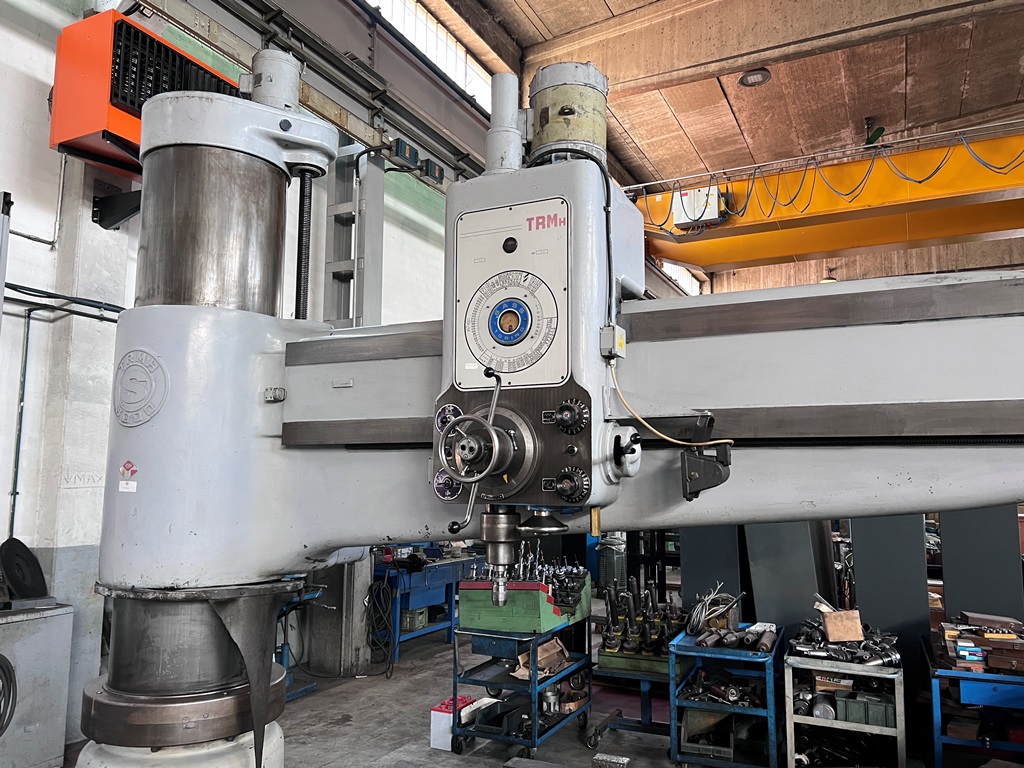

DRILL SASS TRMH 3000
Radial
drilling - Used Machines
.JPG)
.JPG)
.JPG)
SASS
10134
10134
RADIAL DRILL SASS mod. TRL 1600
Max. working diameter 90/110 mm
Max. spindle/column centre distance 3,020 mm
Min. drilling radius 695 mm
Max. drilling radius 3.345 mm
Min. spindle nose-to-base distance 540 mm
Max. distance between spindle nose and base 2.250 mm
Spindle - CM 6 110 mm
Spindle stroke 550 mm
Spindle speed - 24 from 19 to 1.540 RPM
Spindle motor power 20 HP
Column diameter 650 mm
Total weight 15.700 kg
Complete with:

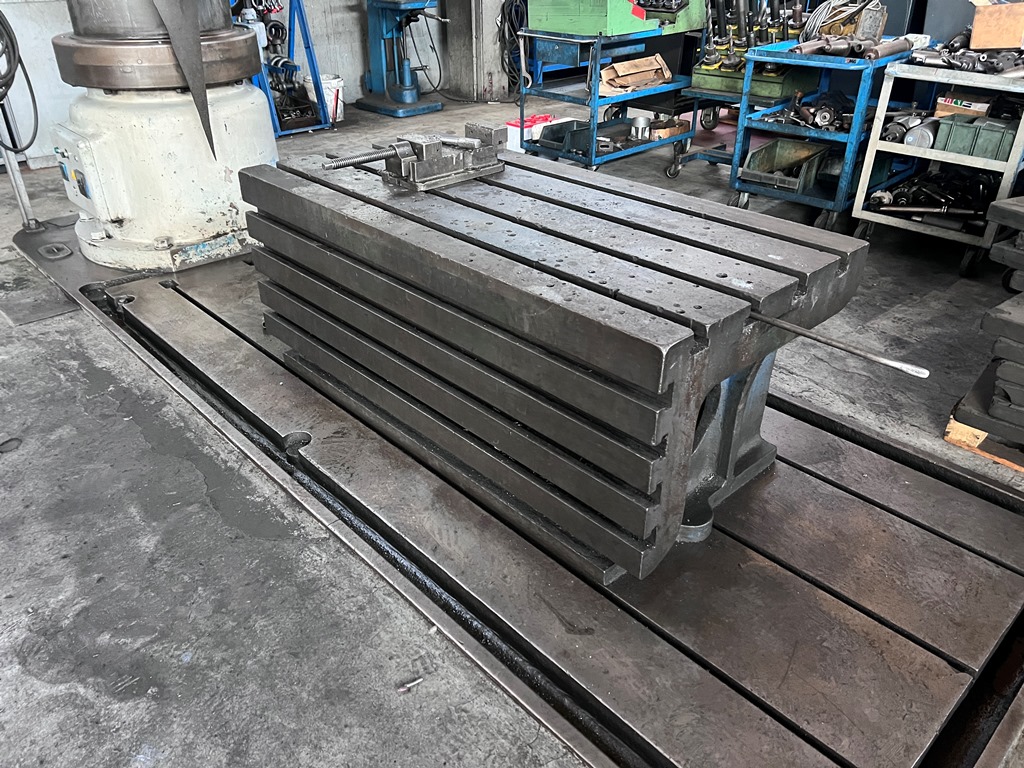

- Worktop (cube)
USED MACHINE
IMAGES:
