LATHE DOOSAN MOD. LYNX 300M
With live tools
07016
LIVE TOOLS

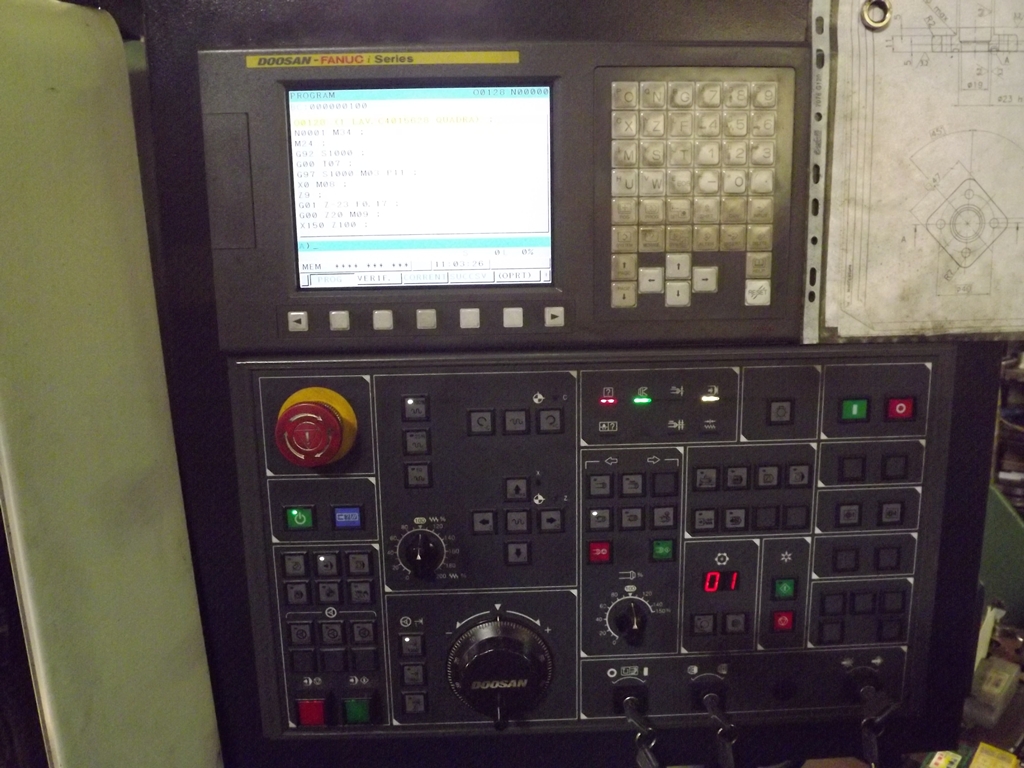

CNC FANUC serie i
CAPACITY:
-Swing diameter over the bed mm 651
-Swing diameter over the carriage mm 461
-Max turning diameter mm 370
-Max turning lenght mm 712
-Bar diameter mm 76
STROKES:
-Axis X mm 255 (185+70)
-Axis Z mm 790
SPINDLE:
-Spindle speed rpm 3500
-Spindle nose ASA 8
-Spindle bearing diameter mm 110
-Spindle bore mm 77

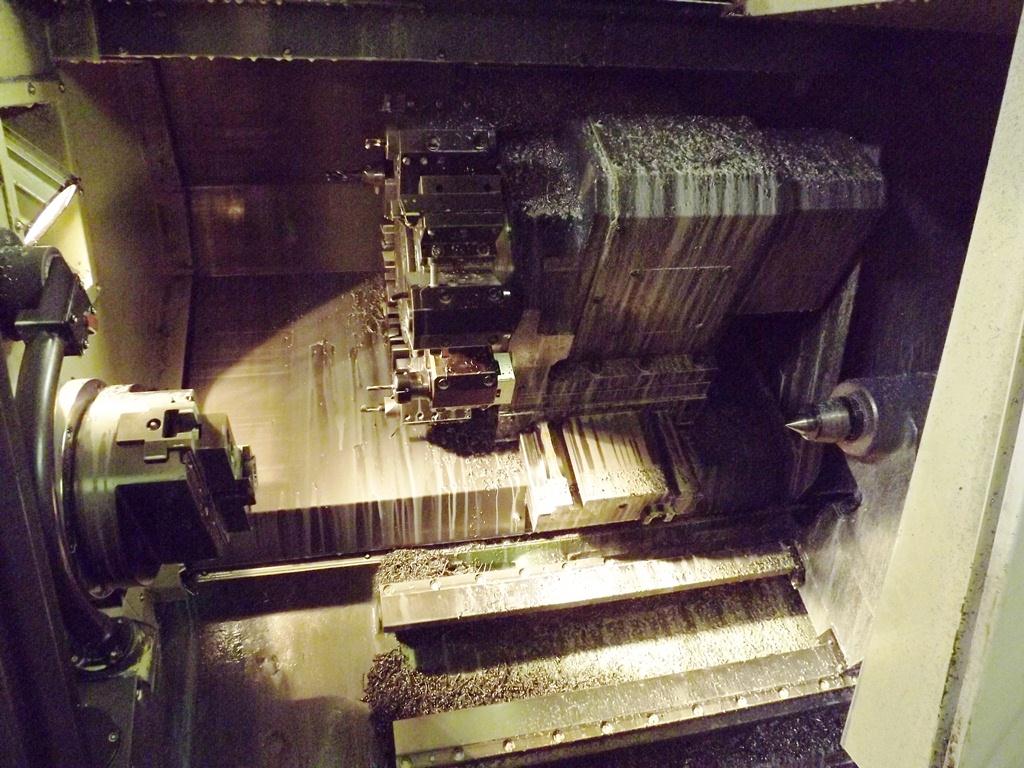

TURRET:
-Live tools stations number 12
TAILSTOCK:
-Quill diameter mm 80
-Quill taper MT4
-Quill stroke mm 120
FEED:
-Rapid (axis X/Z) m/min 30/24
MOTORS:
-Spindle motor power (30 min./cont.) kW 11/15
REQUIRED POWER:
-Power supply kVA 32.62
MACHINE DIMENSIONS:
-Heightmm 1715
-Lenght mm 2993
-Width mm 1785
-Weight Kg 4050
EQUIPPED WITH:
-Chip conveyor
USED MACHINE
YEAR 2011
FILL OUT OUR FORM FOR MORE INFORMATION
