LATHE EMCO MOD. EMCOMAT
Autoteaching
lathe cnc - Used Machines
EMCO
06961
06961
TIPO E360x3000
WORKING AREA:

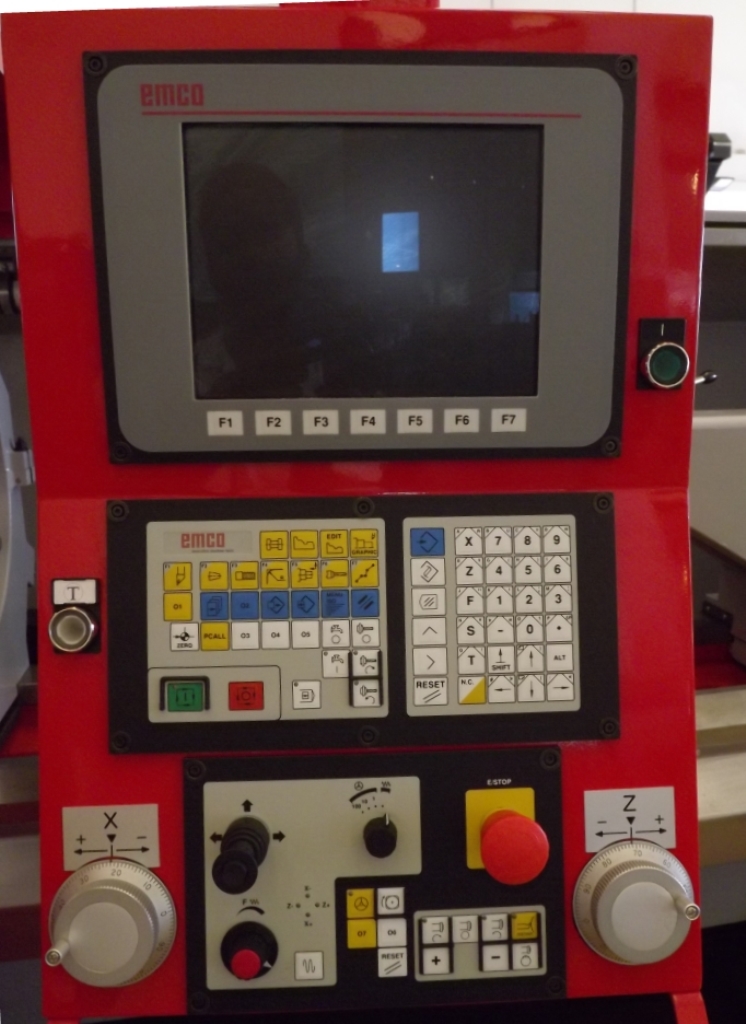

CNC FAGOR 8055
Distance between center mm 3000
Height id center mm 380
Swing over bed mm 810
Swing over cross slide mm 480
Bed width mm 500
Axis X mm 520
Axis Z mm 3000
Cross slide width mm 286
SPINDLE:

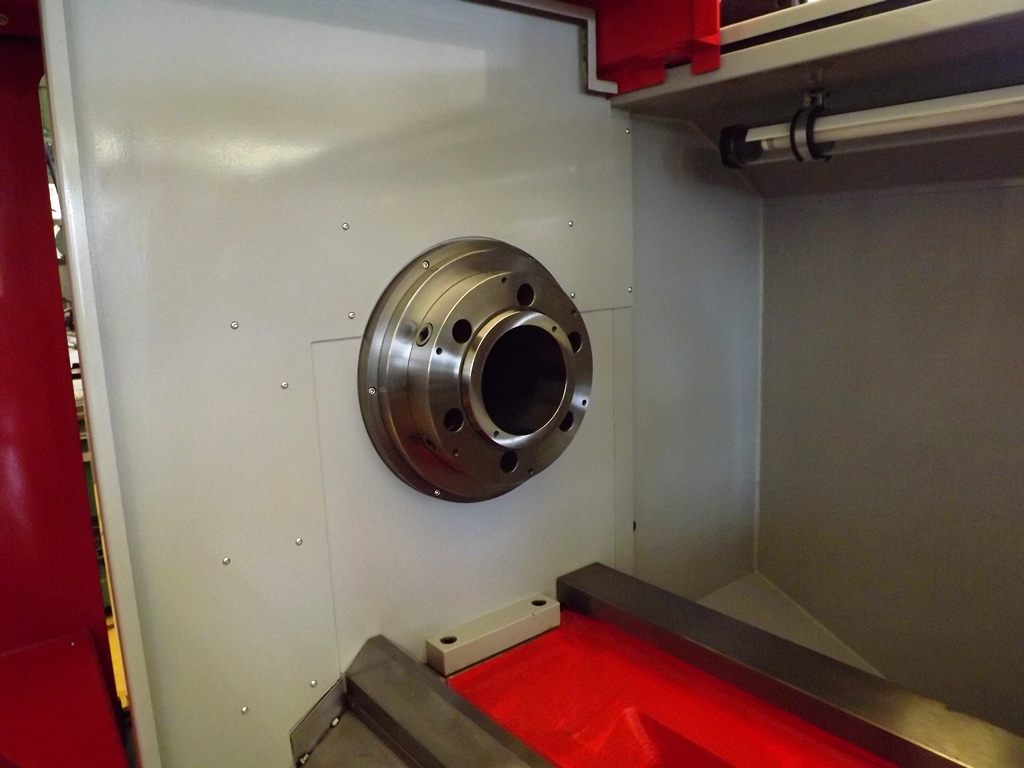

Spindle nose Camlock 11''
Spindle bore mm 153
Front bearing spindle diameter mm 500
Spindle motor power 40/100% kW 33/22

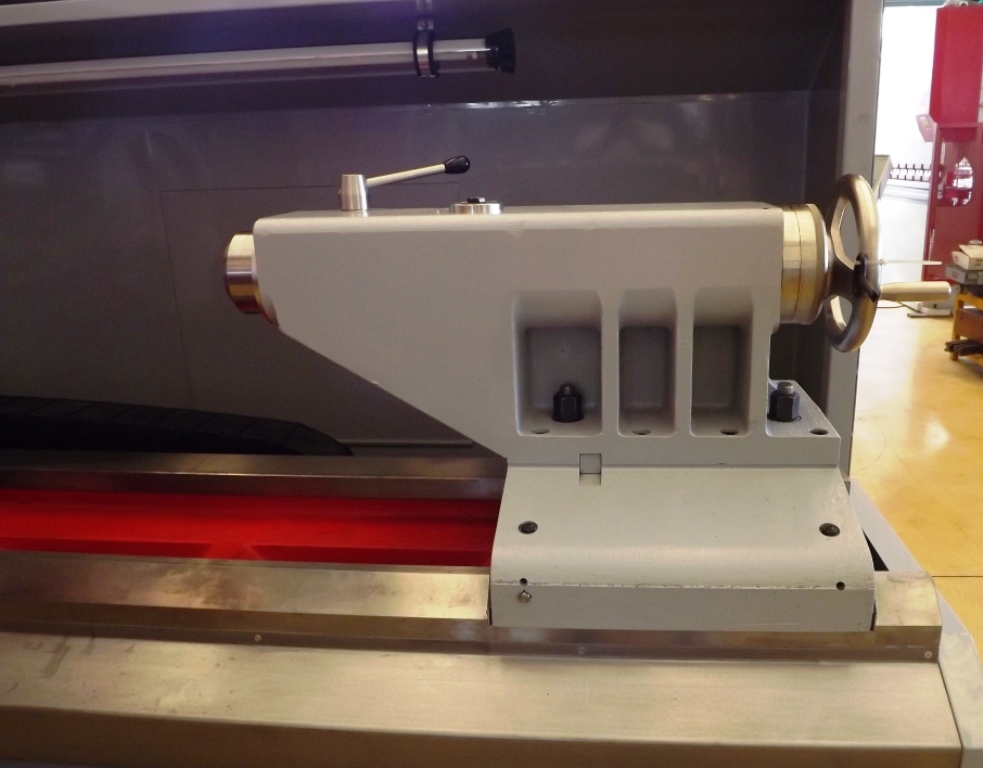

TAILSTOCK:
Quill diameter mm 120
Cone MK 6
Quill stroke mm 220
Absorbed power kVA 39
MACHINE DIMENSIONS:
Lenght mm 6060
Width mm 2470
Height mm 2070
EQUIPPED WITH:
-Chuck diam. mm 500
-Faceplate diam. mm 600
-Chip conveyor
NEW MACHINE
YEAR 2009
