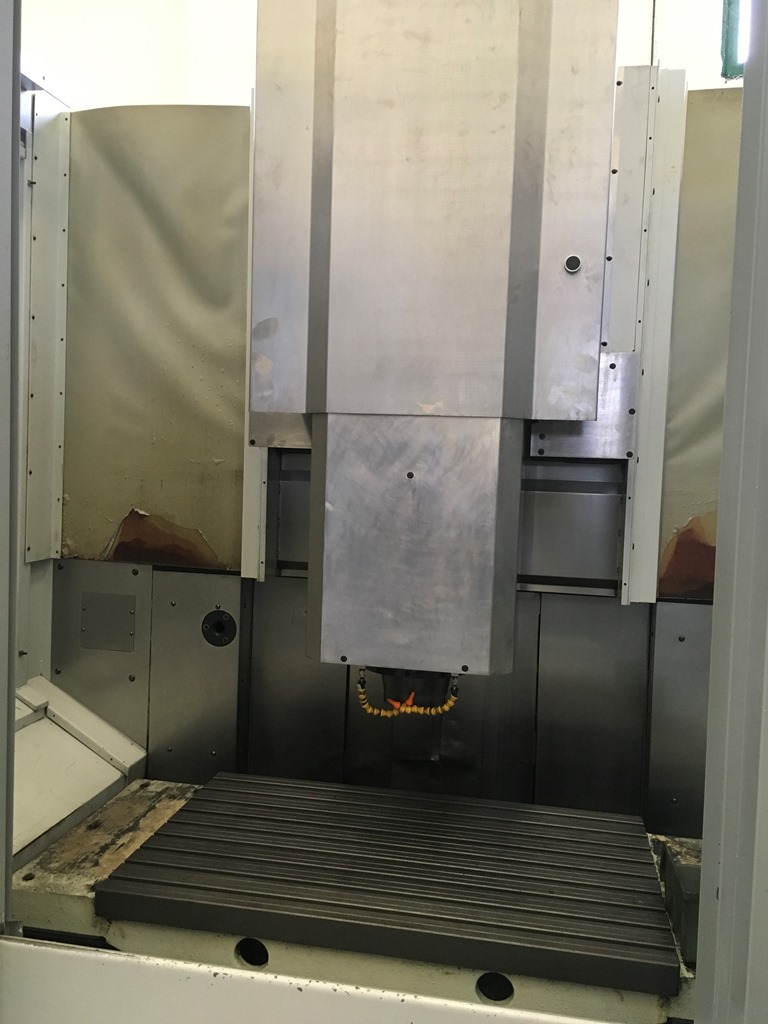

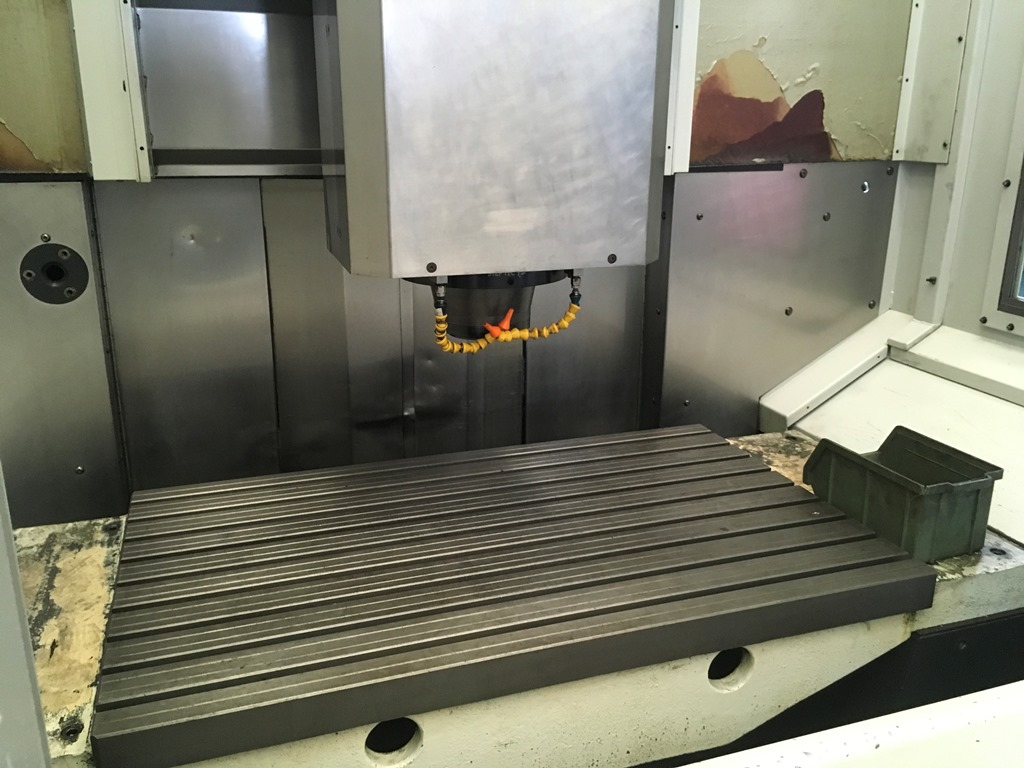

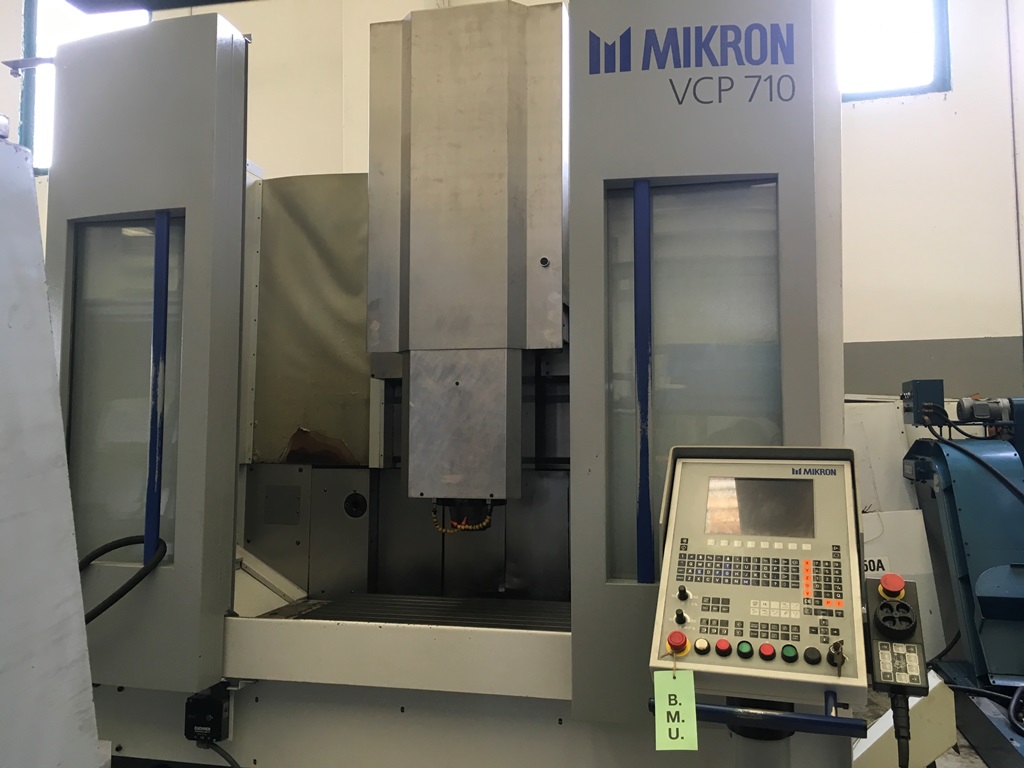

CENTER MIKRON VCP 710
Single pallet
machine center - vertical - Used Machines
MIKRON
07608
07608

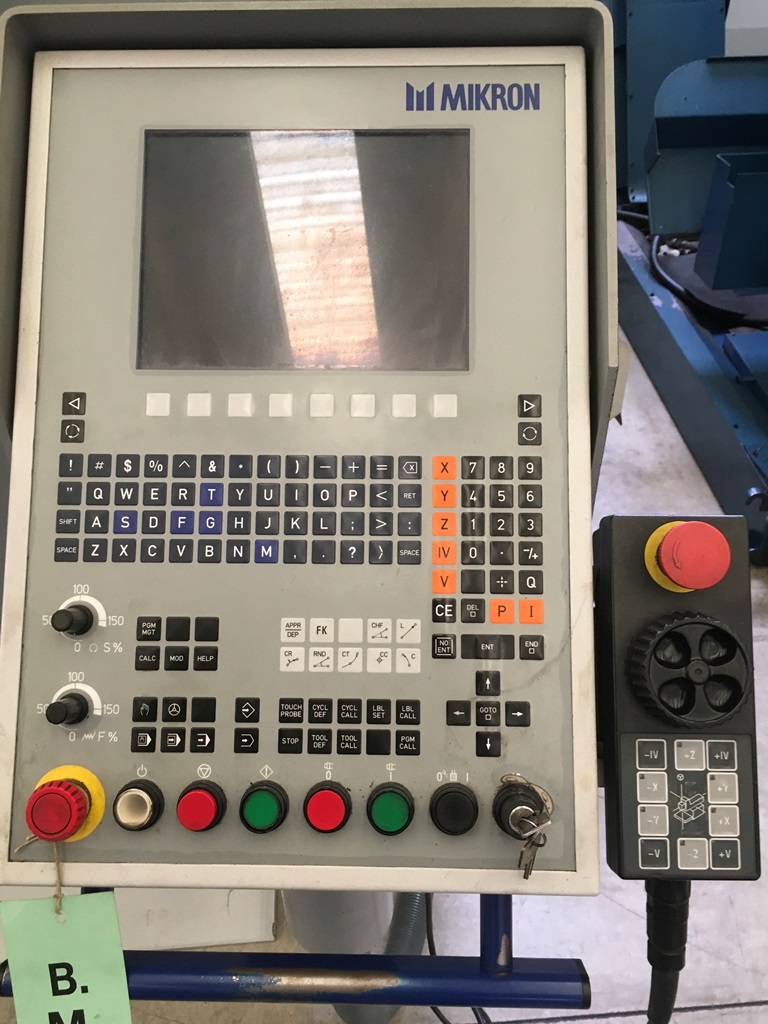

CNC HEIDENHAIN TNC 426
STROKES:
Axis X (longitudinal) mm 710
Axis Y (cross) mm 500
Axis Z (vertical) mm 500
SPINDLE MOTOR:
Spindle motor speed rpm 100-20.000
Spindle motor power (44%/100%) kW 16/12
Spindle taper HSK 63A
TOOL CHANGE:
Tool change 30 positions
Tool diameter (with adjacent tools) mm 90
Tool diameter (without adjacent tools) mm 140
Max tool lenght mm 300
Max tool weight Kg 8
APPROX. OVERALL DIMENSIONS AND WEIGHT:
Height mm 3250
Lenght mm 2350
Width mm 2930
Weight Kg 10000
EQUIPPED WITH:
- Direct measuring system with linear scales
- N.33 mandrini portautensili di varie tipologie
- N.68 pinze per mandrini di varie misure
USED MACHINE
