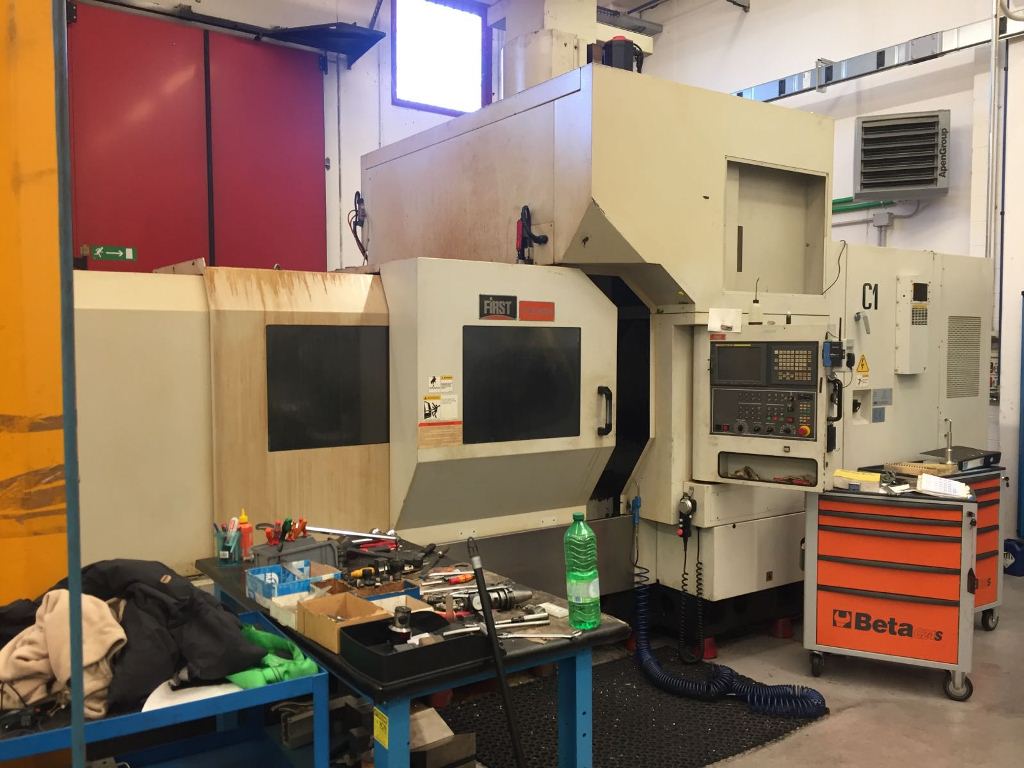

VERTICAL MACHINE CENTER FIRST MCV 2000
Single pallet
machine center - vertical - Used Machines
FIRST
07495
07495
With fourth axis

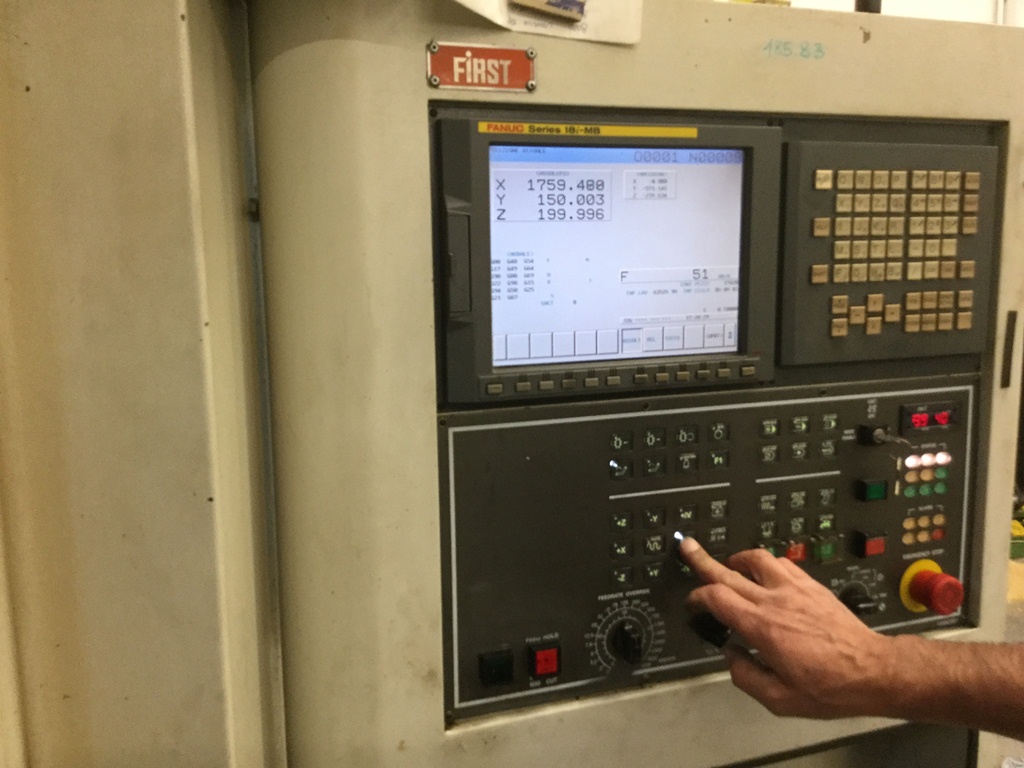

CNC FANUC 0-IMC
TABLE
Clamping surface mm 2200 x 1000
T slot mm 22x6x160
Load max Kg 3000
STROKE
X mm 2050
Y mm 1150
Z mm 760
Distance spindle nose - table surface mm 200-960
Distance spindle centre - column mm 1200
Feed rates X Y Z m/min 20/20/15
SPINDLE
Spindle taper ISO 40
Spindle motor 10/17 Kw
Speed Rpm 15.000
Motor torque Nm 190
DIMENSIONS
Weight Kg 14000
Overall mm 7000x4000
EQUIPPED WITH
Automatic tool change 40 positions
Chip conveyor
YEAR 2008
MACHINE USED
FILL OUT OUR FORM FOR MORE INFORMATION
