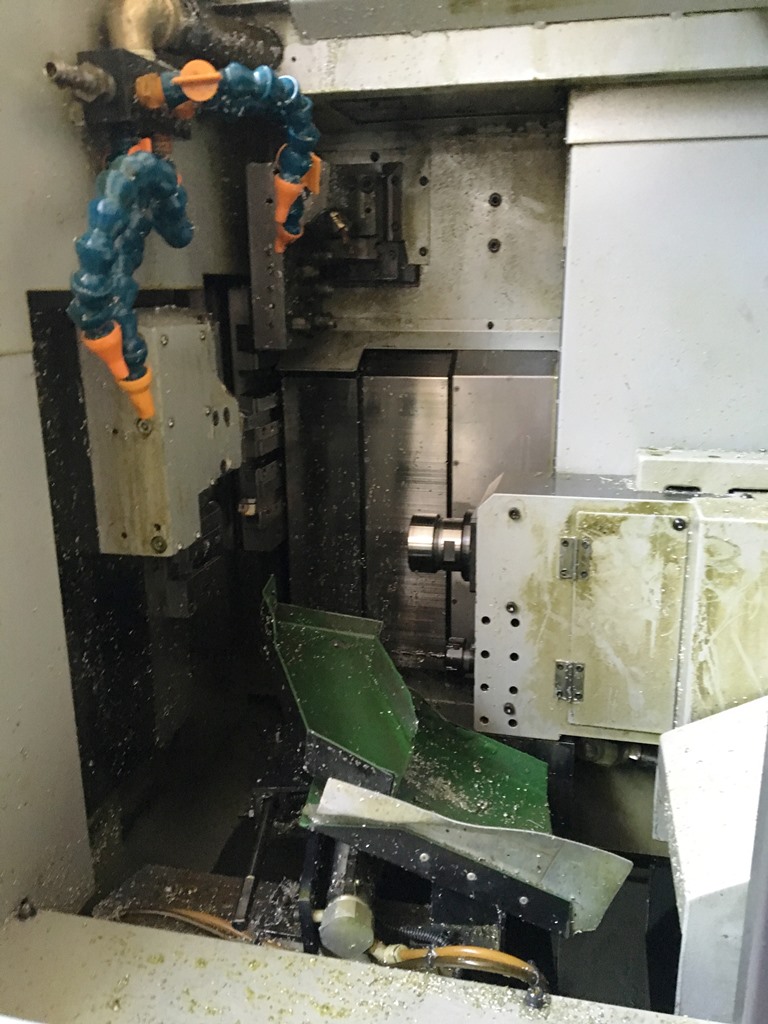

LATHE TSUGAMI - MORI BS26 III

Sliding headstock

lathe cnc - Used Machines

TSUGAMI - MORI
07471

SLIDING HEADSTOCK

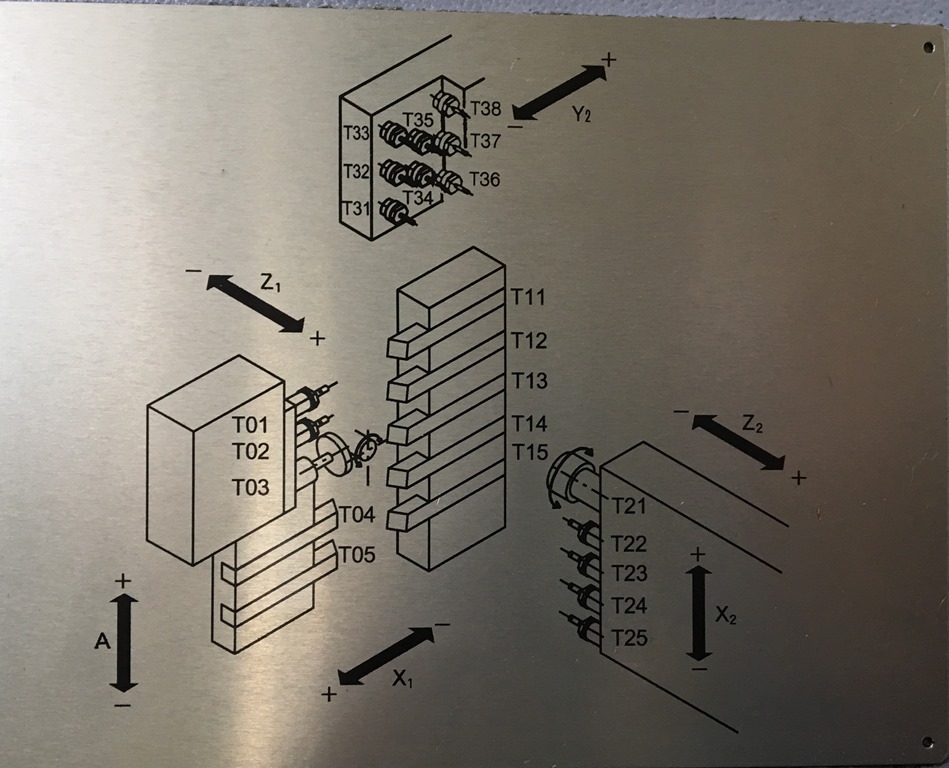

N.5 AXIS + 2 C AXIS
SUB-SPINLE
LIVES TOOLS

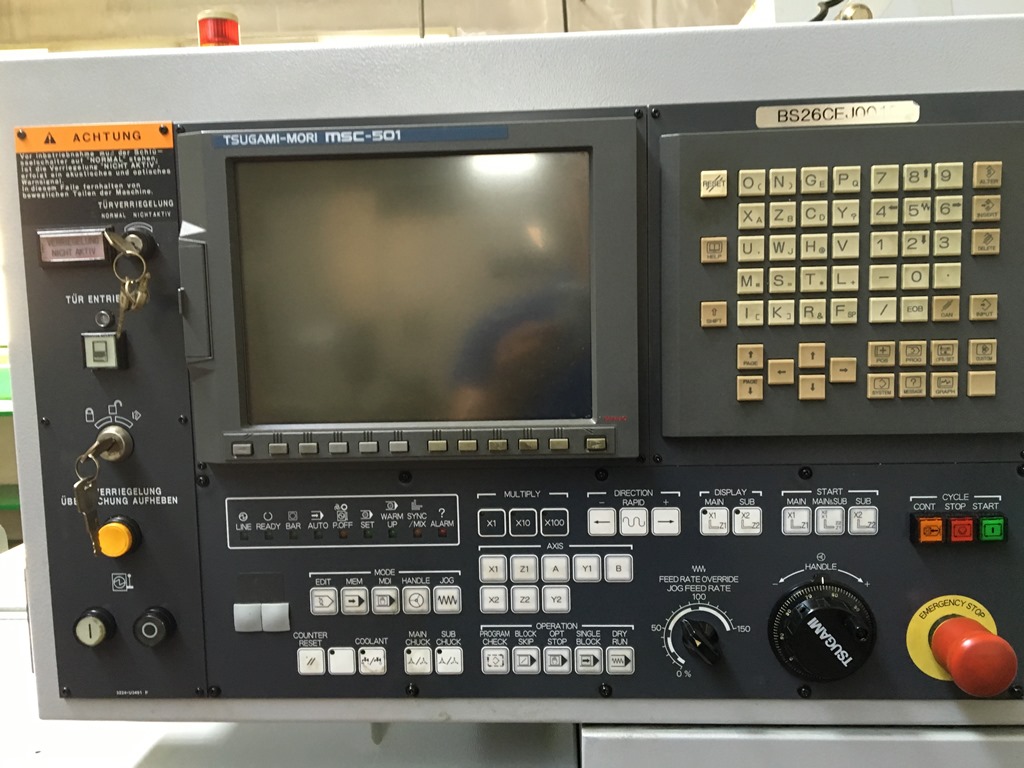

CNC MSC-501
Bar diameter mm 8-26
Max turning lenght mm 210
Max drill diameter mm 12
Max tapping diameter M10
Max sub-spindle drill diameter mm 8
Max sub-spindle tapping diameter M6
Main spindle speed rpm 200-7000
Sub-spindle speed rpm 200-7000
Main spindle motor power kW 3,7-5,5
Sub-spindle motor power kW 1,5-2,2
Approx. overall dimensions mm 2150x1450x1825h
Approx. weight Kg 2800
EQUIPPED WITH:

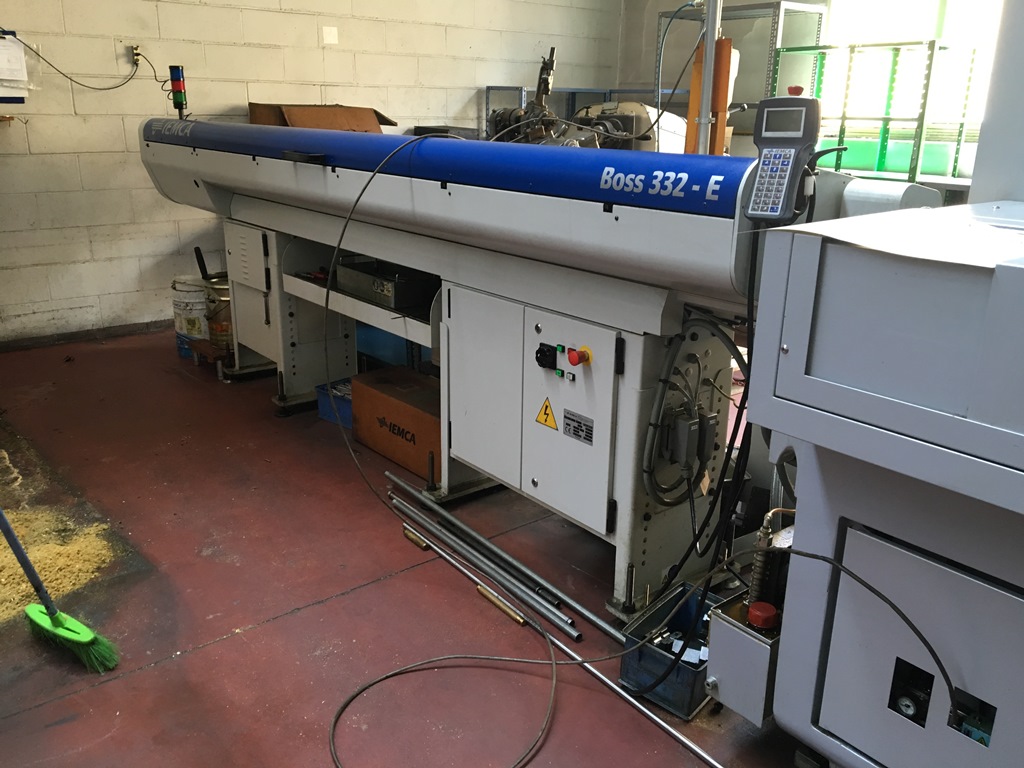

-Automatic loader IMCA mod. BOSS EVOLUTION
-Various accessories

USED MACHINE
YEAR 2006
