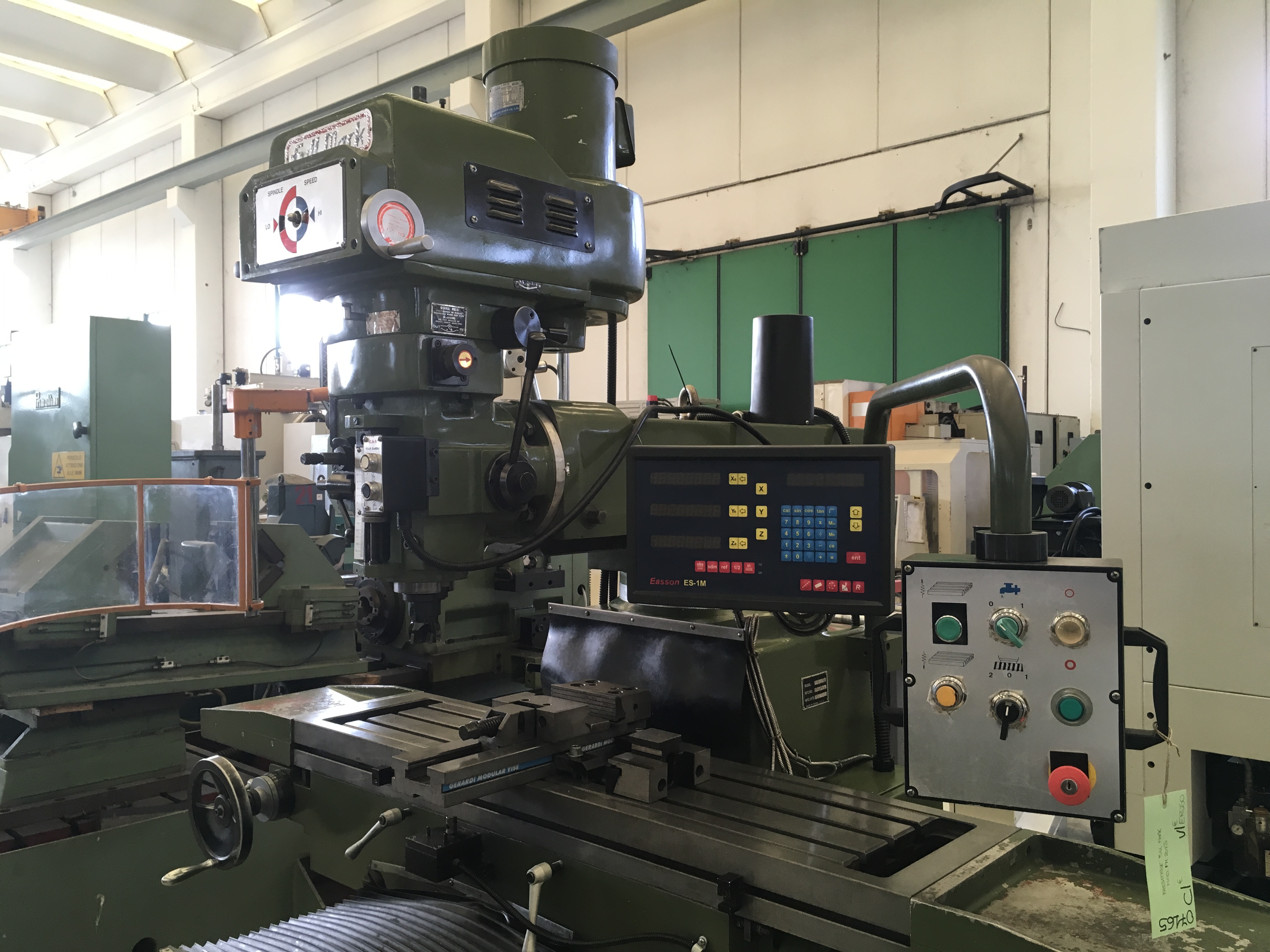

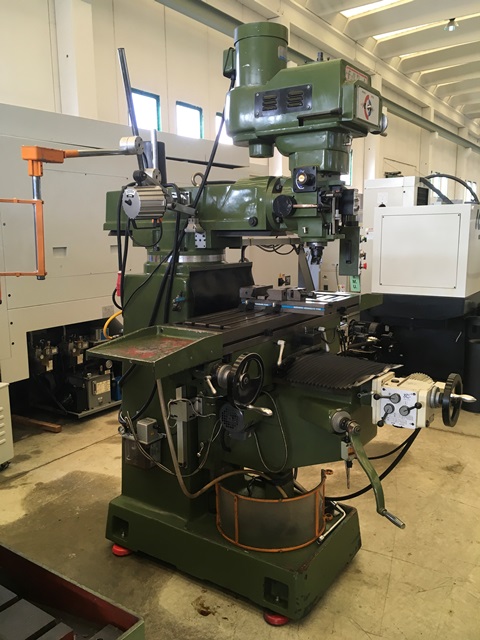

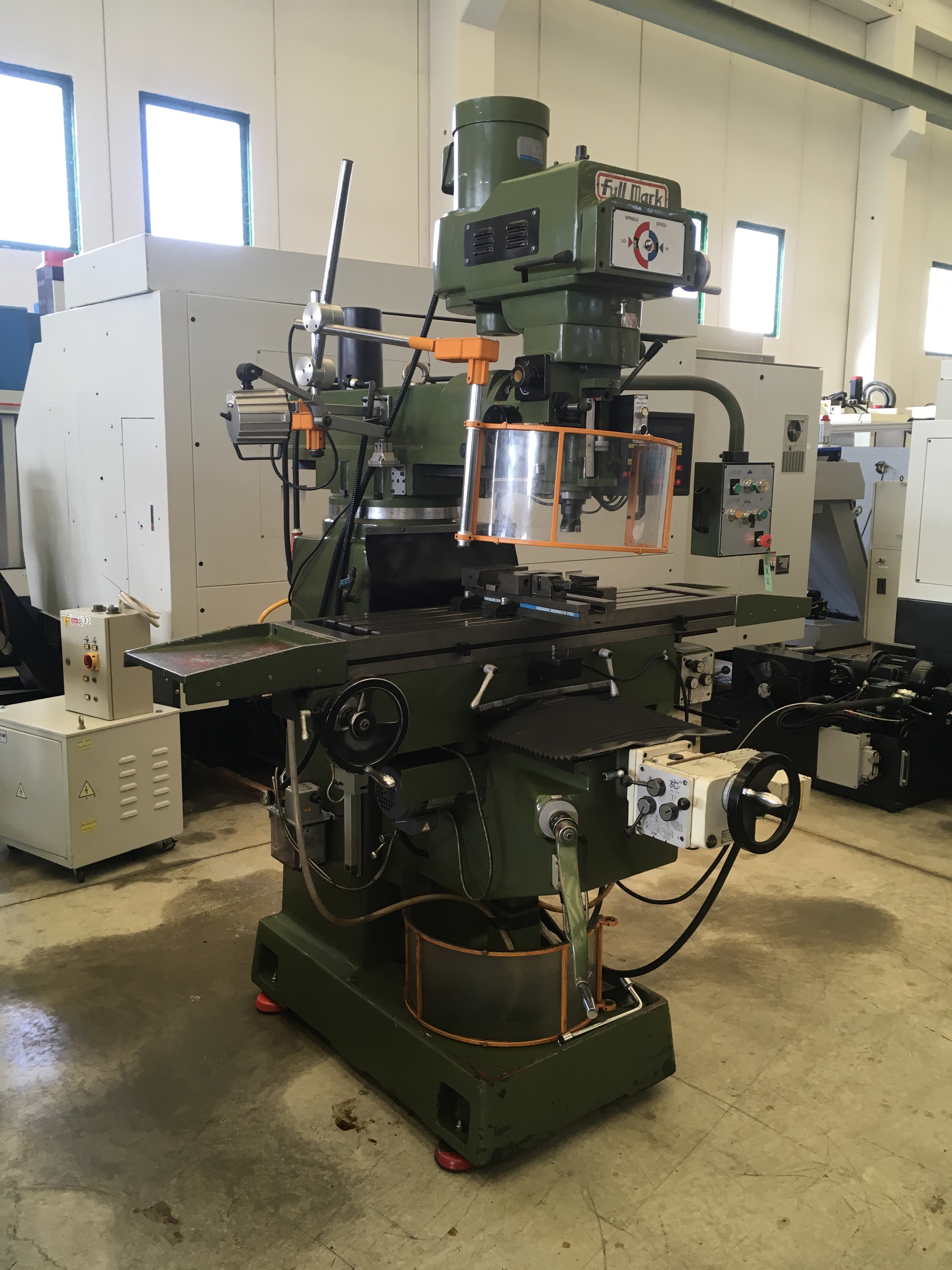

MILLING RAPID HEAD FULL MARK
Rapid head
milling - Used Machines
FULL MARK
07165
07165
MOD. FM 20 VS
Dimensions table mm 1370x300
Axis X stroke mm 860
Axis Y stroke mm 400
Axis Z stroke mm 400
Distance spindle - table mm 520
Head rotation 45 degrees right/left
Distance spinde- column mm 166-746
Quill stroke mm 140
Spindle nose ISO 40
Spindle motor power 5 Hp
spindle speed 50-3400 Rpm variable
Overall dimensions mm 230x2000x1980
EQUIPPED WITH

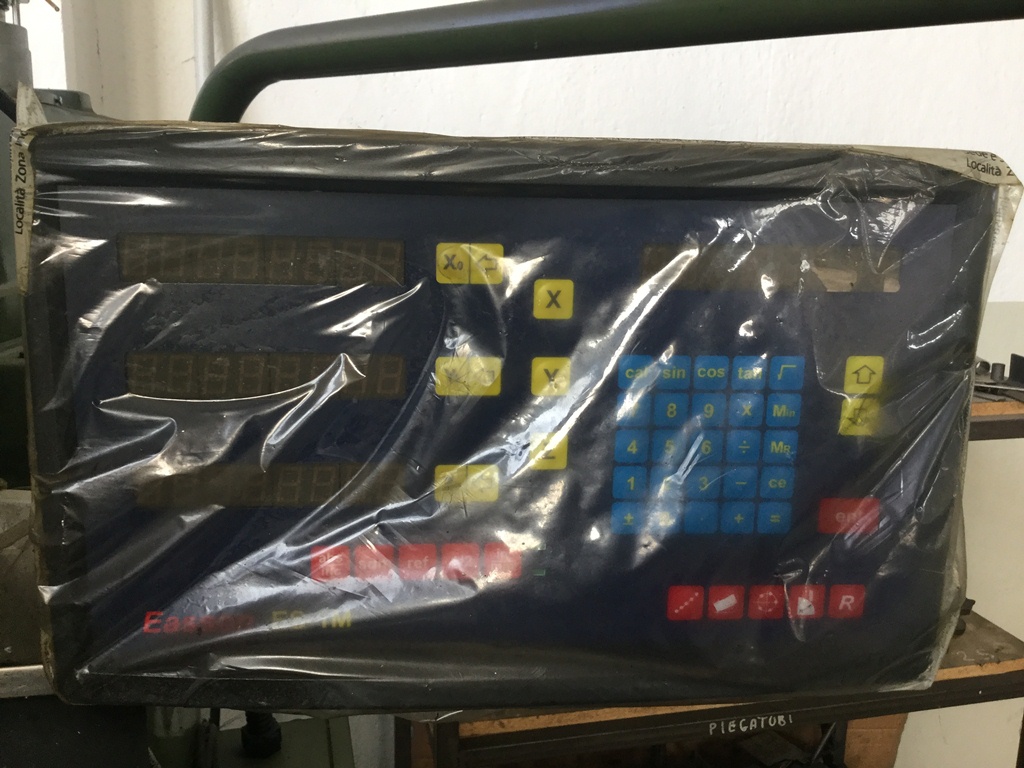

Digital read out 3 axis
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
