CENTER DECKEL MAHO MOD. DMC 50 H
Double pallet
machine center - horizontal - Used Machines
DECKEL MAHO
06753
06753

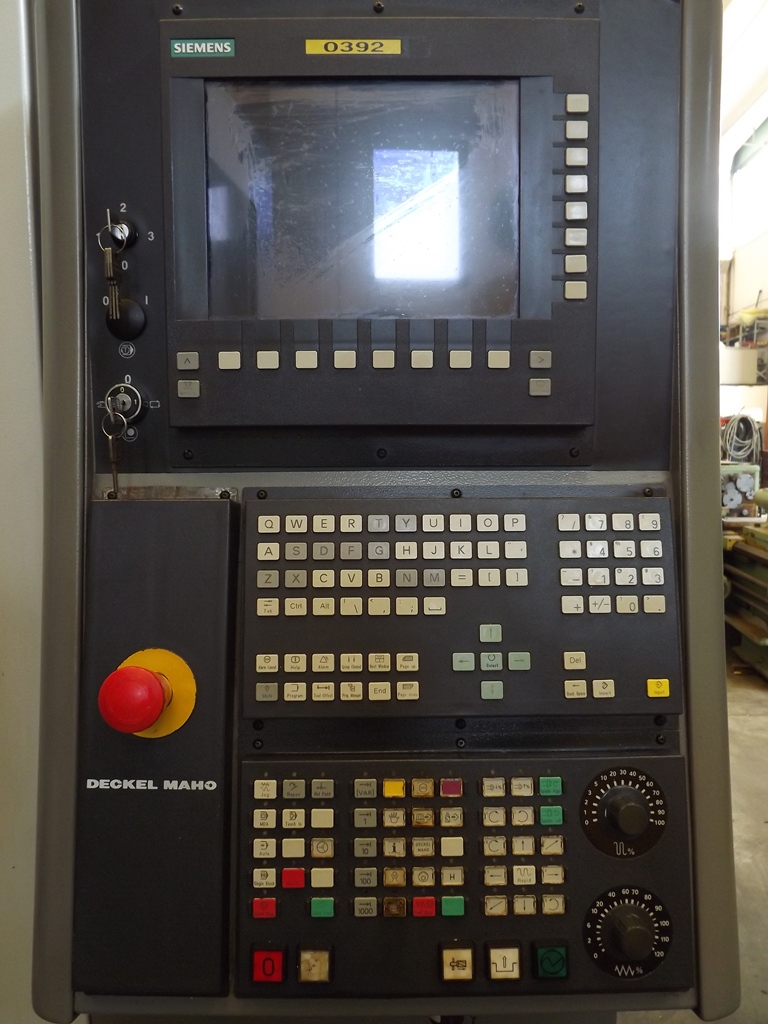

CNC SIEMENS 840D
STROKES:
Axis X mm 560
Axis Y mm 560
Axis Z mm 510

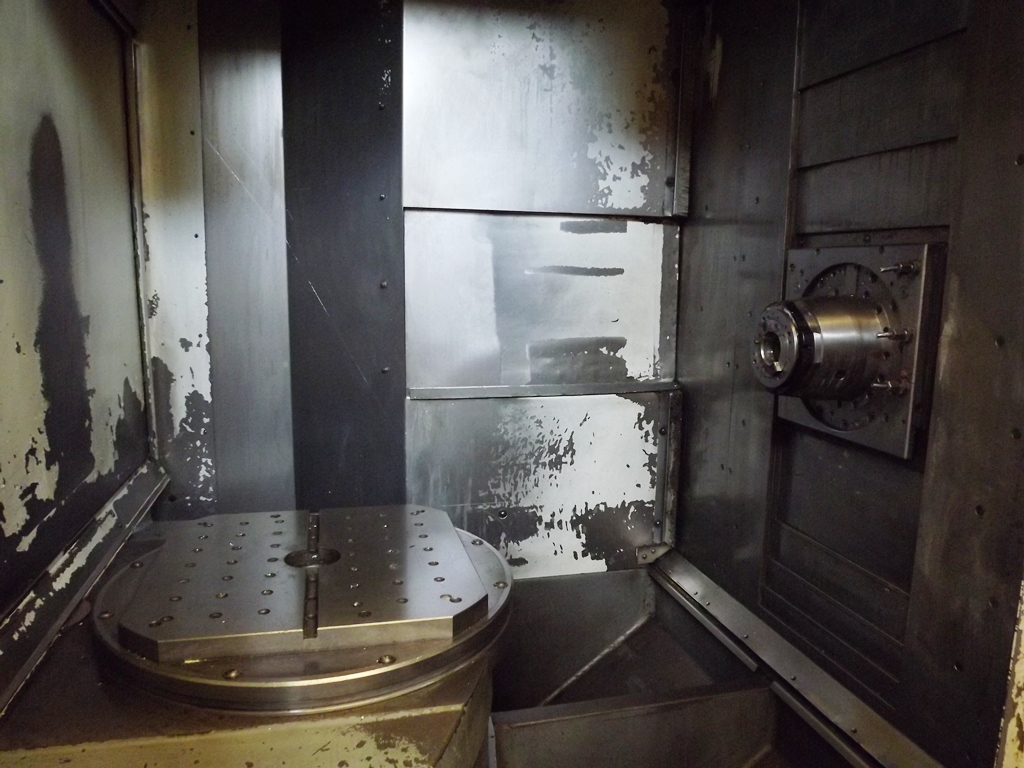

PALLET:
N.02 pallet
Surface mm 400x400
Indexing table 1 degree
FEEDRATE:
Max feedrate speed axis X,Y,Z m/min 50
SPINDLE:
Spindle taper ISO 40
Spindle speed rpm 18000
Spindle power 40/100% kW 15/10
TOOL MAGAZINE:
Tool magazine 40 positions
Max tool diameter mm 85
Max tool lenght mm 300
Max tool weight Kg 8
Time chip to chip s 3,7
OVERALL DIMENSIONS AND WEIGHT:
Approx. weight Kg 8000
Approx. overall dimensions mm 3800x2400x2600
EQUIPPED WITH:
High pressure pump
Chip conveyor
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
