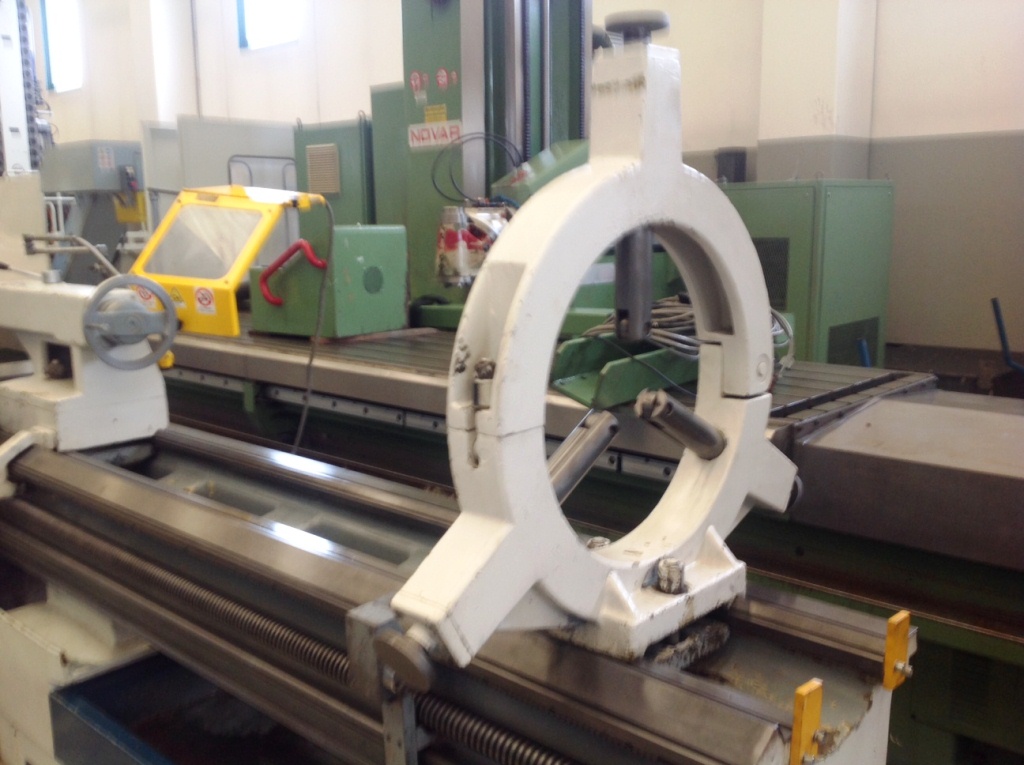

LATHE GORNATI LEGOR 350-160
Diameter between 600 e 800 mm
06193
Height centers mm 350
Distance between centers mm 5000
Swing over gap mm 990
Swing over saddle mm 470
Gap length mm 440
Bed width mm 500
Spindle bore diameter mm 160
Spindle nose CAM-LOCK D.1-11''
Spindle speeds n.16
Range speeds rpm 8-770
Cross slide max travel mm 520
Tool holder max travel mm 230
Max tool selection mm 40x40
Tailstock barrel diameter mm 90
Tailstock barrel travel mm 300
Eletric motor HP 20
Dimensions (LxWxH) 7700x1400x1600
EQUIPPED WITH
Double guide 3 jaw chuck 3+3 mm.450 / D1-6
Double guide 3 jaw chuck mm.800 / D1-6
Steady rest mm. 500
Quill morse taper CM6
Base
Chip collecting tray
Clutch
Splash guard
Halogen lamp
Quick change tool post TYPE C
Thread dial indicator
USED MACHINE
