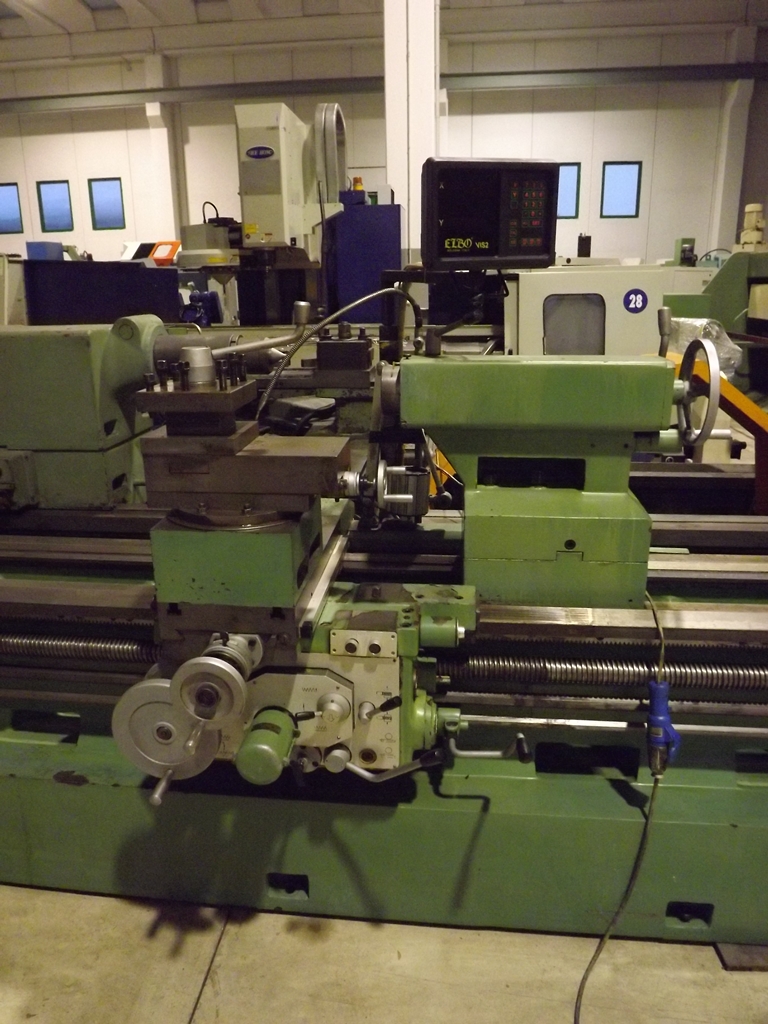

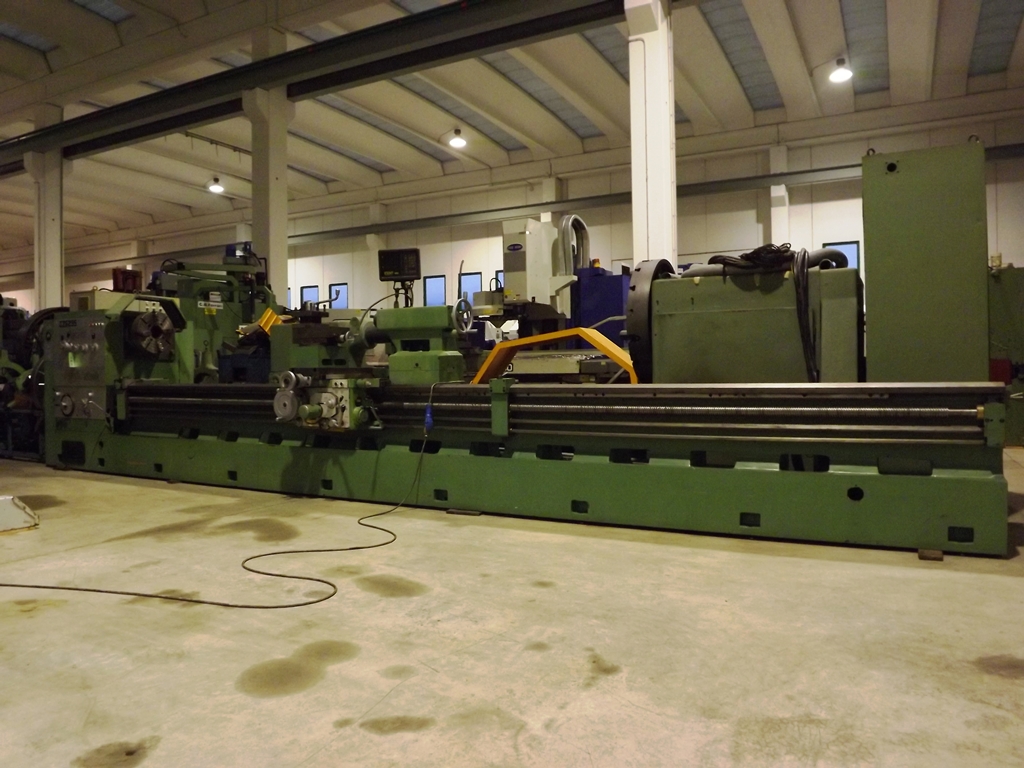

LATHE AZIMUT MM.500X6000
Diameter over 800 mm
lathe conventional - Used Machines
AZIMUT
NEW05229
NEW05229
VISUALIZED
Height of center mm.500
Max diameter swing over bed mm.1000
Max swing over carriage mm.720
Max diameter swing over cross carriage mm.700
Max diameter swing over gap mm.1200
Distance between center mm.6000
Spindle bore mm.105
Spindle nose CAMLOCK MT 11
Spindle speed n°15, Rpm 14-900
Machine equipped with:
Back plate mm.400
Steady rest mm. 450
Follow rest mm. 180
Quill morse taper MT6
Chip collecting tray
Splash guard
Rotating tool post
Thread dial indicator
Coolant system

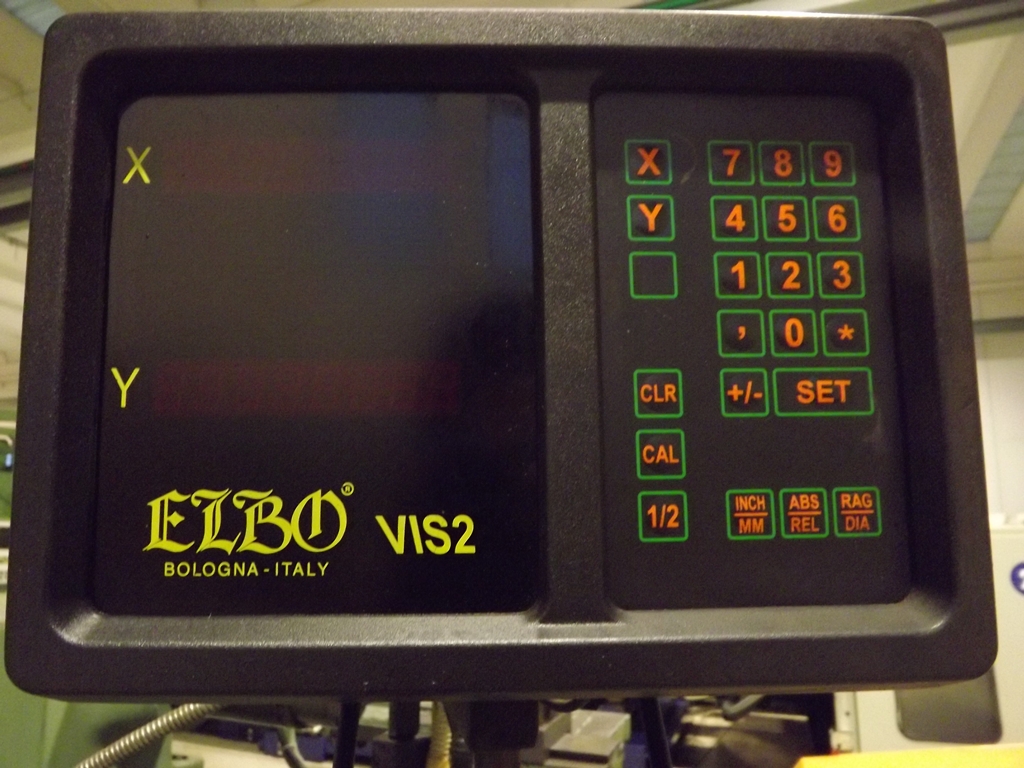

Digital read out 2 axis ELBO
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
