SACHMAN FRAZER MILLING MACHINE
Floor type
.jpg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
10506
SACHMAN MOVING COLUMN MILLING MACHINE mod. FRAZER MILLTURN
ROTARY MILLING AND TURNING TABLE
Cnc Siemens 840D SL
X-axis mm 3.000
Y-axis mm 1.500
Z-axis mm 1.100
Axis speed m/min 35
Axis thrust 10.000 N
Universal C-head with positioning axes and torque motors
Spindle HSK A 100
Speed rpm 8.000
With turning function
Power Kw 33
Torque Nm 637
Max torque A and B axes Nm 6.000 / 7.000

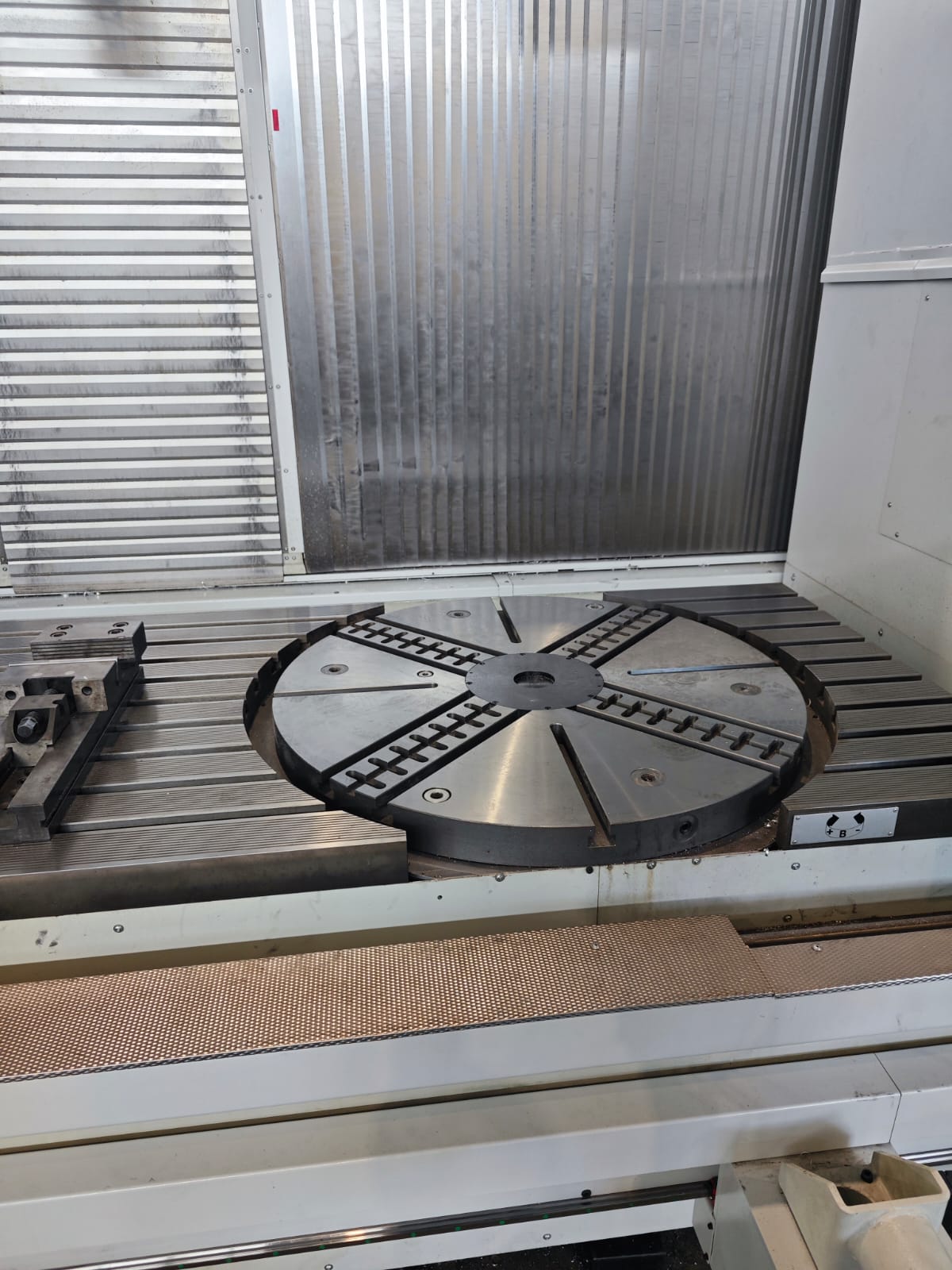

Milling and turning rotary table
Table diameter mm 1.000
Table load capacity kg 2.500
Max speed rpm 350
Max torque in S6 Nm 5.100
Power 43 kW
Fixed table mm 3.100 x 1.000
Fixed table load capacity 5.000 kg
No. 3 chip conveyors
Disc tool magazine 24 positions HSK-A-100
Complete with:
Pressurized optical scales
High pressure coolant 40 bar, with 1.000 lt tank
Renishaw RMP60 probe
Air blow through spindle, interchangeable with coolant via M function
19" operator panel
Remote electronic handwheel HT2
Turning software package
Siemens cycle 996 + calibration sphere
2 longitudinal screw chip conveyors + 1 transverse belt conveyor
Chiller units 10.000 W + 7.000 W
Hydraulic balancing system with double cylinder
Floor-mounted electrical cabinets
Onboard hydropneumatic cabinets
Machine and spindle hour counter
Work area lighting
External floor-mounted operator station
NEW MACHINE READY FOR DELIVERY
