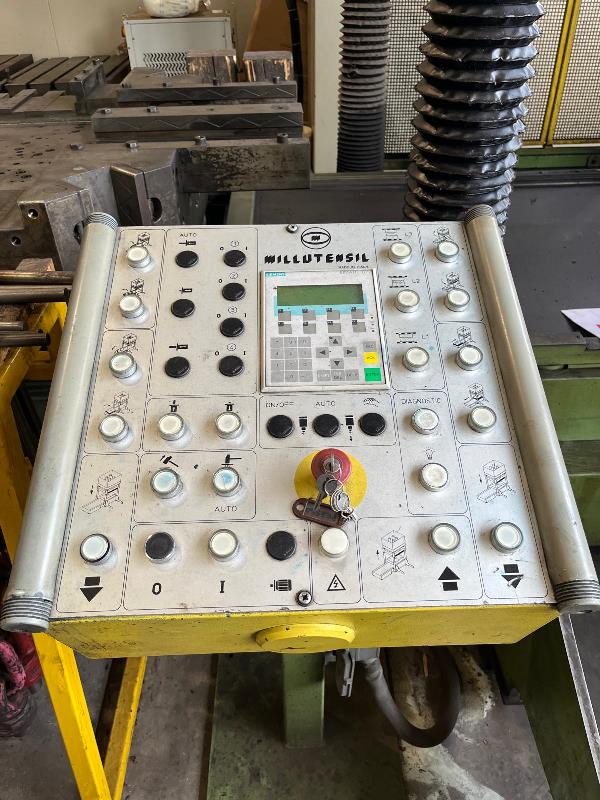

TEST MOULDING PRESS MILLUTENSIL MIL 143
Test moulding
press - Used Machines
MILLUTENSIL
10128
10128
Useful length of the table mm 1400
Useful width of the table mm 1200
Max passage between the columns on the length mm 1540
Max passage between the columns on the width mm 1300
T-slots in the tables 18 (DIN650)
Height of the lower work table from the ground mm 600
Hydraulic pressure adjustable between 0-250 bar
Max force in opening kN 220
Max force in closing kN 1000
Upper table rotation degrees 100-150-180
Rapid approach speed mm/sec. 50-65
Working speed mm/sec 8
Return speed mm/sec 35-50
Upper main motor power kW 7.5
Max weight on upper table Kg 5000
Max weight on lower table Kg 10000
Total press weight Kg 14000
USED MACHINE
IMAGES:
