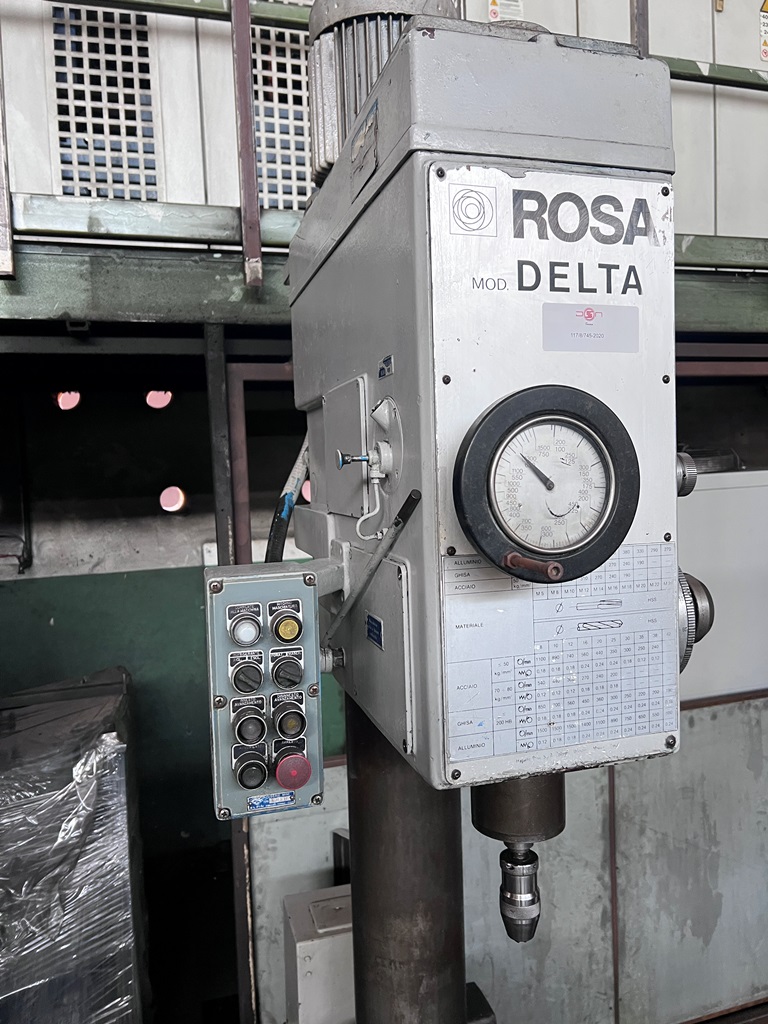

DRILL ROSA MOD. DELTA
Column/bench type
drilling - Used Machines
.JPG)
.JPG)
.JPG)
10143
Drilling capacity in steel mm 40
Spindle taper MT 4
Spindle travel mm 200
Number of speeds n° 12
Speed range rpm 85 ÷ 2000
Max spindle-to-column distance mm 350
Max spindle-to-base distance mm 700
Table size mm 500 × 500
Vertical table travel mm 400
Motor power kW 2.2
Net weight kg 650
USED MACHINE
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
