PRESS MOSSINI 400 TON
Oleodinamic doble column
press - Used Machines
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
MOSSINI
10140
10140

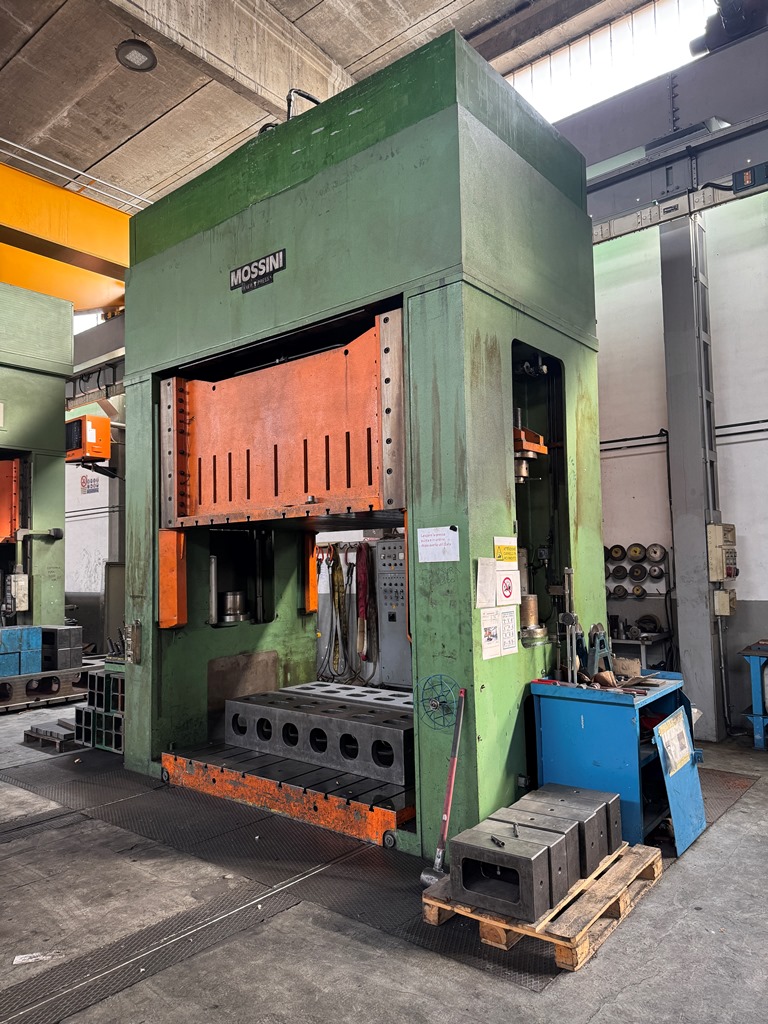

OLEODINAMIC PRESS MOSSINI mod. PO/2M 400
Working power adjustable Ton from 40 to 400
Return power Ton 40
Pressure cylinders n° 2
Table dimensions mm 2.500 × 2.000
Daylight between columns mm 2.500
Moving table stroke mm 800
Maximum daylight between tables mm 2.000
Moving table dimensions mm 2.400 × 1,900
Upper mechanical extractor stroke mm 400
Approach speed m/min 20
Working speed at 50% max.pressure m/min 1
Working speed at 100% max.pressure m/min 0.5
Return speed m/min 12
Total installed power CV 100
Lower cushion power Ton 18 ÷ 180
Lower cushion stroke mm 500
Lower cushion table dimensions hole spacing mm 1.800 × 1.500/1.600
USED MACHINE
IMAGES:
