GANTRY MILLING MACHINE DINOMAX2 L60
.jpeg)
.jpeg)
VIDEOS:
10122

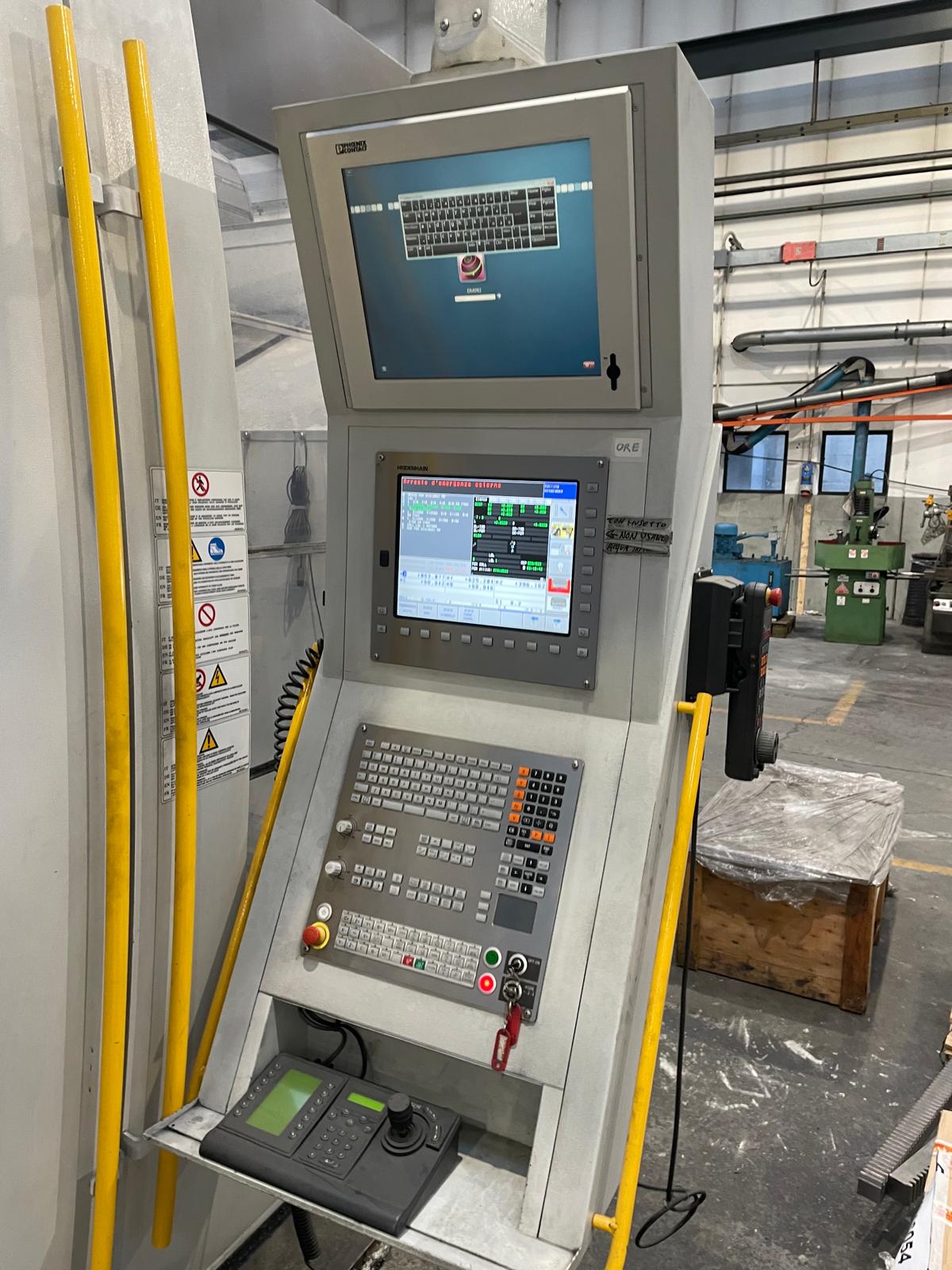

CNC Heidenhain iTNC530 HSCI
X-axis travel mm 6.000 (mm 5.200 for head magazine)
Y-axis travel mm 2.700
Z-axis travel mm 1.300
Working table mm 2.500 x 5.000
Table height mm 300
Load capacity 15 Ton
n.1 Universal bi-rotary head with continuous positioning
Spindle speed rpm 5.000
Tool taper ISO 50 DIN 69871
n.1 Twist head (fork type) with 2 continuous axes 31 kW

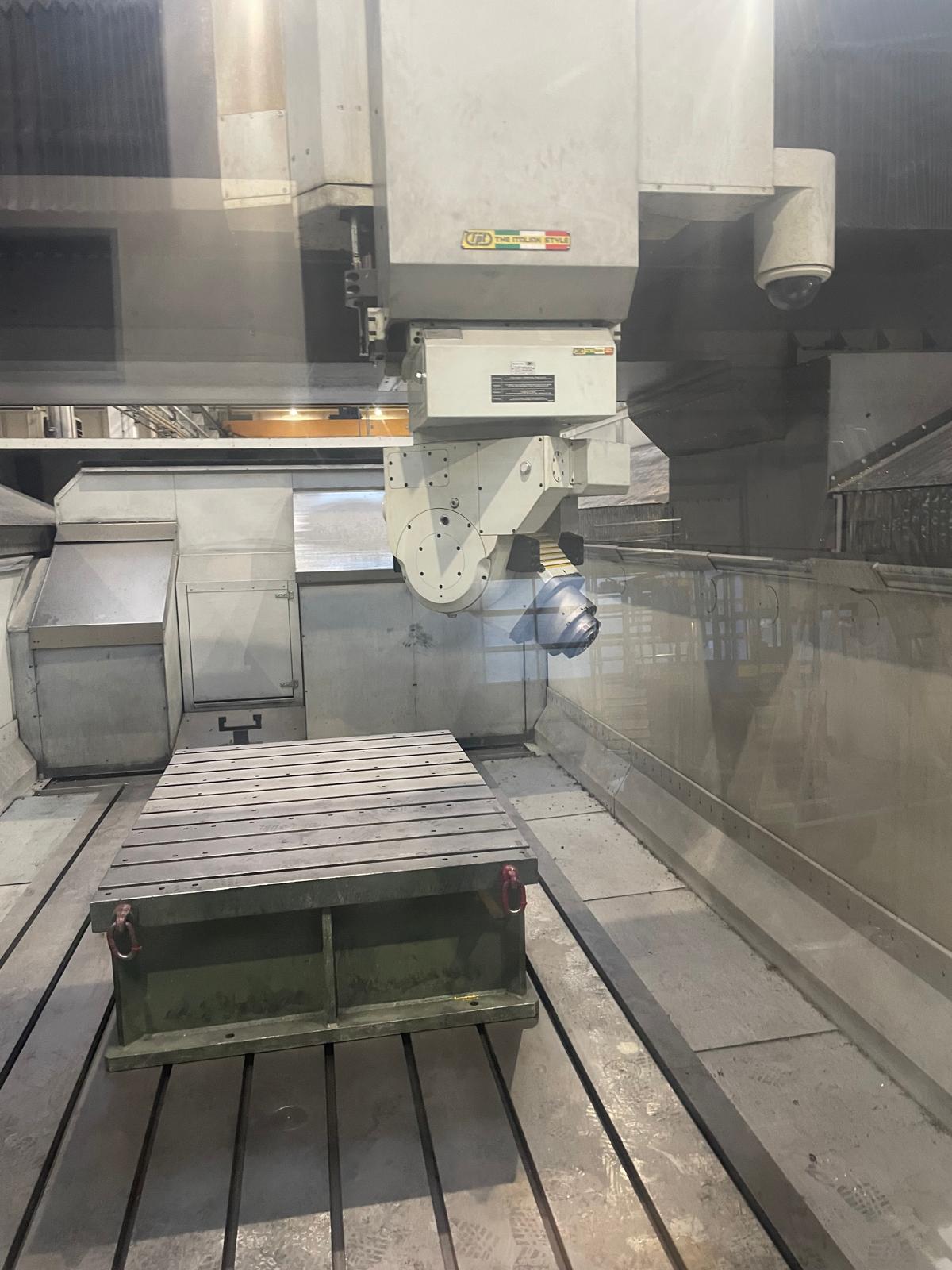

5-axis head with electrospindle
1st axis rotation +/- 210°
2nd axis rotation +115/- 97°
Spindle speed rpm 18.000
Spindle taper HSK63A
Max. axis feed mm/min 50.000
Max. acceleration m/sec2 4
Max. horizontal clearance mm 3.700
Max. vertical clearance under crossbeam mm 2.126
Table height from ground mm 330
Tool magazine 40 positions:
- n. 25 positions ISO 50 taper
- n. 15 positions HSK63A taper
Overall dimensions mm 9.500 x 6.975 x h 5.180
Approx. weight Kg 70.000
Complete with:
- Automatic head magazine with 3 positions
- Internal coolant 20 bar
- External coolant 4 bar
- n. 1 chip conveyor front of the table
- n. 2 chip conveyors lateral to the table
- Spindle extension mm 400 ISO 50 with cooling, rpm 5.000
- Remote control panel, Handwheel HR 550 FS
- Tool measuring probe
- Workpiece measuring probe
- Electrospindle balancing control
- Static and dynamic RTCP
- Work area video surveillance system
USED MACHINE
YEAR 2016
