EMMEGI MACHINING CENTER MOD. QUADRA
Single pallet
machine center - vertical - Used Machines
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
EMMEGI
10109
10109
Maximum bar length mm 7.500

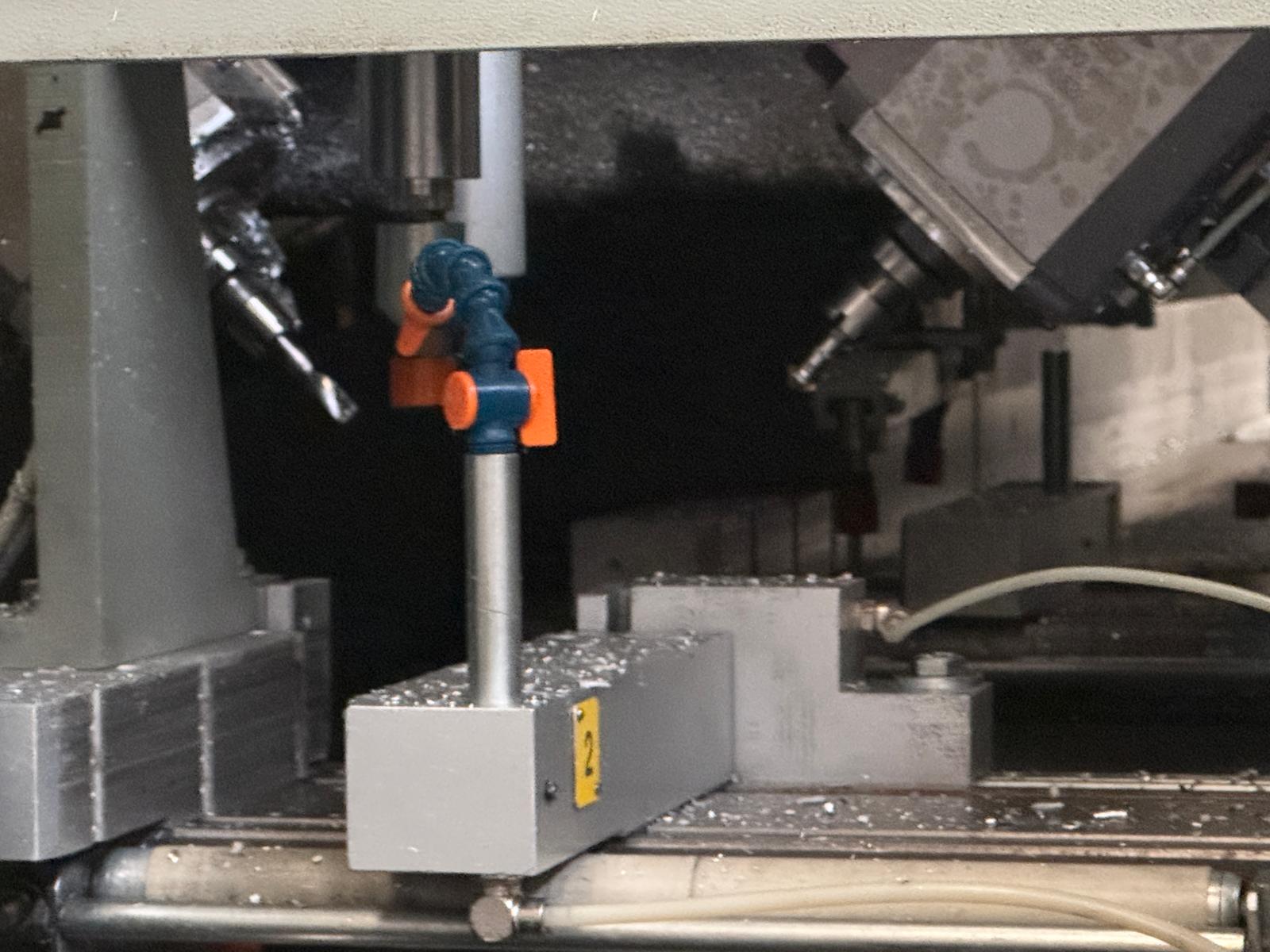

Milling unit:
ISO 25 tool attachment cone
X axis mm 240 (longitudinal)
Y axis mm 350 (transverse)
Z axis mm 350 (vertical)
U axis mm 9.500 (longitudinal Pusher)
A axis mm 360 degrees (slewing ring)
X, Y, Z positioning speed m/min 15
Working axis speed m/min 0 : 2
A-axis rotation speed rpm 6.25

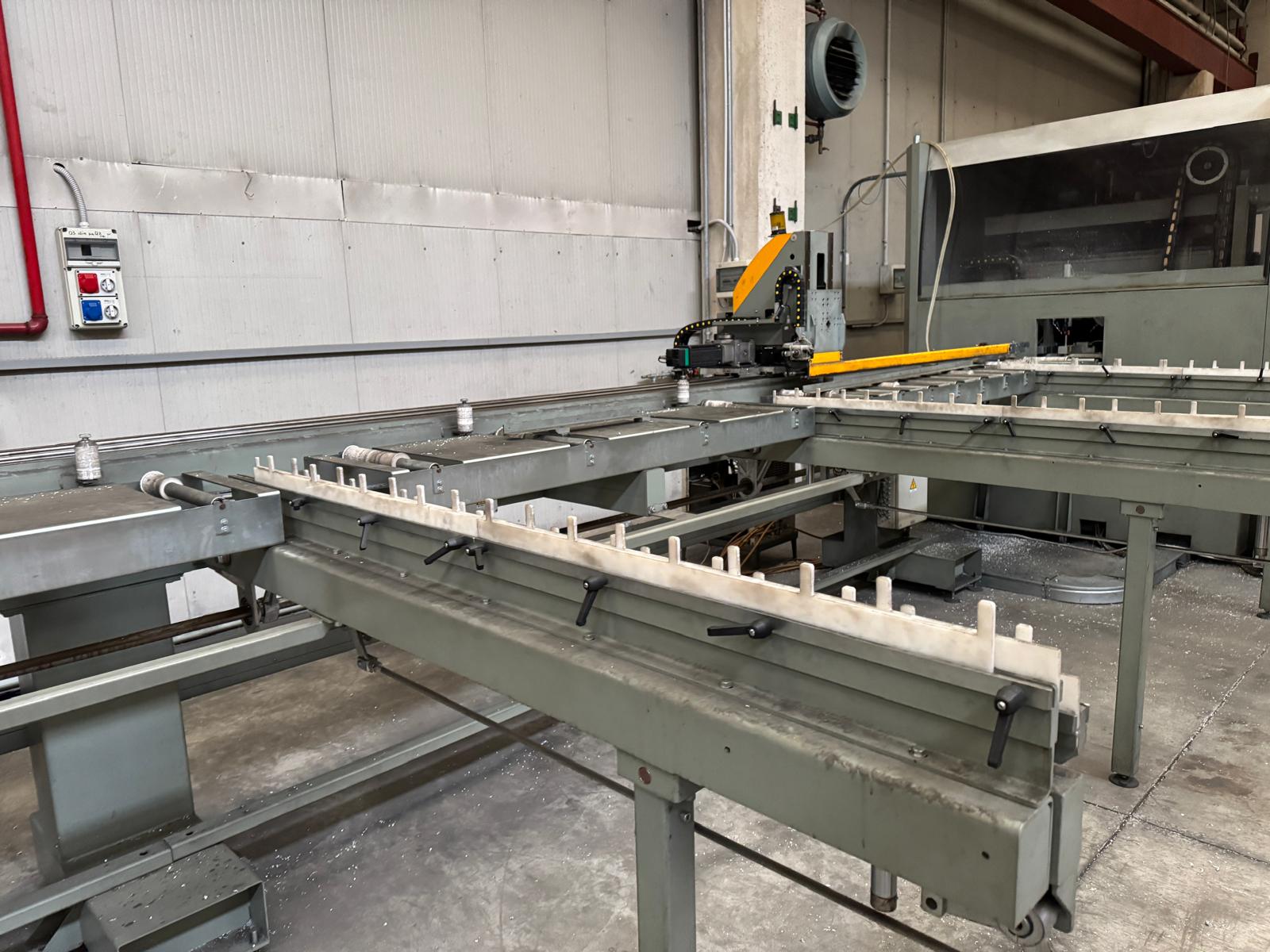

Bar loading magazine:
Loading capacity with 100 mm pitch no. 10 bars
Loading capacity with 200 mm pitch No. 20 bars
Maximum loadable weight 500 kg

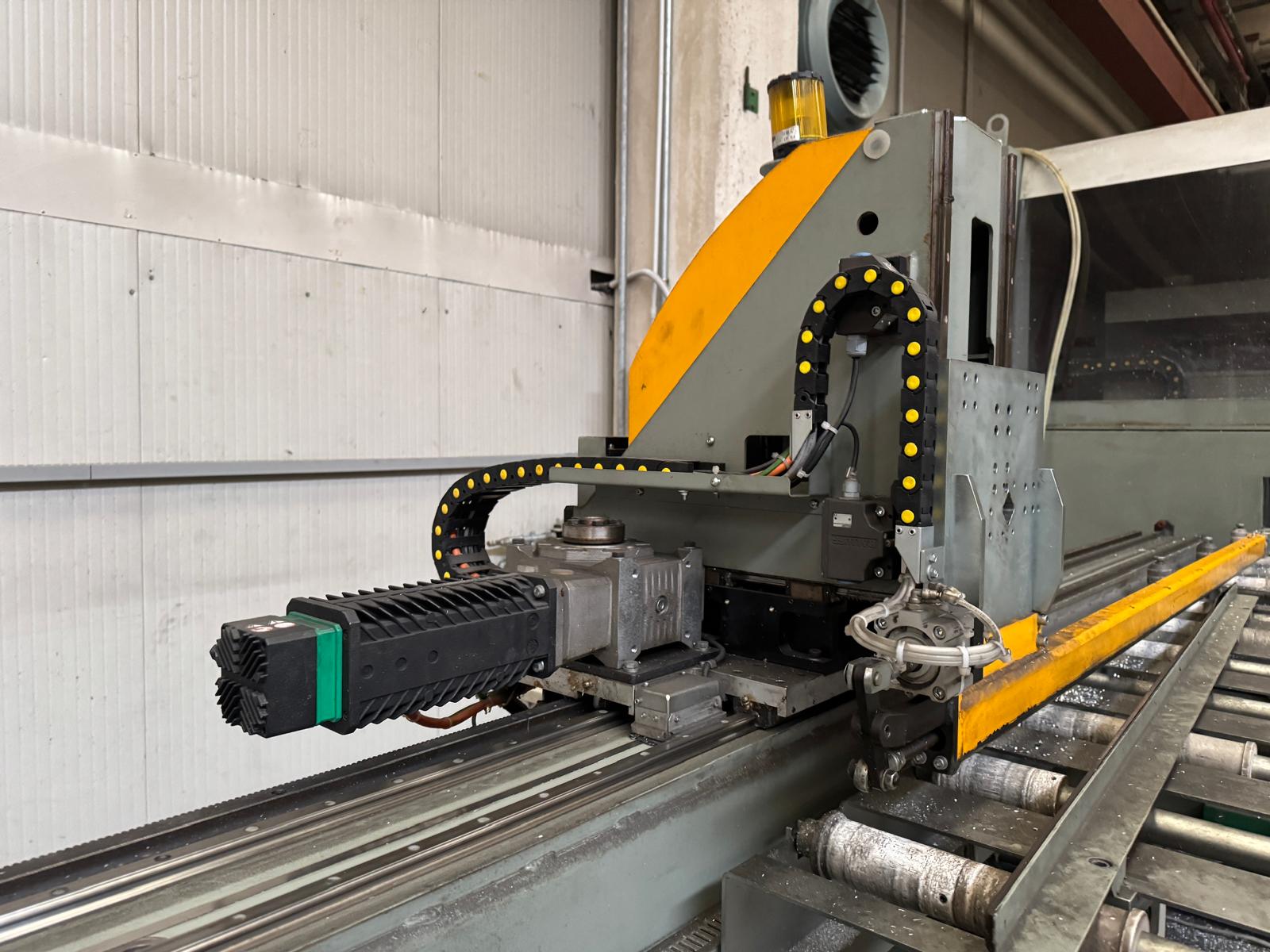

High-precision bar positioning unit:
Minimum length of manually loadable bars mm 500
Carriage travel speed m/min 0 : 60
USED MACHINE
YEAR 2012
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
