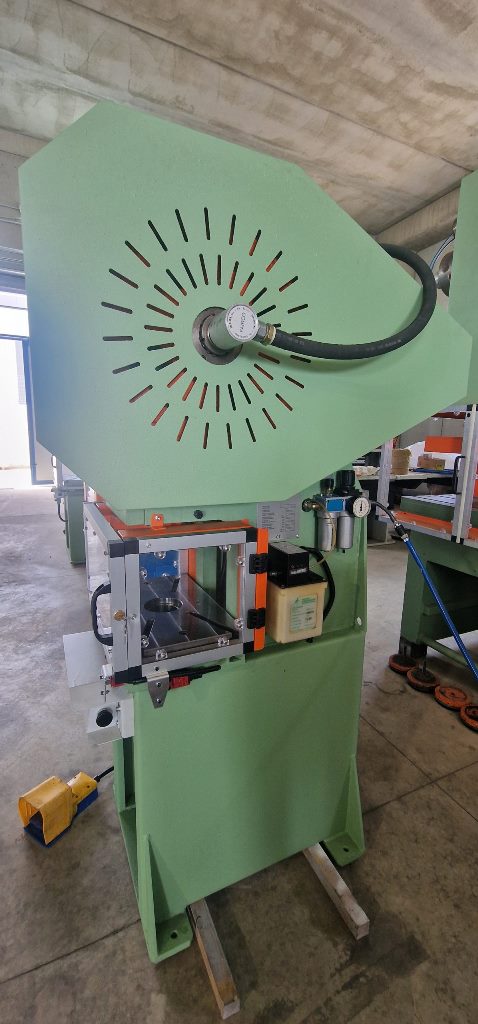

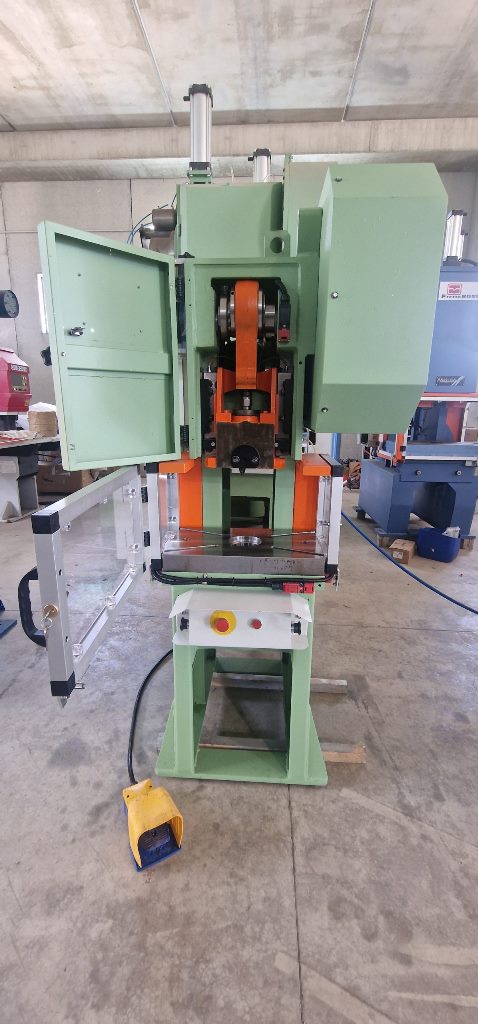

PRESS IMS T25-VE
Eccentric c- type
press - Used Machines
.jpg)
IMS
09934
09934
C-FRAME PRESSES
Free passage between the uprights mm: 220
Distance between the connecting rod axis and the uprights (recess) mm: 160
Hammer dimensions mm: 250x130
Worktop dimensions mm: 500x310
Minimum distance between work surface and hammer with
high adjustment and hammer all low mm: 275
Hammer adjustment mm: 50
Adjustable stroke mm: 0÷60
Shank hole diameter mm: 40
Number of shots per minute: 155
Engine power KW: 1.5
Total mass Kg: 950
Operating voltage V: 380
Frequency Hz: 50
Dimensions mm: H=1890; L=1000; P=980
Lubrication pump motor power kW: 0.09
USED MACHINES
IMAGES:
