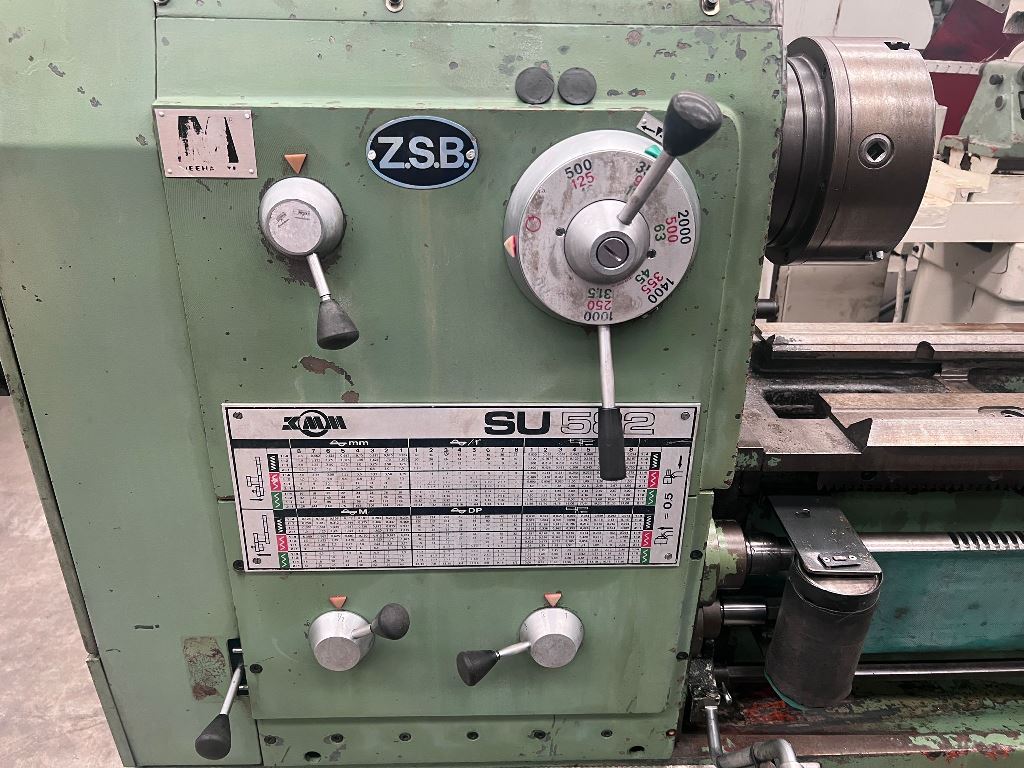

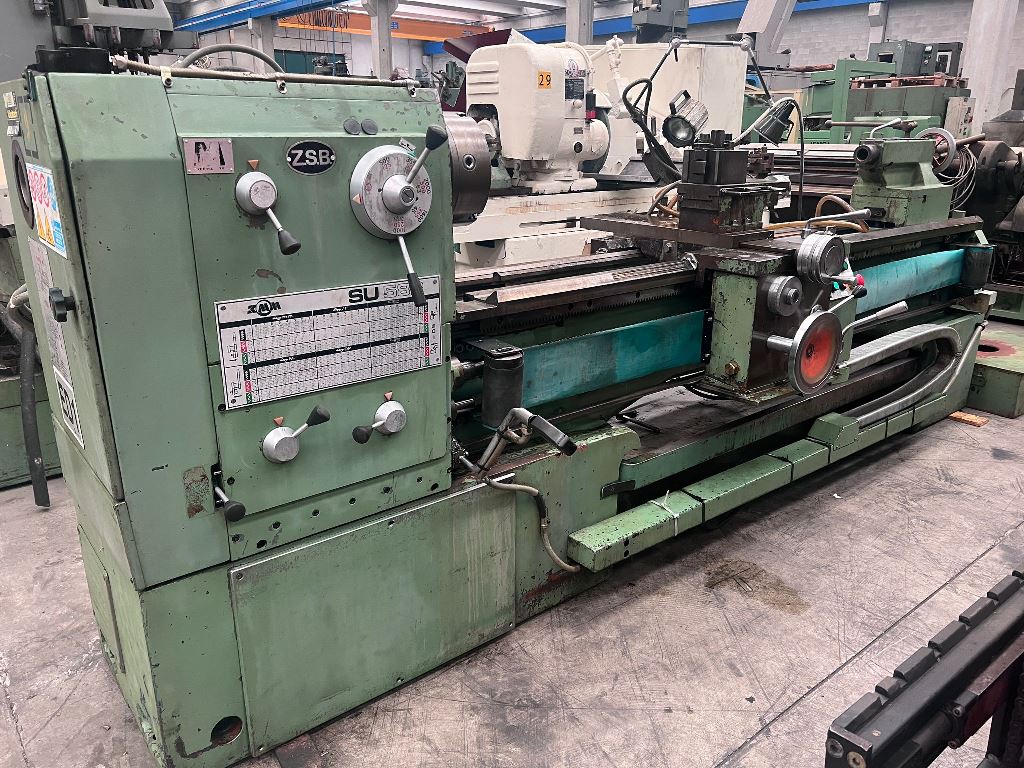

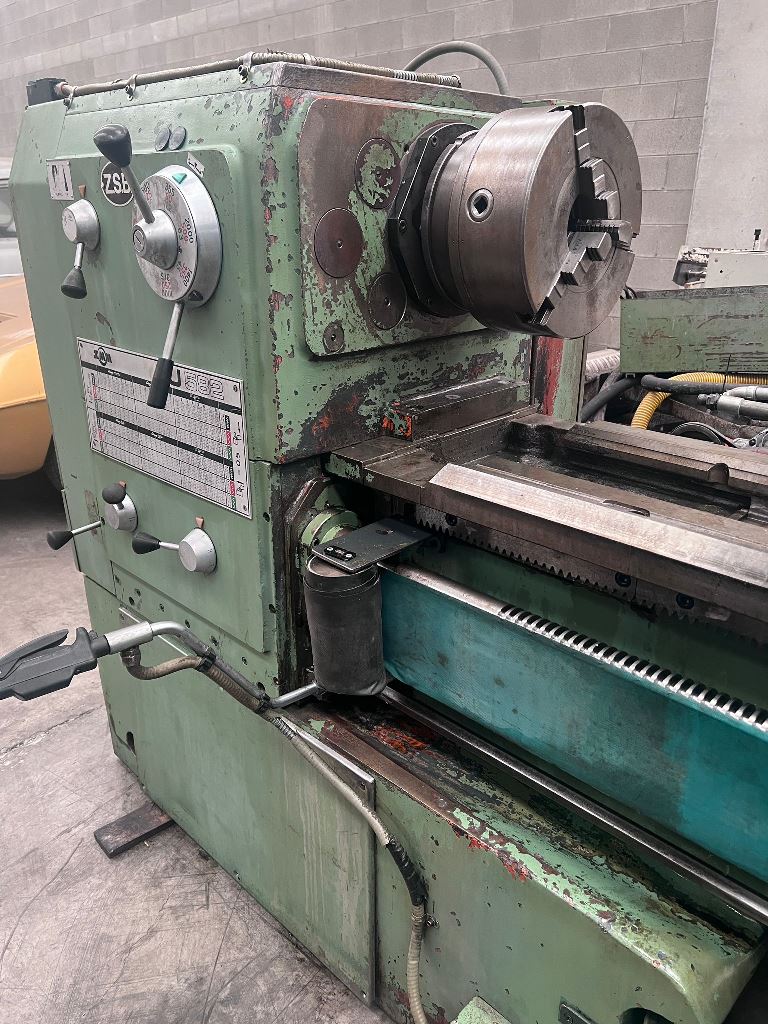

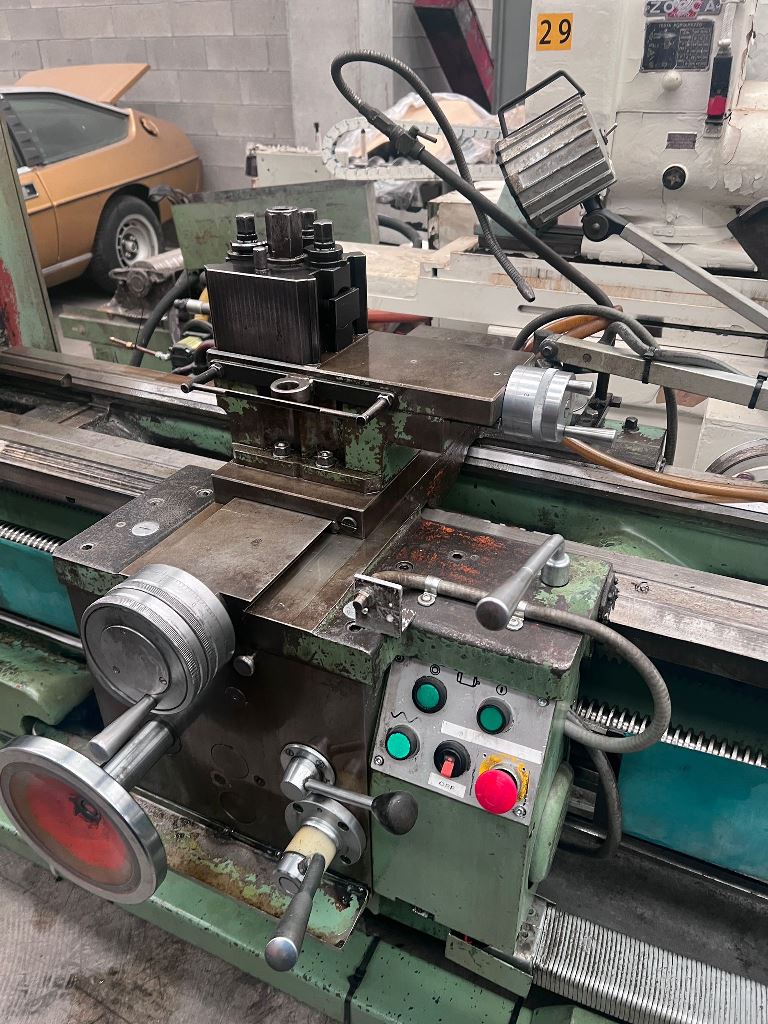

LATHE ZMM MOD. SU 582
Diameter up to 600 mm
lathe conventional - Used Machines
ZBS
09892
09892
Height of centers mm 285
Distance between centers mm 2000
Swing diameter on the bed mm 580
Swing diameter on the cross slide mm 380
Bed width mm 400
Spindle bore mm 72
Spindle speed rpm 2000
Motor power kW 7.5
Carriage stroke mm 255
Carriage stroke mm 140
Tailstock quill diameter mm 75
Tailstock quill cone 5 MK
Tailstock quill stroke mm 200
Approx. dimensions (length x width x height) mm 3550x1250x1630
Approx. weight Kg 3450
EQUIPPED WITH:
-3 jaw chuck diam. 270
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
