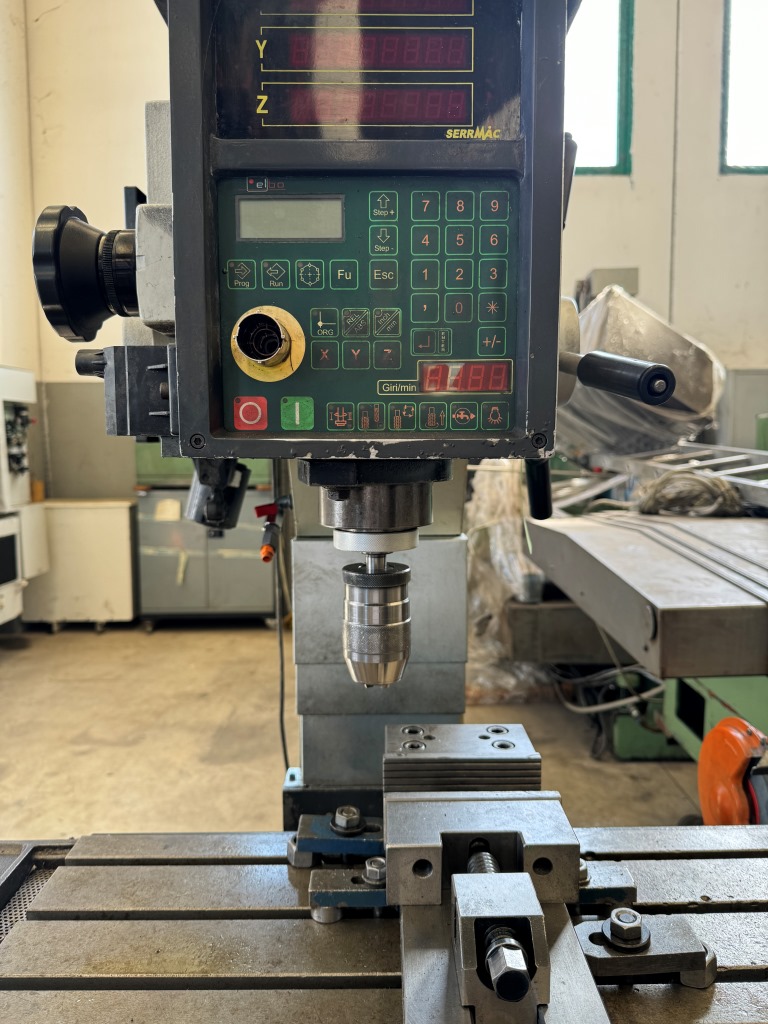

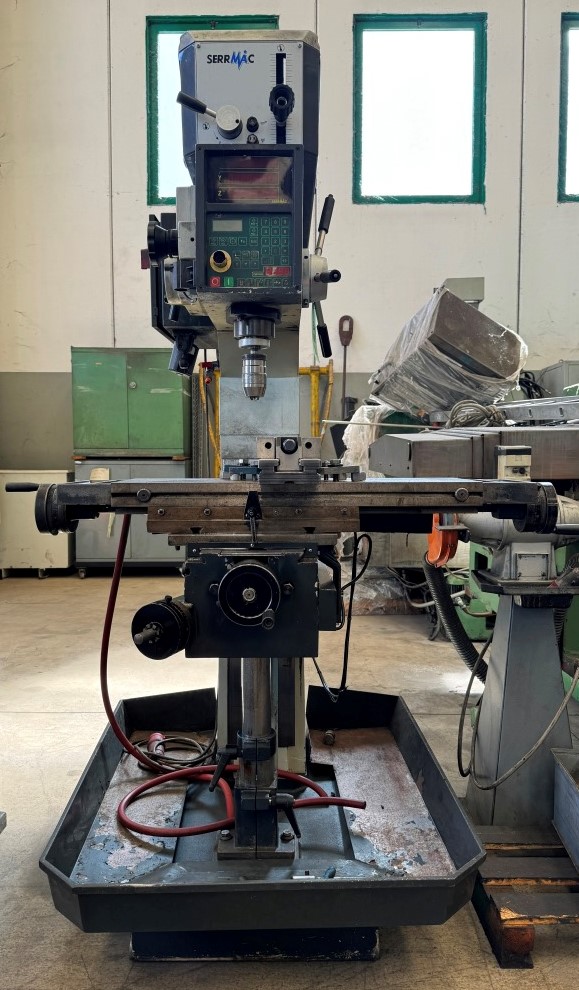

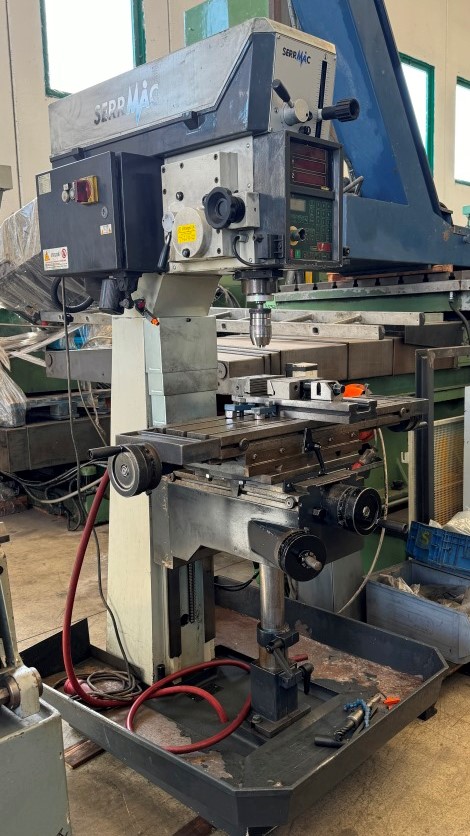

DRILLING SERRMAC TCS
Column/bench type
drilling - Used Machines
SERRMAC
09659
09659
WITH PRISMATIC GUIDES
Drilling capacity on steel (R=50): Diameter mm 40
Drilling on cast iron: Diameter mm 50
Spindle attachment: CM 5
Spindle motor power: kW 2.25 to 3
Spindle speed: 1/ min 32-2340
Spindle quill stroke: mm 145
X-axis travel with automatic feed: mm 520
X-axis motor rated torque: Nm 3.6
EQUIPPED WITH:
- Digital spindle speed tachometer
- Electromagnetic descent
- Potentiometer for X-axis speed (0 to 120%)
- Tapping cycle managed by PLC
- Table support
- Morse
USED MACHINE
YEAR 2007
FILL OUT OUR FORM FOR MORE INFORMATION
