SPARK ERODER ONA DATIC D360
Spark
edm electro discharge machines - Used Machines
ONA
09653
09653
TABLE:
Tank size mm 1200x800x380
Table dimensions mm 650x400
Max table load Kg 1100
CROSS TABLE:
Longitudinal X stroke mm 600
Cross Y stroke mm 400
HEAD:
Electrode-holder stroke 300 mm
Max electrode weight 200 kg
Max electrode weight with STATIC C axis 50 kg
Max electrode weight with DYNAMIC C axis 12 kg
MACHINE HEIGHT AND WEIGHT:
Height 2474 mm
Net weight 3900 kg
EQUIPPED WITH:
-Electrode changer 8 position
-C-axis 360 degrees
-Magnetic chuck
-Aspirator
-DATIC F60 power supply
USED MACHINE

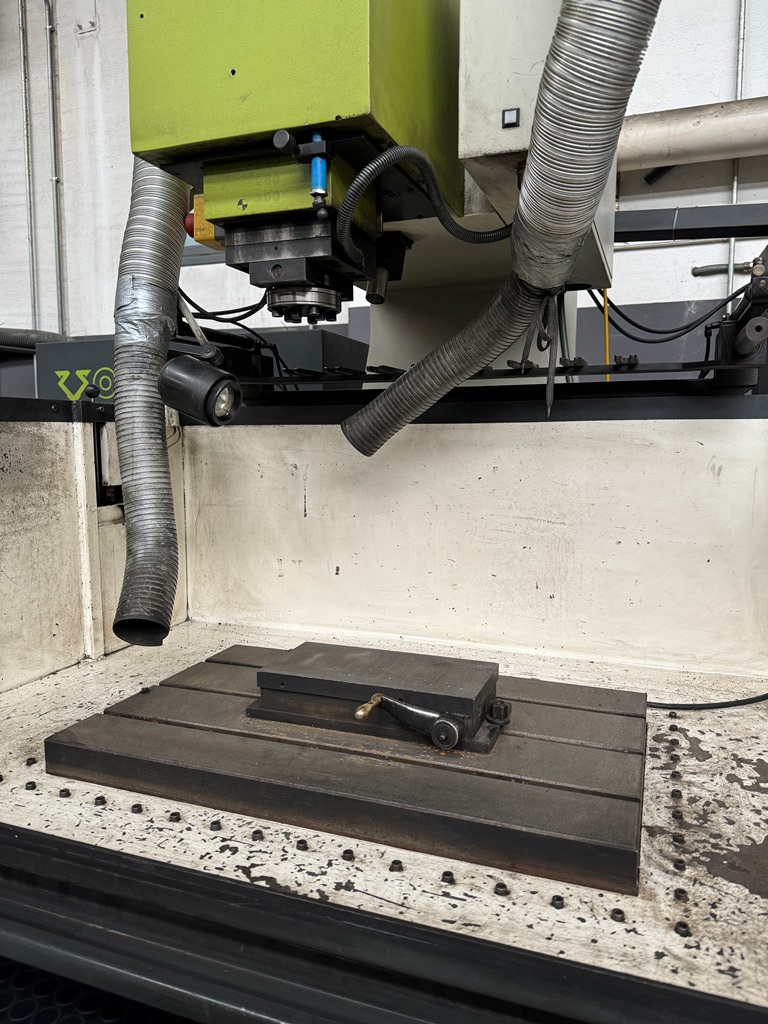

IMAGES:
