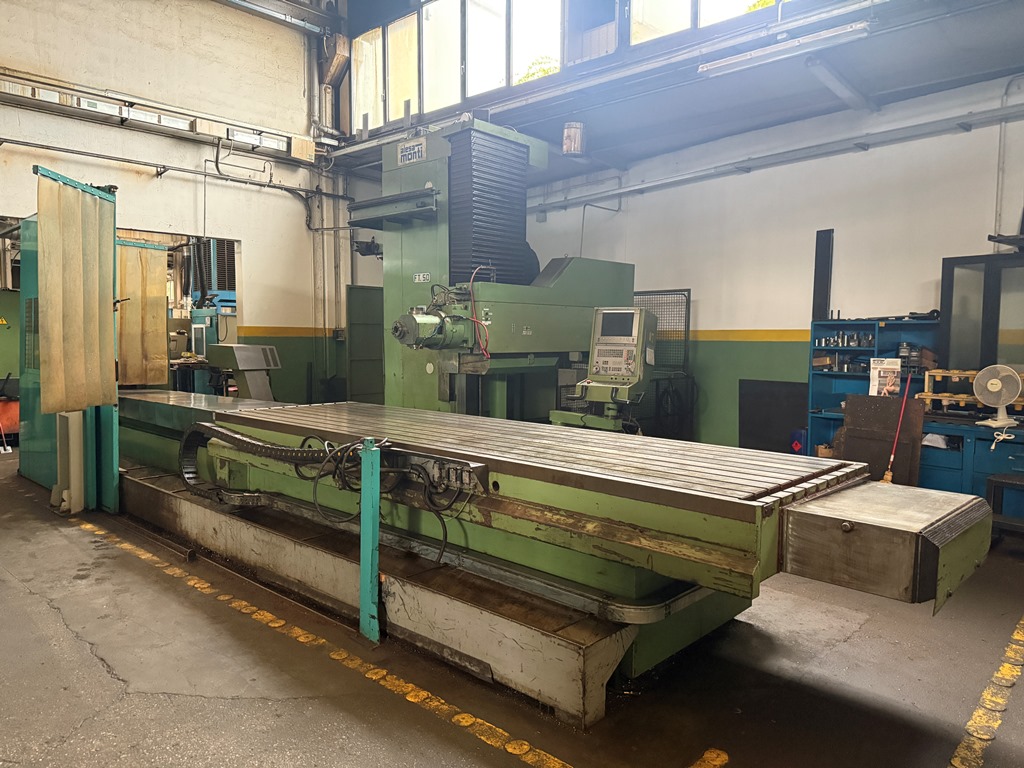

MILLING AUERBACH FBE 1200
Bed type
milling cnc - Used Machines
AVERBACH
09647
09647
CNC SELCA 3045
TABLE:
Size 1300x600
T-slots 5
Widht T-slots mm 18H8
Distance T-slots mm 100
Laod 2.000 kg
STROKES:
X axis longitudinal 1200 mm
Y axis cross 600 mm
Z axis vertical 600 mm
SPINDLE:
Toolholder taper DIN 69871 ISO 50
Speed range rpm 30:3500
Power 40% ED kW 16
Constant power kW 12
APPROX. OVERALL DIMENSIONS AND WEIGHT:
Weight Kg 6000
Overall dimensions (LxPxA) mm 3600x3640x2200
USED MACHINE
IMAGES:
