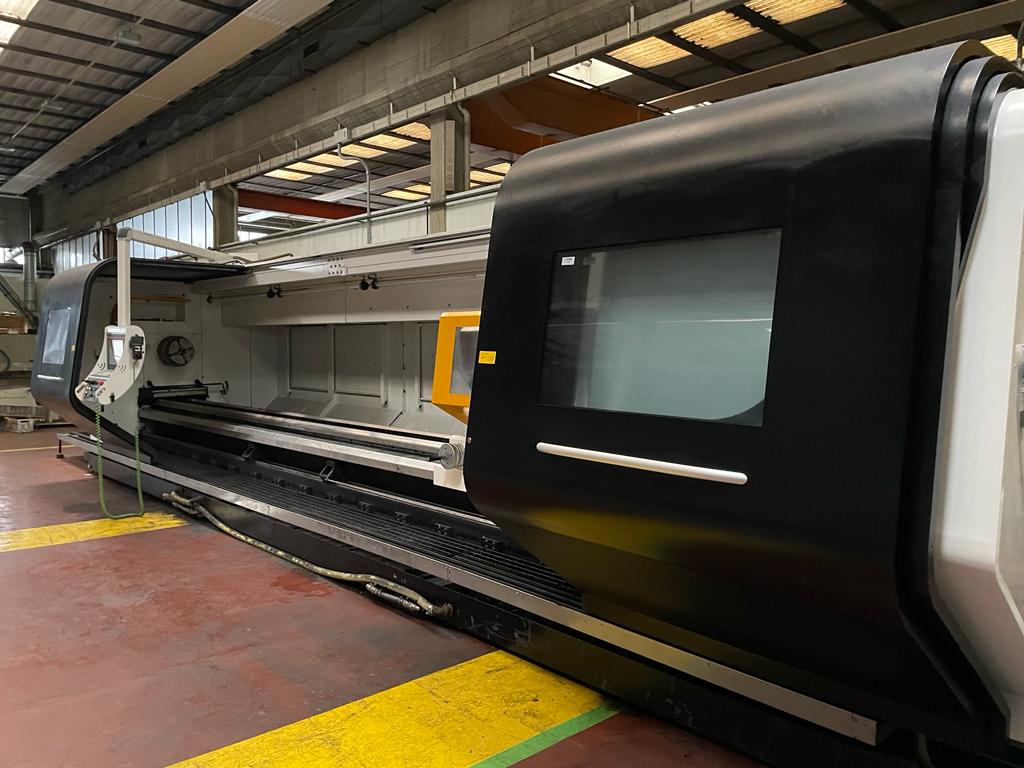

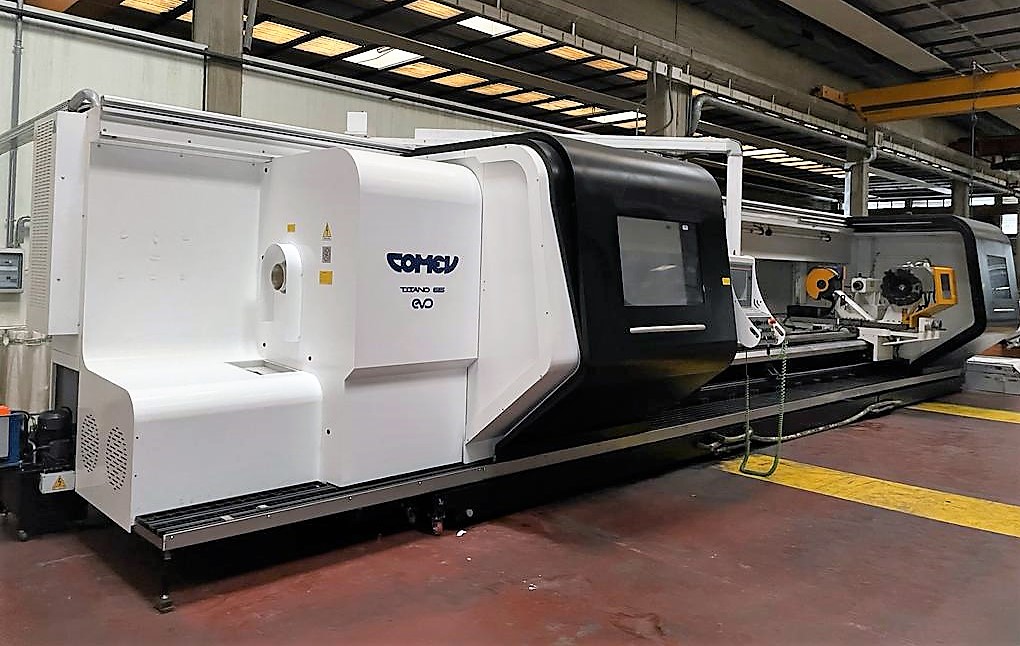

LATHE CNC COMEV TITANO 65 EVO
With live tools
09607
CNC D-Electron Z32
Center height 650 mm
Swing diameter on the bed mm 1300
Swing diameter on the cross slide 1320 mm
Distance between centers 8000 mm
Bed width mm 690
Spindle bore mm 160
Spindle nose CAM-LOCK 11''
Spindle speed n.3 range rpm 0-800
Spindle power kW 39
Grinding wheel max 400 mm and 2234 rpm max speed
Grinding wheel min 250 mm and 3000 rpm max speed
Tailstpck quill diameter 140 mm
Tailstock Morse taper C.M. 6
EQUIPPED WITH:

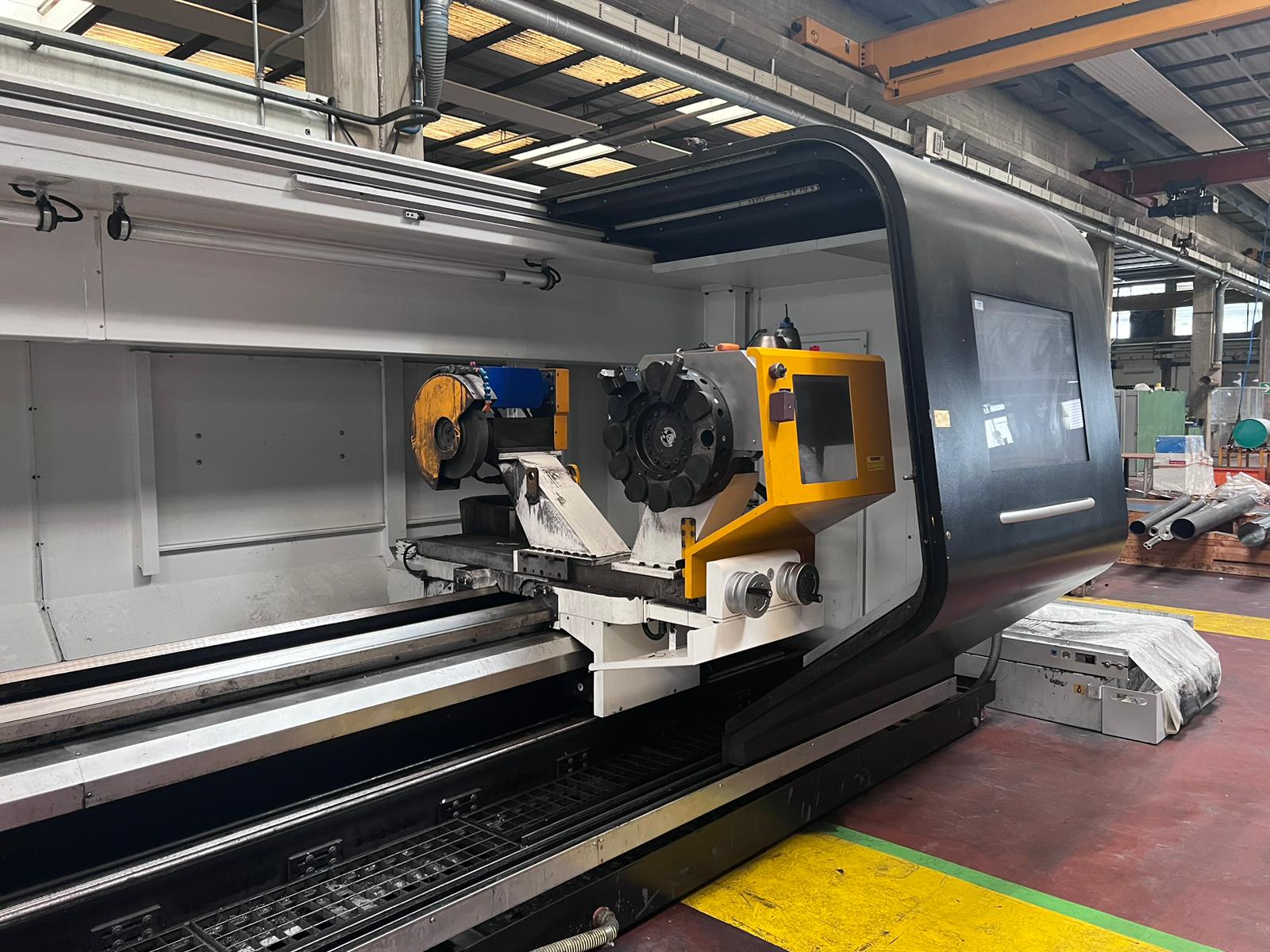

-Automatic Baruffaldi disk type toolpost with 12 live tools positions
Tools nose type VDI 50
-Grinding head motor power 7.5 kW
-N.02 Steady rest
-Paper Filter
USED MACHINE
YEAR 2019
