MILLING MECOF MOD. CS 1040
Floor type
milling cnc - Used Machines
MECOF
09531
09531
FLOOR TYPE

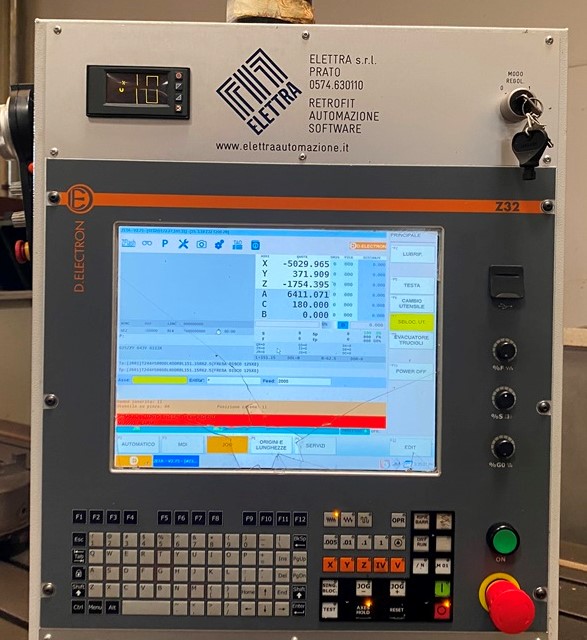

CNC D-ELECTRON Z32
Table dimensions mm 10.000x1060
T-slots mm 22H7
T-slots distance mm 175
Longitudinal stroke axis X mm 8300
Vertical stroke axis Z mm 1900
Cross stroke axis Y mm 1000
Spindle motor Kw 36
Spindle speed Rpm 10:2000
Spindle taper ISO 50 DIN 69871
Automatic universal milling head:
-A Axis indexing 1°
-B Axis indexing 3°

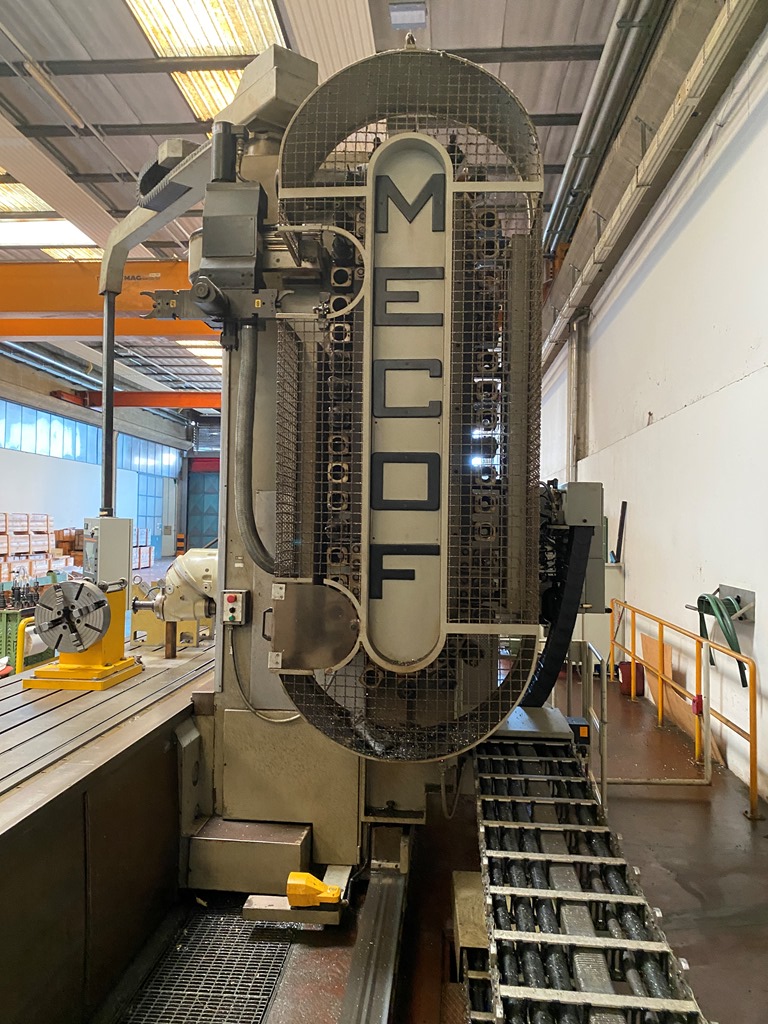

Tool changer 40 positions
Max installed power kW 160
EQUIPPED WITH:

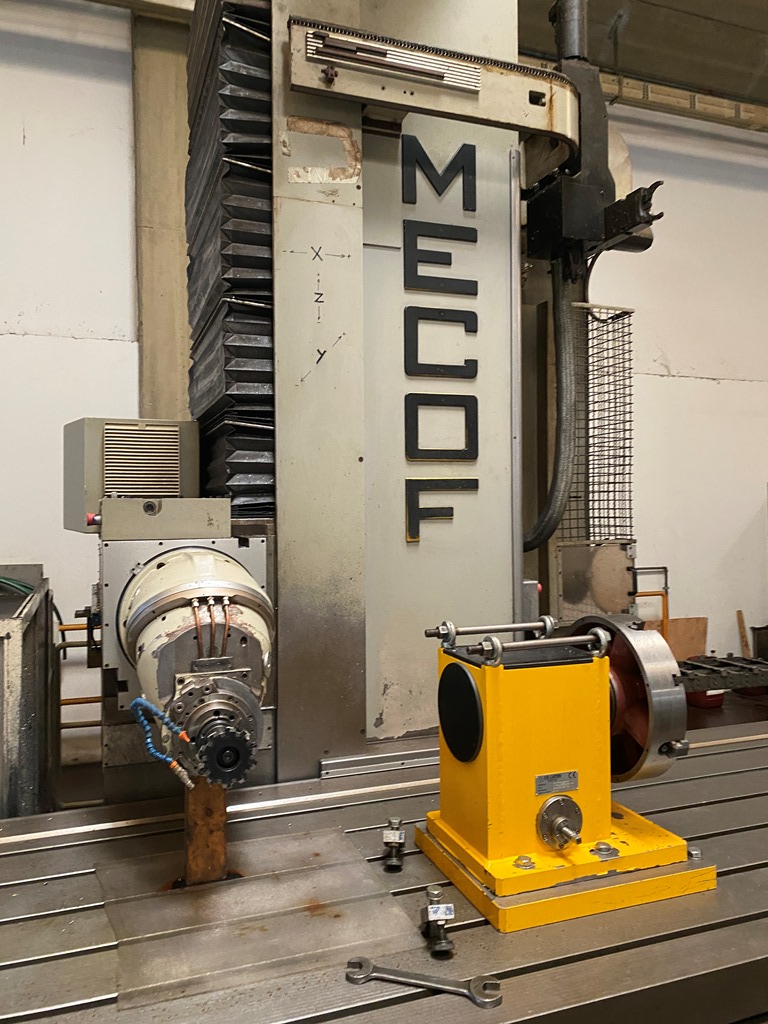

-Rotary table diameter 400 mm and counter-support
-Chip conveyor
USED MACHINE
RETROFIT 2019
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
