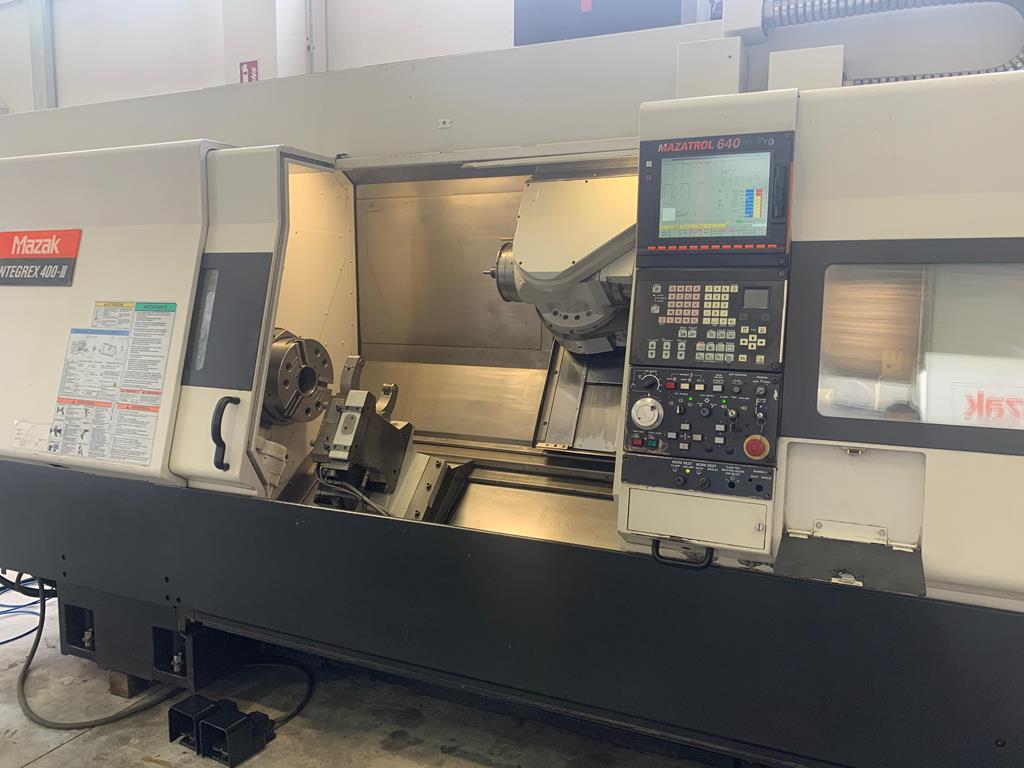

CNC LATHE MAZAK INTEGREX 400 III
Multitasking
09677
WORKPIECE DIMENSIONS:
Max workpiece diameter: 760 mm
Max diameter on carriage: 660 mm
Max turning lenght: 1504 mm
CNC

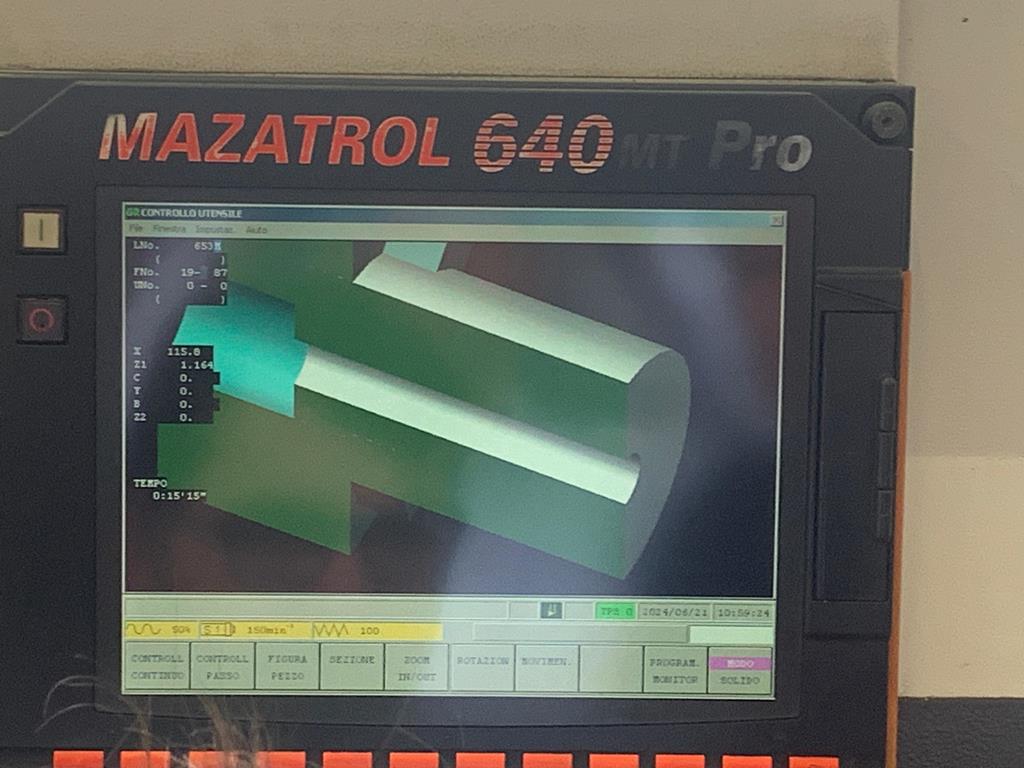

Cnc: Mazatrol 640MT Pro CNC Control System
MAIN SPINDLE:
Spindle nose: ASA8”
spindle hole: ø112 mm
Internal bearing diameter: ø150 mm
Chuck diameter: 304 mm
Max power: 30 Kw
C axis resolution: 0,0001 °
C axis speed: 555 Rpm

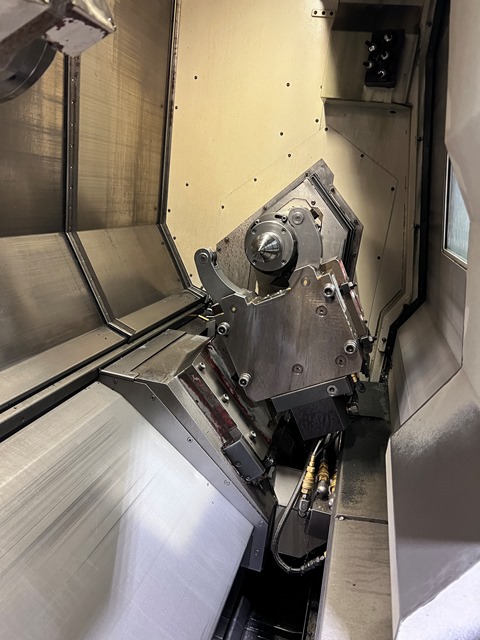

TAILSTOCK
Taper: MT5
Posiziomento automatico asse b: 1545 mm
ATC
Diametro max utensile: 90 mm
Diametro max ut con posti adiacenti liberi: 125 mm
Lunghezza max utensile: 400 mm
Posizioni: 40

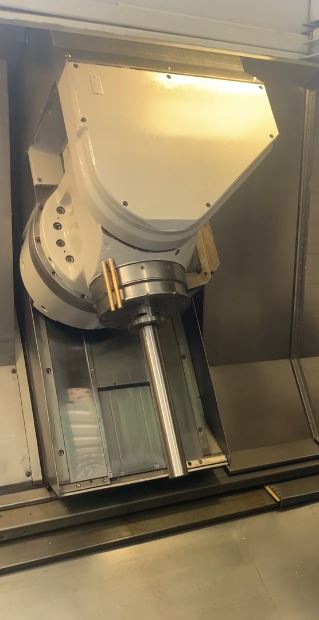

TESTA DI FRESATURA
Attacco mandrino: Capto C6
B axis travel: 225° (-0/+195) °
B axis resolution: 0,0001 °
spindle speed: 12.000 rpm
spindle power: 18.5 Kw
x axis travel: 630 mm
x axis feedrate: 38 m/min
Z axis travel: 1585 mm
z axis feedrate: 26 m/min
y axis travel: 265 mm
y axis feedrate: 38 m/min
Machine total weight: 12300 Kg
Overall dimensions: 4290x2336x2798 mm

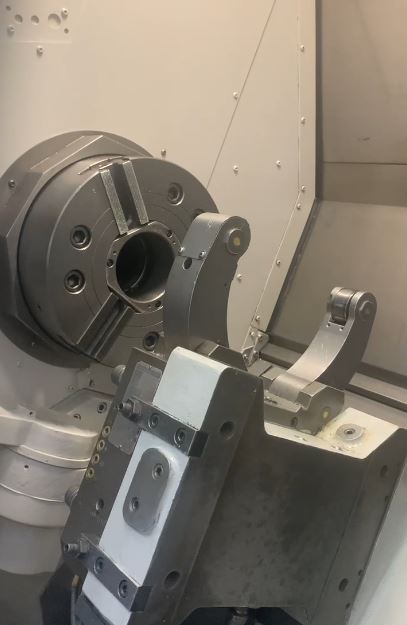

Steady rest: SMW Autoblock SLU 3.2-ZS3 50-200mm
Chuck: Kitagawa B212
Linear scales X,Y,Z: YES
Chip conveyor: YES
Automatic tool setter: YES
coolant pump: high pressure 15 bar
USED MACHINE
