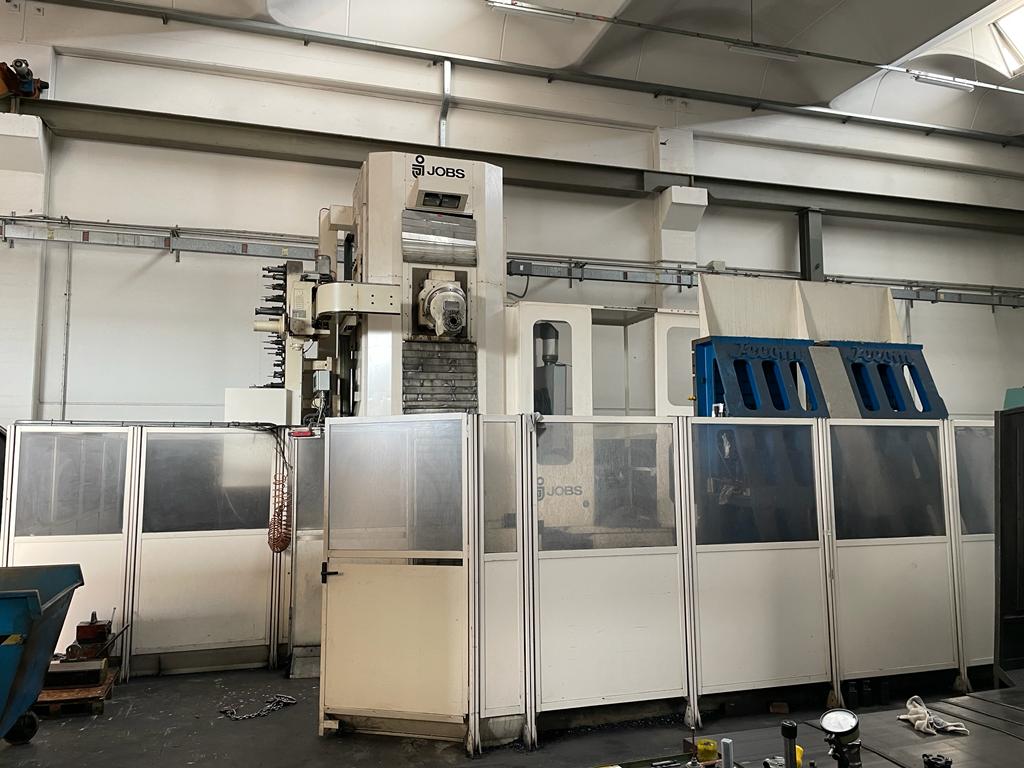

MILLING JOBS MOD. THOR 100

Floor type

milling cnc - Used Machines

https://www.bentivogliomacchineutensili.it/public/import/09418/Sintetica/thor2.jpg

VIDEOS:

JOBS
09418

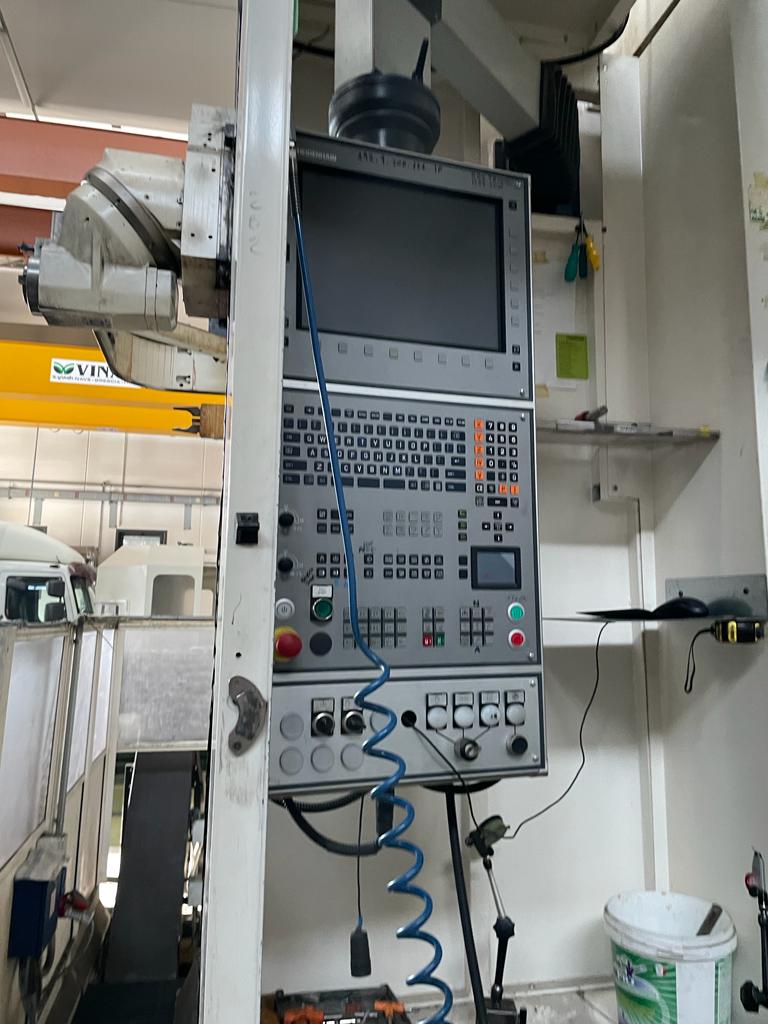

CNC Heidenhain TNC530 HSCI with handwheel HR 410
X-axis stroke mm 4000
Y-axis stroke mm 2500
Z axis stroke mm 1500
X,Y,Z axis max speed m/min 25
X,Y,Z axis max acceleration m/sec2 0.75
Max thrust X,Y,Z axes N 10000
X axis transmission rack (dual drive), Y, Z ball screws
Pressurized optical scales
8-pole asynchronous power motor, star-delta connection, water-cooled integrated in the sleeve; double electronic speed range, 6000 W refrigeration unit
Hydraulic balancing system
Automatic compensation system of the quill dynamics
Hydropneumatic and Electrical Cabinets (Rittal) grounded - 400 Vac 50 Hz CE
Work area lighting; Machine counter and spindle
Operator platform on board the machine
EQUIPPED WITH:

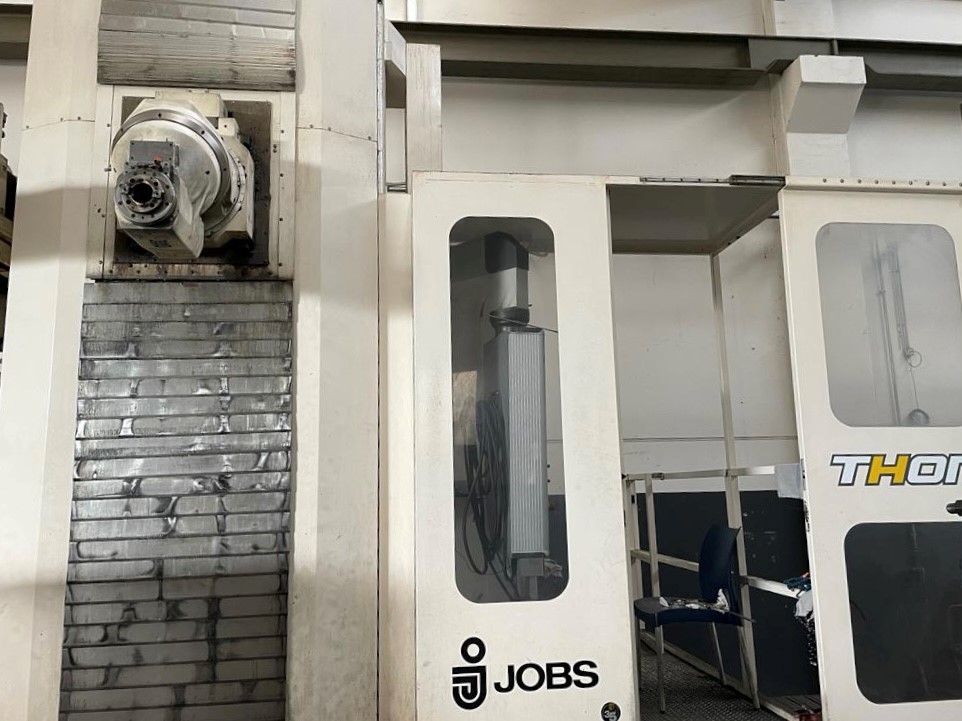

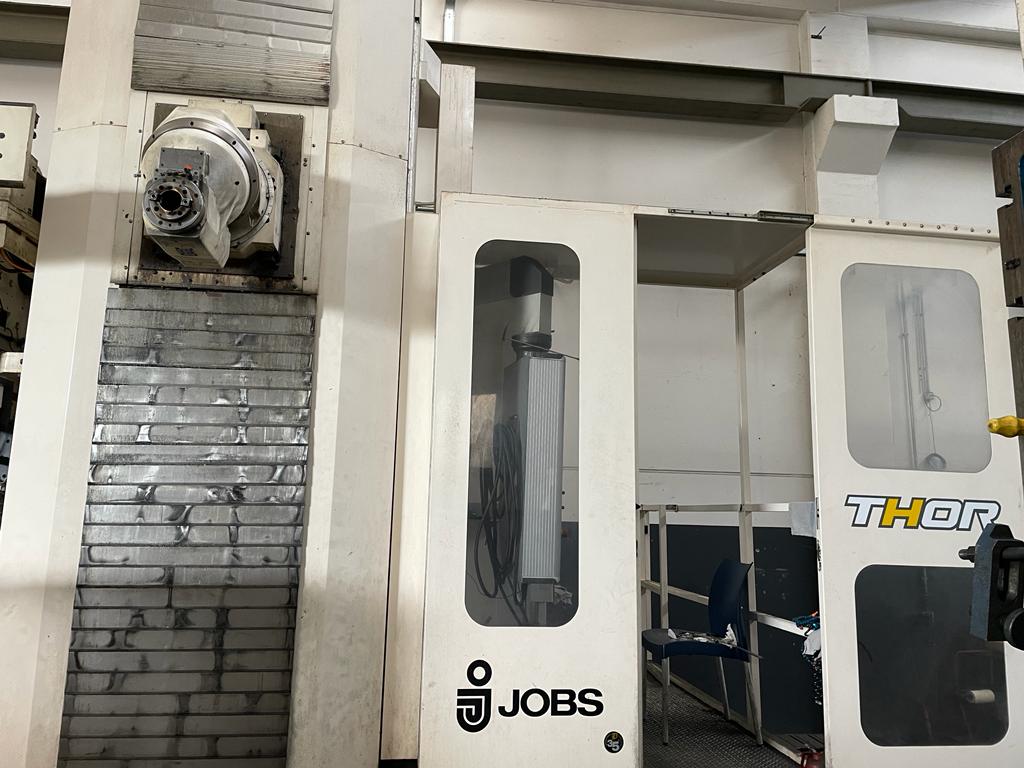

-KOSMO 3 45° universal fixed head:
Anterior positioning indexed 0.02°
Posterior positioning indexed 0.02°
-Spindle kW 44(35) - Nm 1005(800) - rpm 5000 - ISO 50

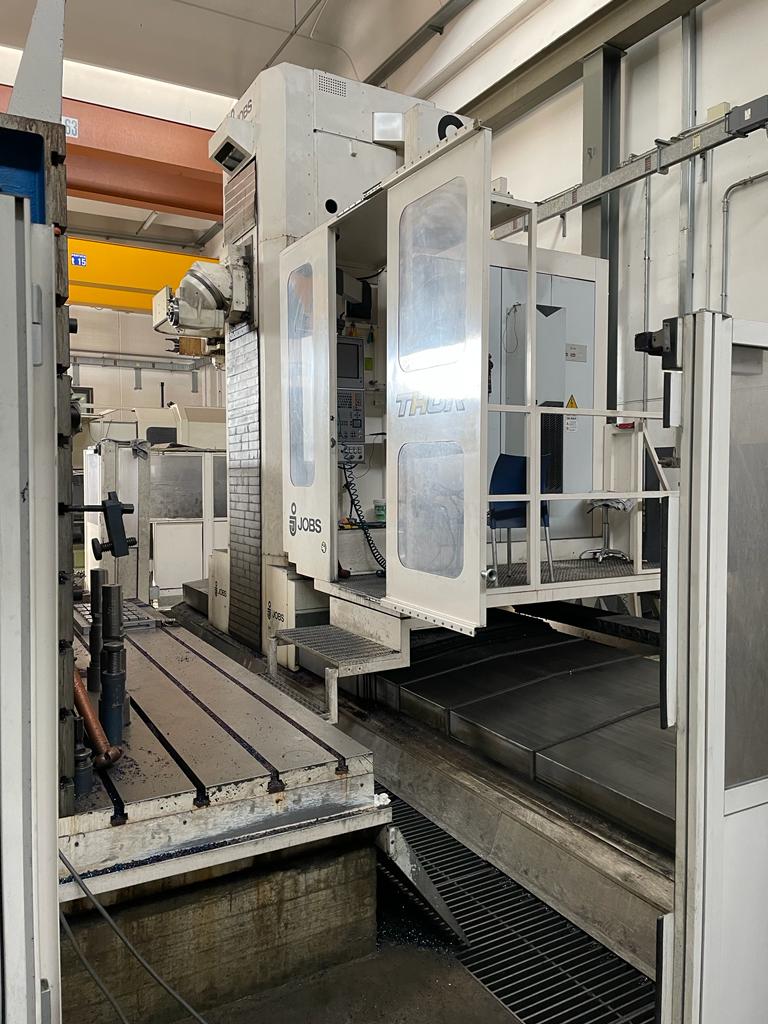

-Workpiece table mm 4000x2000x250

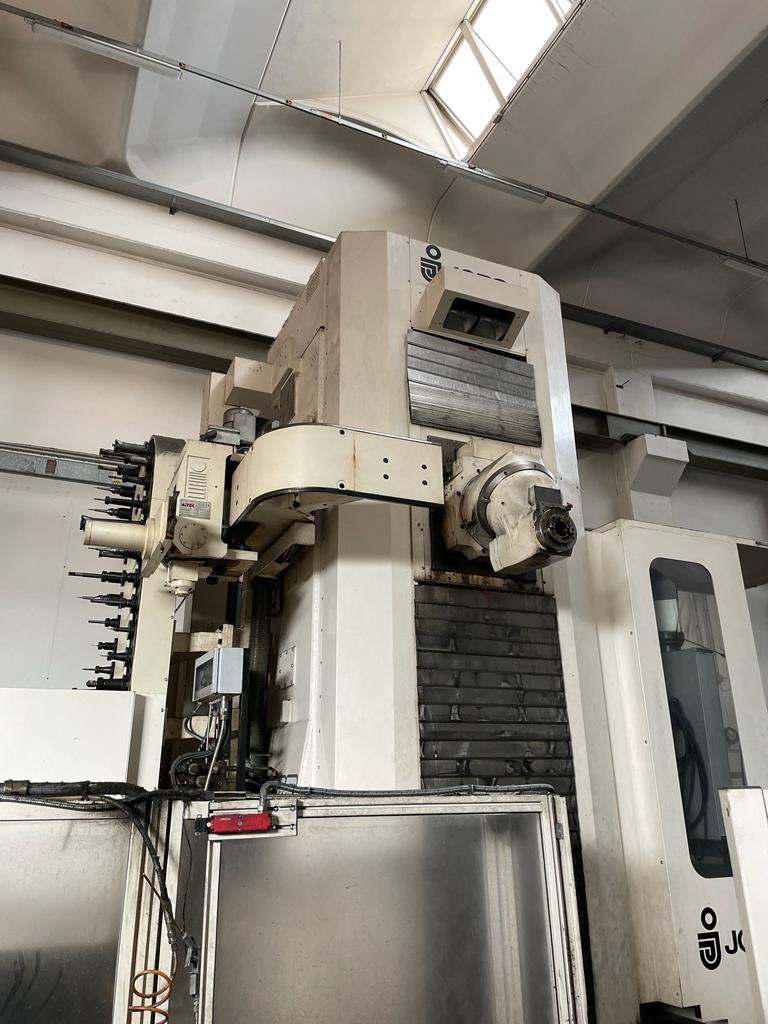

-Chain tool magazine on board the machine 40 places IS050 with exchanger arm, complete with support and management software
-Tool coolant system - external flow (nozzles) low pressure (15 bar) + internal tool high pressure (50 bar) - tank lt 2000 - pump lt/min 42 - 50 bar to the pump - self-cleaning filter um 25
-Chip conveyor belt - longitudinal
-Protection fences including panels and sheet metal sliding door with lexan window,
H 2000 mm Light 4000 mm for piece loading/unloading

USED MACHINE
YEAR 2014
