MILLING GANTRY/PORTAL PIETRO CARNAGHI MOD. UNIMILL 35 CA
09397

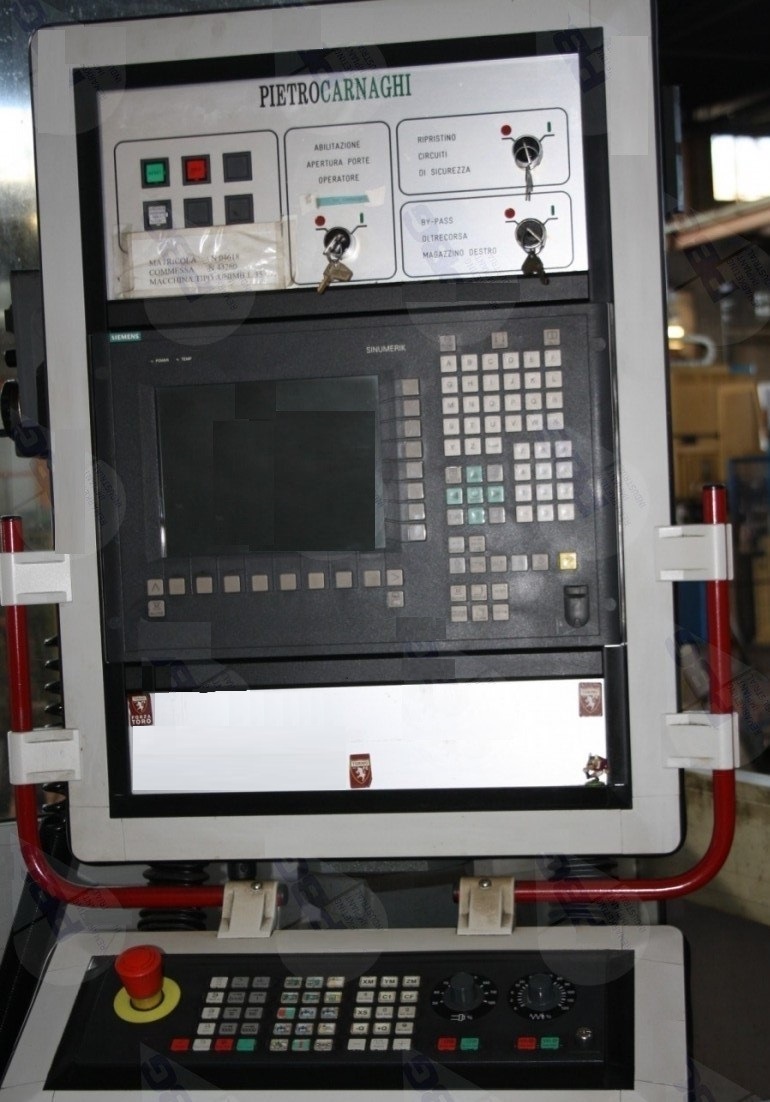

CNC SIEMENS
TECHNICAL DETAILS:
Distance between frames mm 3500
Maximum height between table top and spindle nose mm 1850
Working table dimensions mm 3000x16000
Working table capacity kN/m2 50
PORTAL:
Portal stroke (X axis) mm 16000
Portal feed speed (X axis) mm/min 0.5-10000
Portal rapid speed (X axis) mm/min 20000
MILLING HEAD:
Head section mm 480x480
Cross travel of the carriage on the crossrail - Y axis mm 4000
Vertical travel of the head - Z axis mm 1600
Spindle rotation speed in 2 ranges
-1 range rpm 6-185-750
-2 range rpm 25-750-3000
Spindle motor power (S1) kW 37
Max spindle torque at 185 rpm (1st range) Nm 1900
Y and Z axis feed speed:
-1 mm/min infinitely variable range 0.5-10000
Z axis rapid speed mm/min 20000
Y-axis rapid speed mm/min 40000
COMPLETE WITH:
-Automatic tool clamping
-Automatic clamping of accessories
-3 positions tool holder disk magazine
-120 positions tool holder chain magazine
-TV-35 VERTICAL MILLING AND DRILLING HEAD:
Type DD210
Distance between spindle and head plate mm 175
Spindle taper DIN 2079-50-AT4-CC
Spindle nose DIN 2979-B50
DIN 69871-B50 shank
DIN 69872-B28 tie rod
Automatic head clamping on machine
Head clamping force on machine daN 10000
Automatic tool clamping
Tool clamping force in the head daN 1900
Spindle speed 8-3000 rpm
Max power at 175 rpm kW 35
Max torque at 175 rpm Nm 1900
Input/output transmission ratio 1:1
Front flange coolant through spindle
Spindle air blowing system
Max bearing temperature 60 degrees
-TS-35 HORIZONTAL MILLING AND DRILLING HEAD:
Type DD230
Distance between spindle and head plate mm 200
Spindle taper ISO 50
Spindle nose according to DIN 2079-50 AT4 CC
Automatic tool clamping
DIN 6987-B50 shank
DIN 69872-B28 tie rod
Spindle speed 6-3000 rpm
Automatic head clamping on machine
Max power at 175 rpm kW 35
Max torque at 175 rpm Nm 1900
Input/output transmission ratio 1:1
C2 axis positioning 144x2.5°
C2 axis rotation speed rpm 3
Front flange coolant through the spindle
Spindle air blowing system
Max bearing temperature °C 60
-TVL S 400 VERTICAL MILLING AND DRILLING HEAD:
Type DD280SS
Distance between spindle and head plate mm 175
Spindle taper DIN 2079-50-AT4-CC
Spindle nose DIN 2979-B50
DIN 69871-B50 shank
DIN 69872-B28 tie rod
Automatic head clamping on machine
Head clamping force on machine daN 10000
Automatic tool clamping
Tool clamping force in the head daN 1900
Spindle speed 8-3000 rpm
Max power at 175 rpm kW 35
Max torque at 175 rpm Nm 1900
Input/output transmission ratio 1:1
Front flange coolant through spindle
Spindle air blowing system
Max bearing temperature °C 60
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
