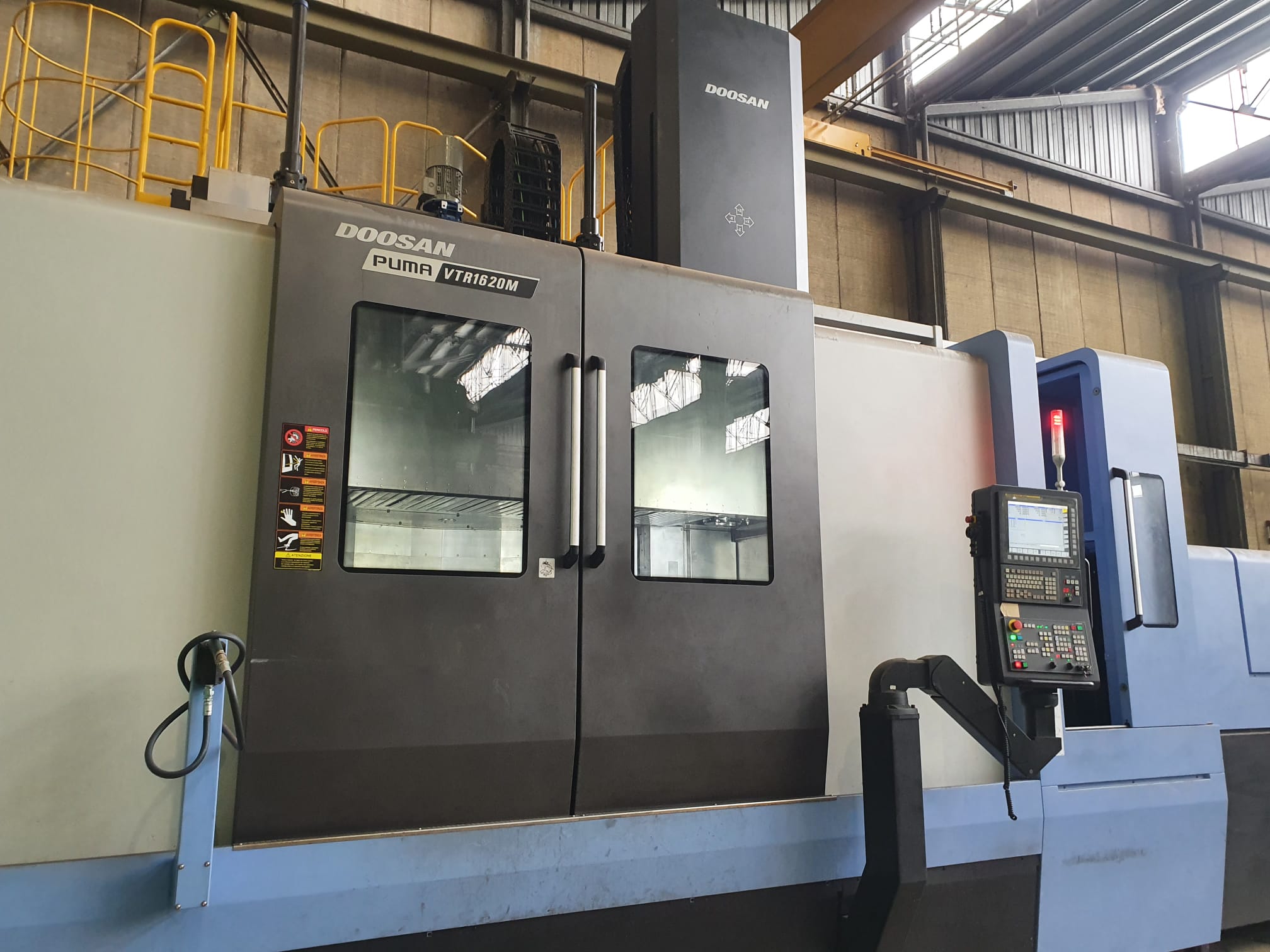

LATHE DOOSAN PUMA VTR1620M

lathe vertical - Used Machines

VIDEOS:

DOOSAN
09333

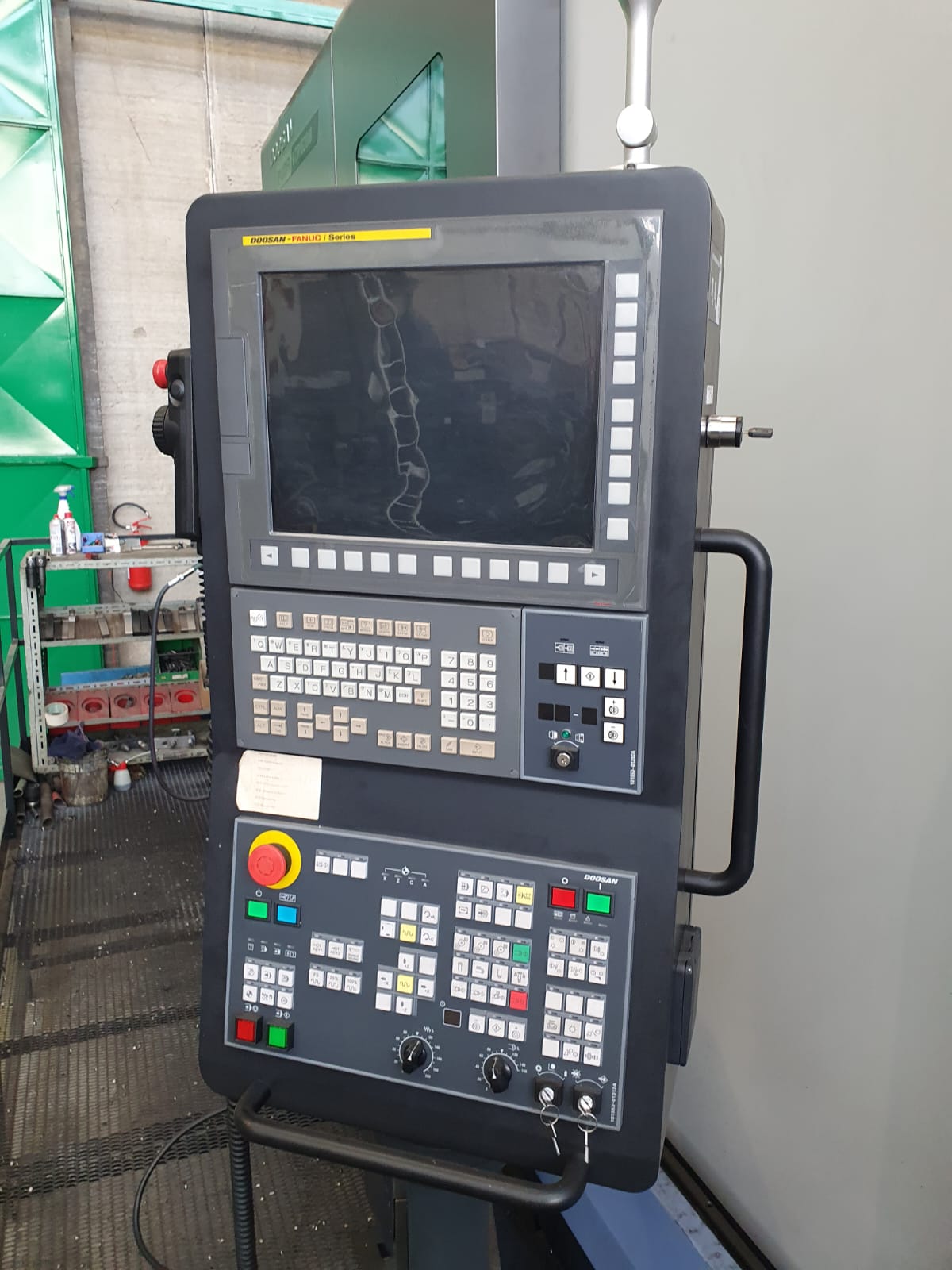

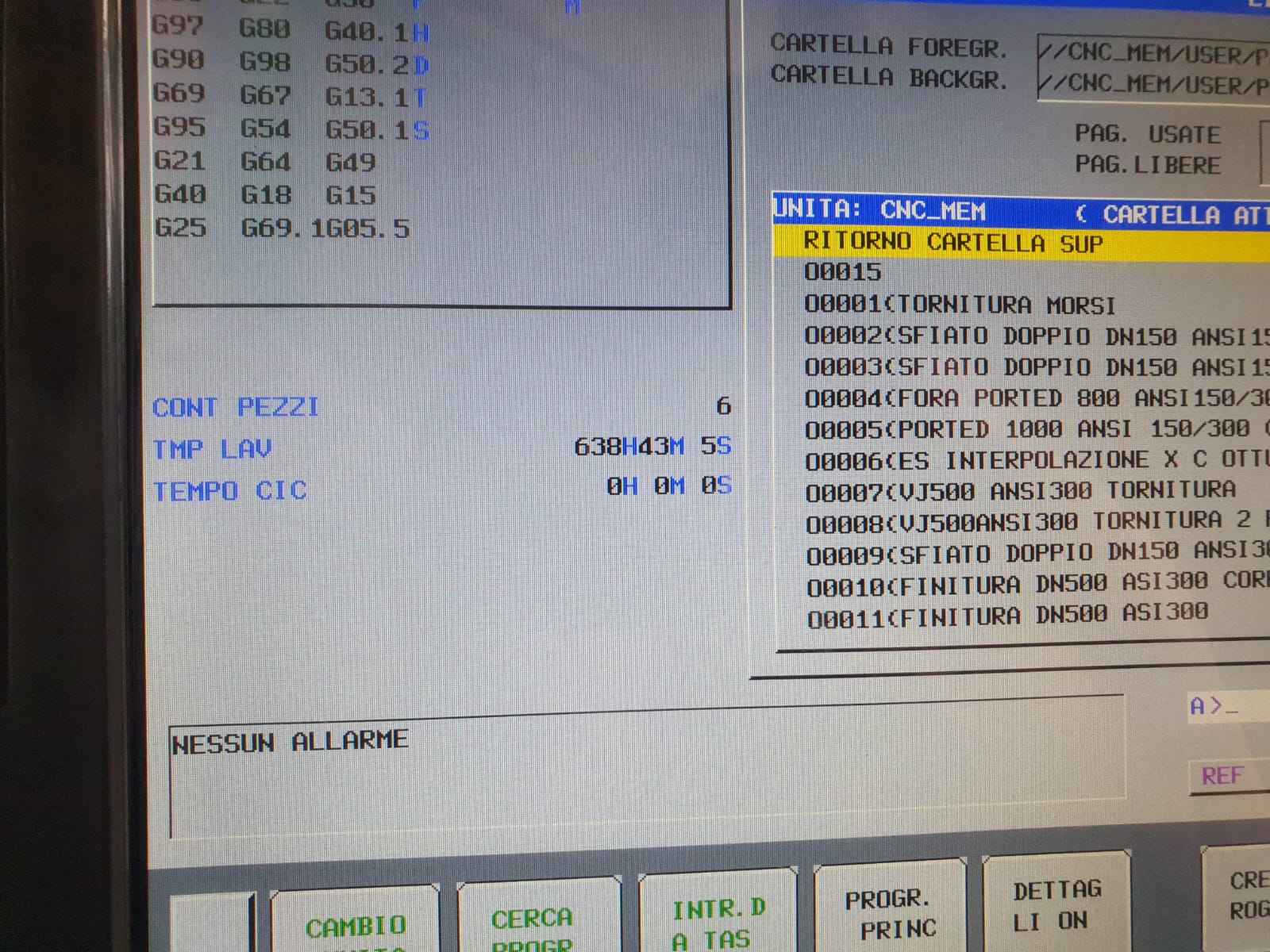

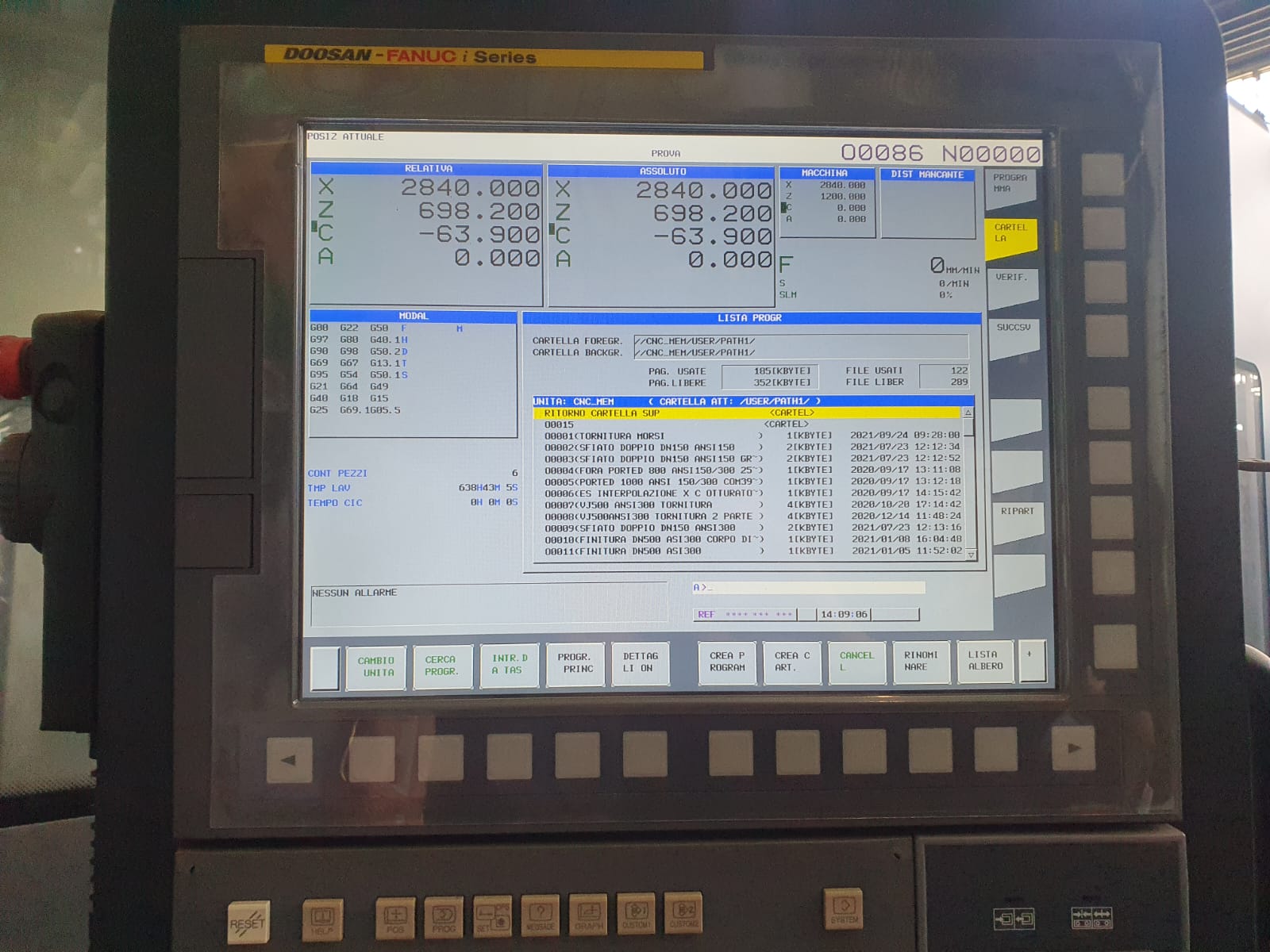

CNC FANUC i PLUS
CAPACITY:
Swing over bed mm 2100
Max turning diameter mm 2000
Max turning height mm 1800
Max allowable worpiece weight Kg 10000
STROKES:
Axis X mm -800/1420
Axis Z mm 1200
Axis W mm 840
SPINDLE:
Spindle speed rpm 300
Spindle motor power (S3 60%/cont.) kW 45/37
Min. spindle indexing (axic C) gradi 0.001

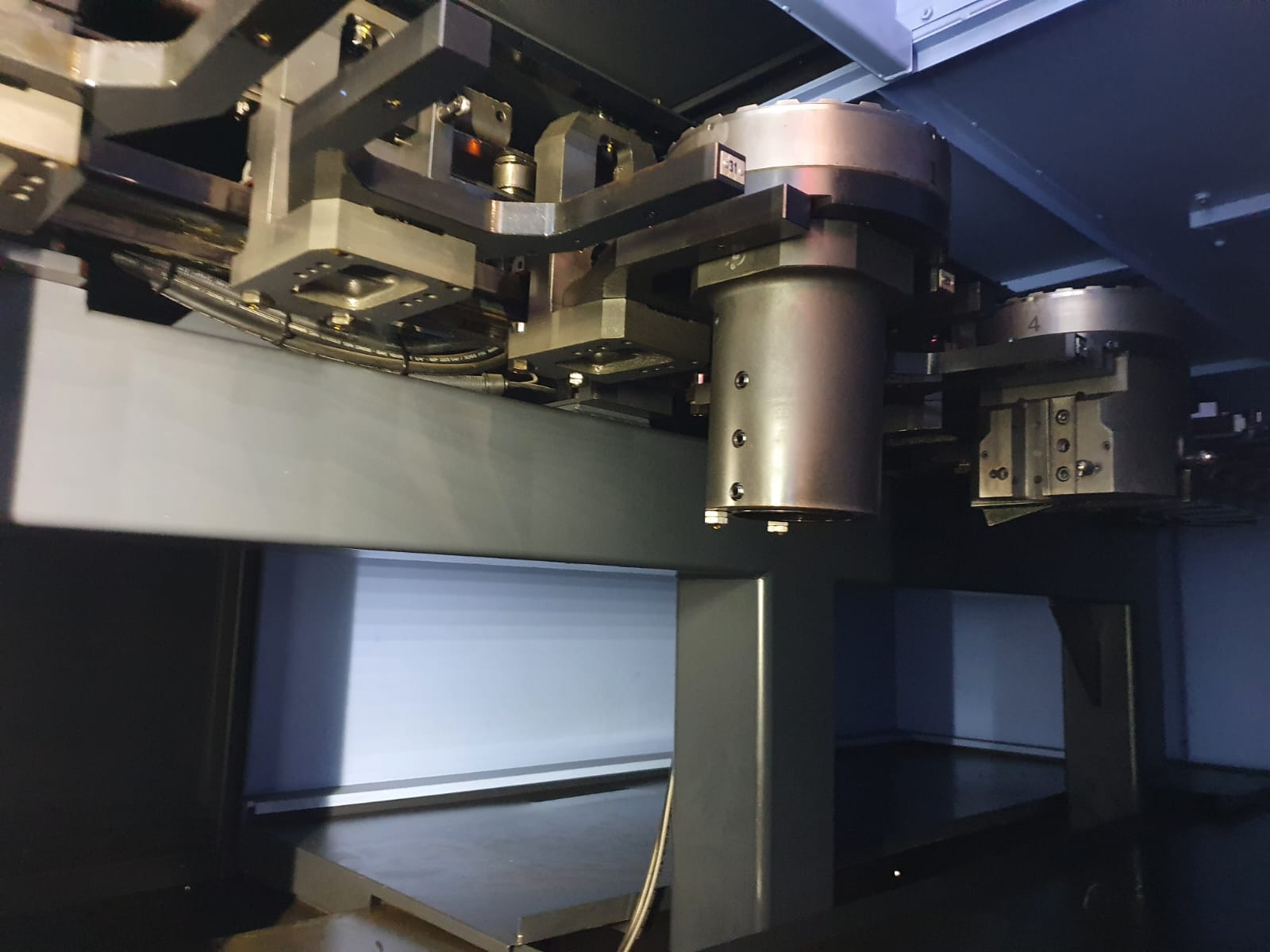

TOOL MAGAZINE:
Tool magazine 34 positions
Max tool lenght vertical:
-turning mm 590
-milling mm 650
Max tool lenght horizontal:
-turning mm 200
-milling mm 200
Boring bar diameter mm 100
RAM:
Ram size mm 260x260
MILLING SPINDLE:
Max spindle speed rpm 3000
Motor power (S3 25%/60%/cont.) kW 18.5/15/11
MACHINE DIMENSIONS AND WEIGHT:
Lenght mm 6500
Width mm 4757
Height mm 6345
Weight Kg 40000
EQUIPPED WITH:
-Angled head ISO 50 - 3000 rpm

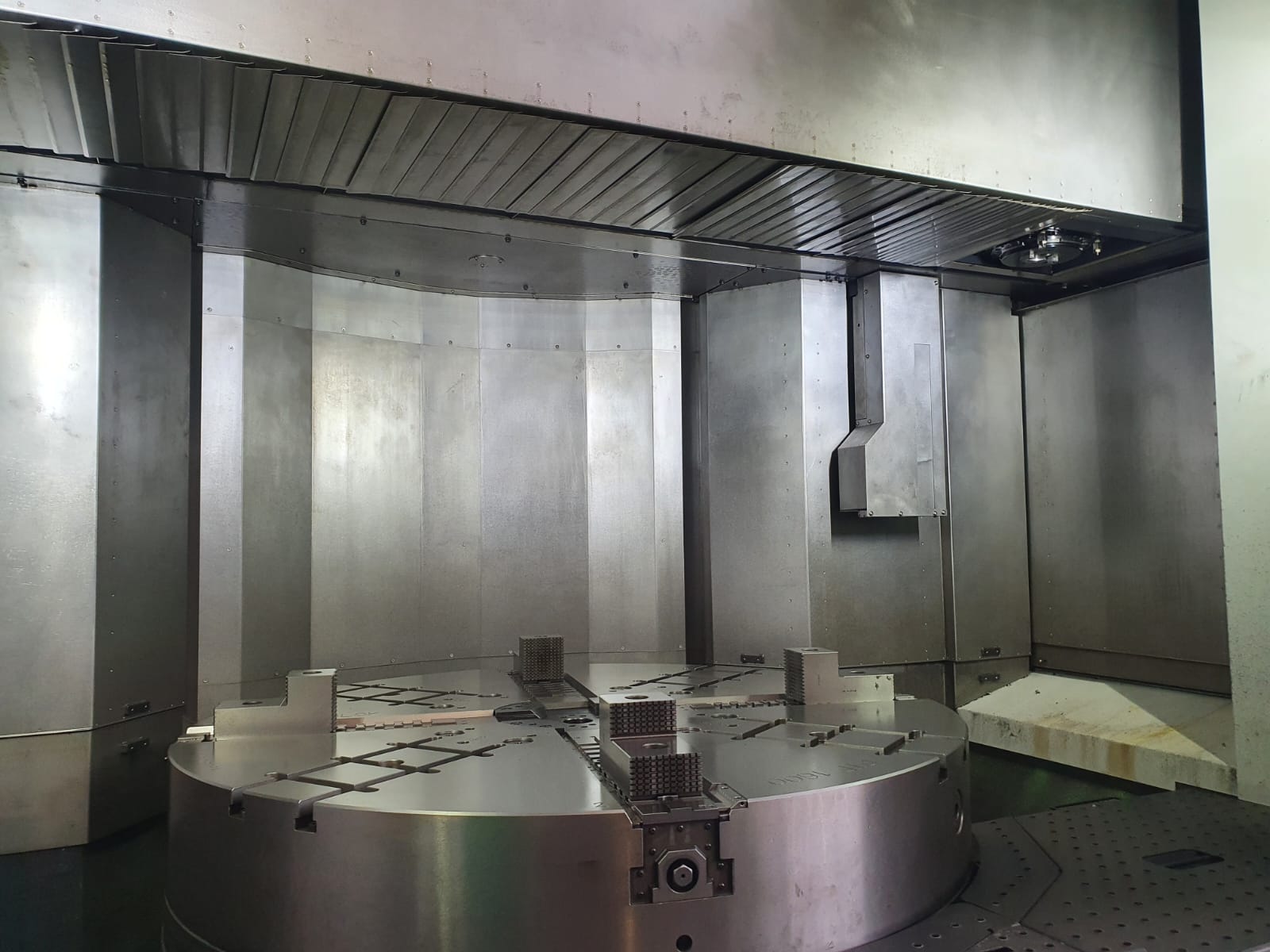

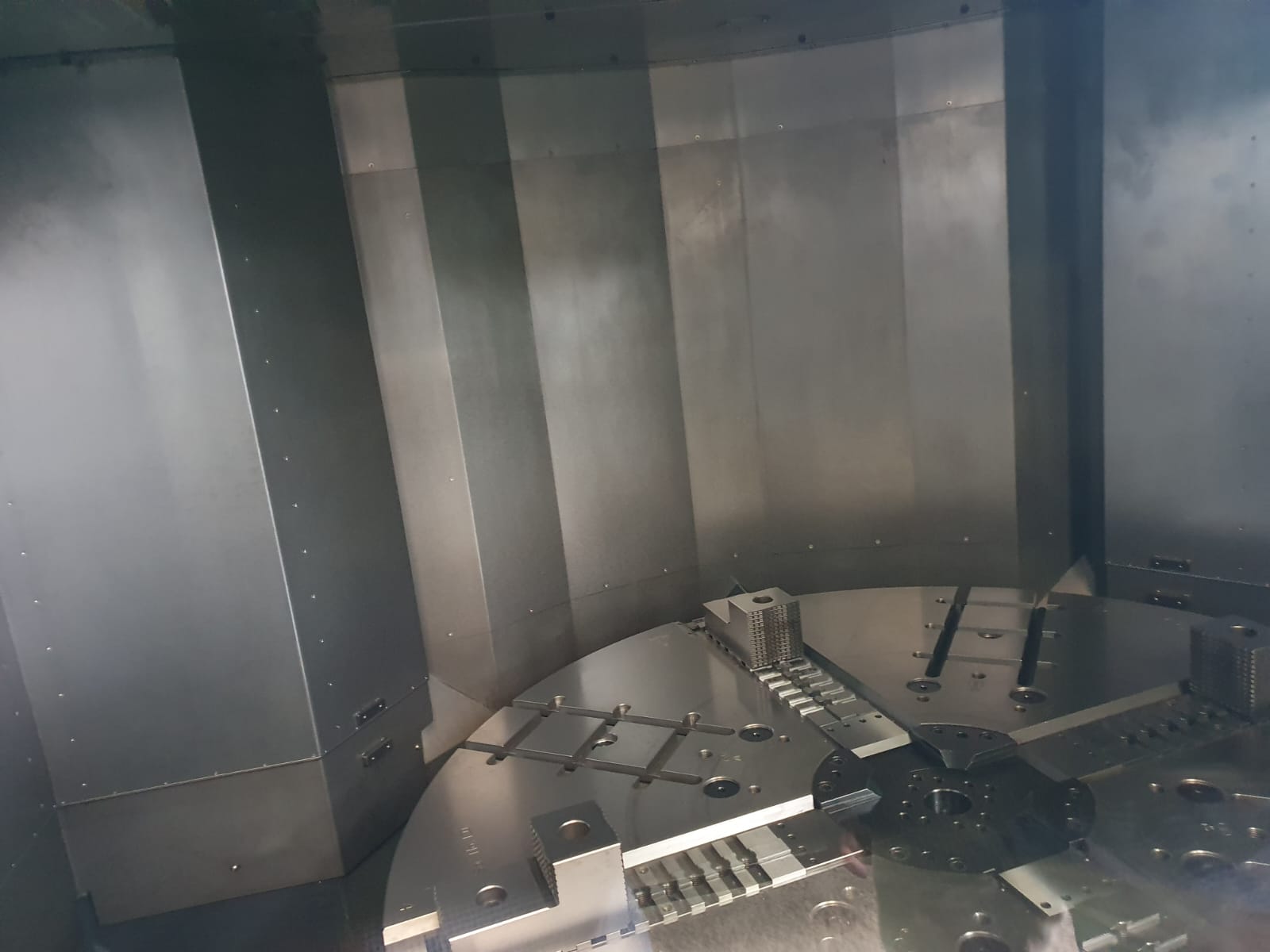

-Self-centering Autoblock IRC 1600 with 4 jaws

USED MACHINE
YEAR 2019
INSTALLED 2020
