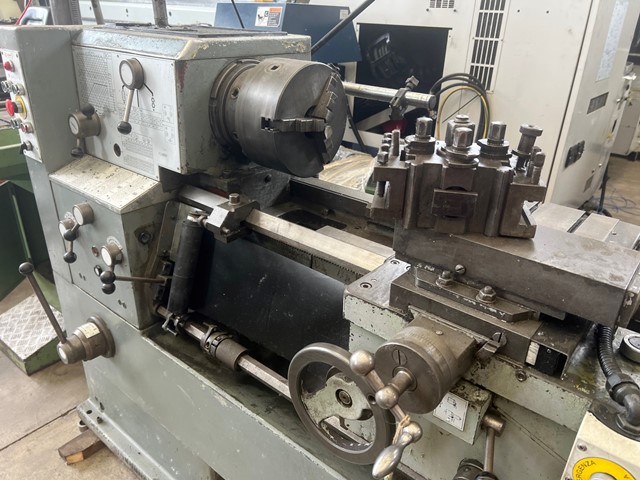

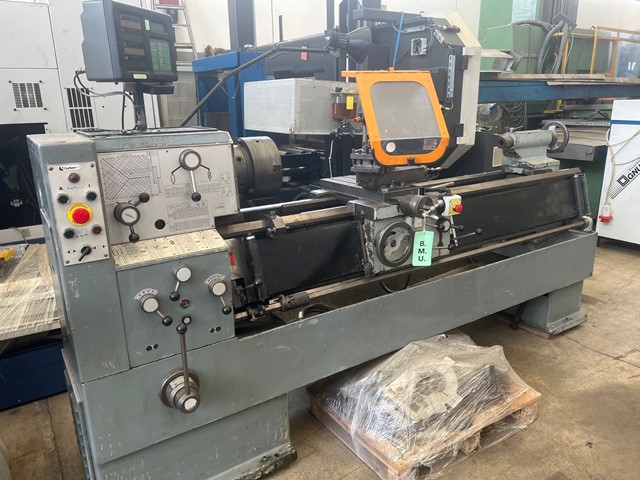

LATHE GRAZIOLI DANIA 180x1500
Diameter up to 600 mm
lathe conventional - Used Machines
GRAZIOLI
09317
09317
Center height 180 mm
Distance between centers mm 1500
Bed width 300 mm
Max turning diameter on the bed mm 1360
Max turning diameter on the carriage mm 214
Gap width mm 240
Max admissible diameter mm 550
Spindle nose CAM LOCK 6 ''
Spindle bore 52 mm
Spindle motor power HP 5.5
Tailstock quill diameter mm 60
Tailstock quill stroke 150 mm
Tailstock quill cone Morse 4
Cross slide travel mm 200
Tool holder slide stroke mm 125
Spindle rotation speed n 24, rpm 20-2000
Approximate net weight 16000 kg
EQUIPPED WITH:

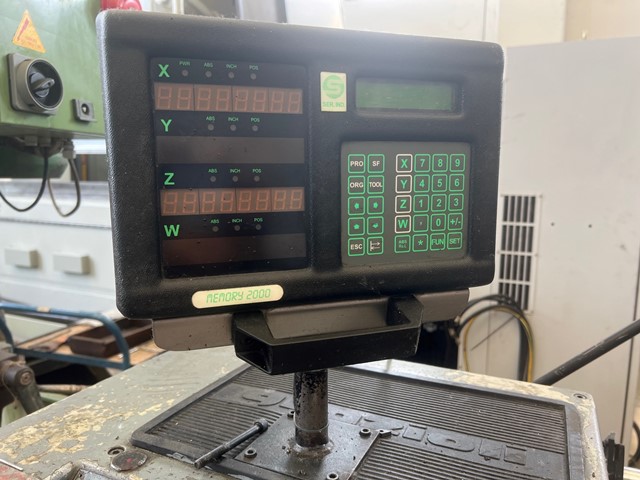

-D.R.O. 2 axis
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
