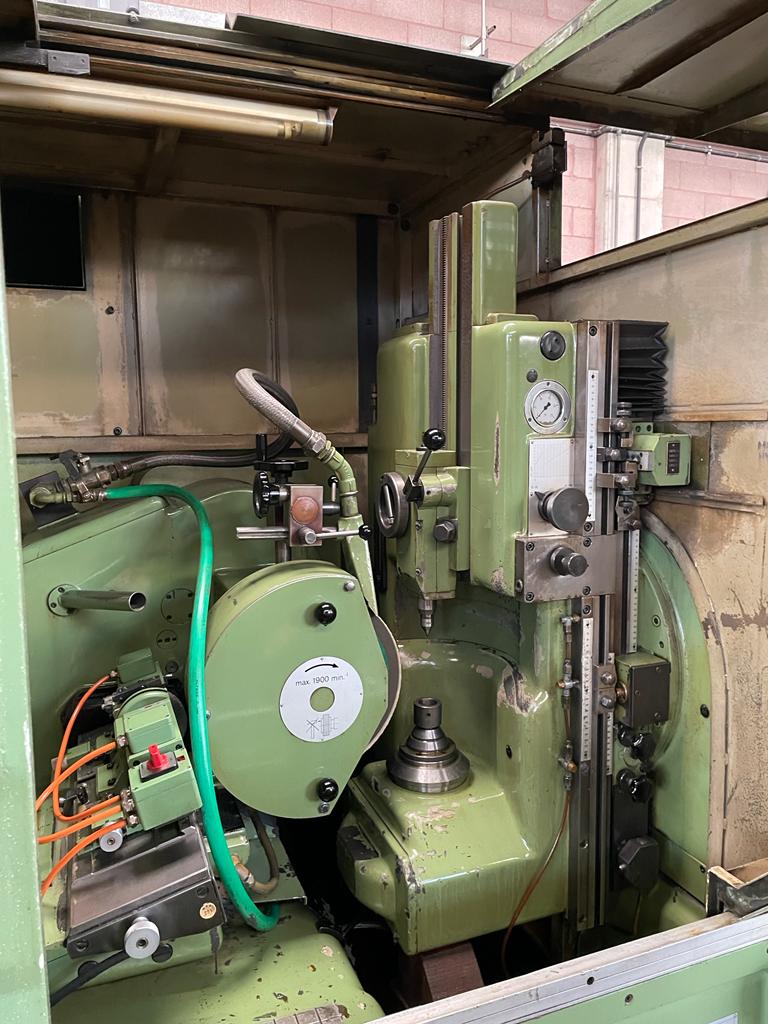

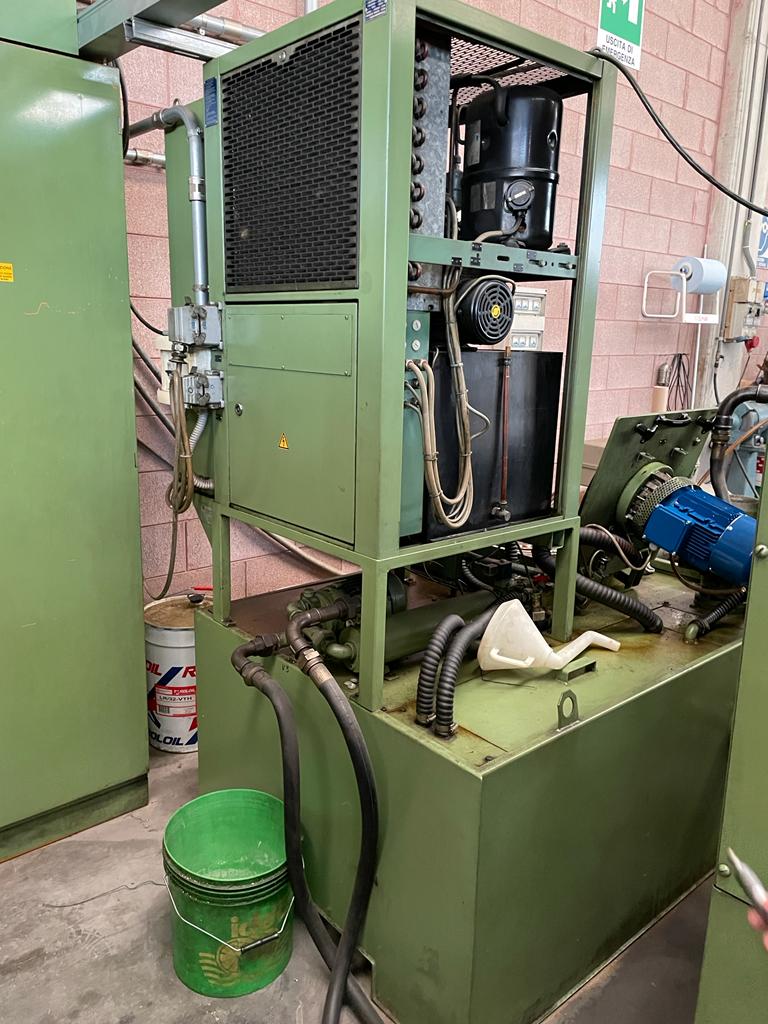

GRINDING REISHAUER TYPE AZA
Gear grinder
09287
FOR GEARS
Min wheel diameter 10 mm
Max wheel diameter 300 mm
Max slide stroke 180 mm
Min/max clamping length 145/420 mm
Piece weight kp 60
Min/max number of teeth 8/260
Min. division MOD 0.5; DP 48
Max division:
-with worm screw 2-speed MOD 3; DP 8
-with worm screw in input MOD 6; DP 4
Pressure angle min/max 10°/45°
Helix angle 45°
Worm size:
-min/max diameter 270/350 mm
-width 62/84/104 mm
Workpiece feed per revolution, continuous mm 0.4: 3.2
Automatic worm feeding:
-per stroke, step by step 0.01: 0.08 mm
-total mm 0.8
Worm screw return for piece change 50 mm
Tangential movement of the piece:
- by hand, up to a maximum of 90 mm
-automatic, permanently 4 mm
-automatic, adjustable 0.25: 2.5 mm
Worm speed:
- during profiling U / min 90
- during profile grinding 1266 2/3 U / min
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
