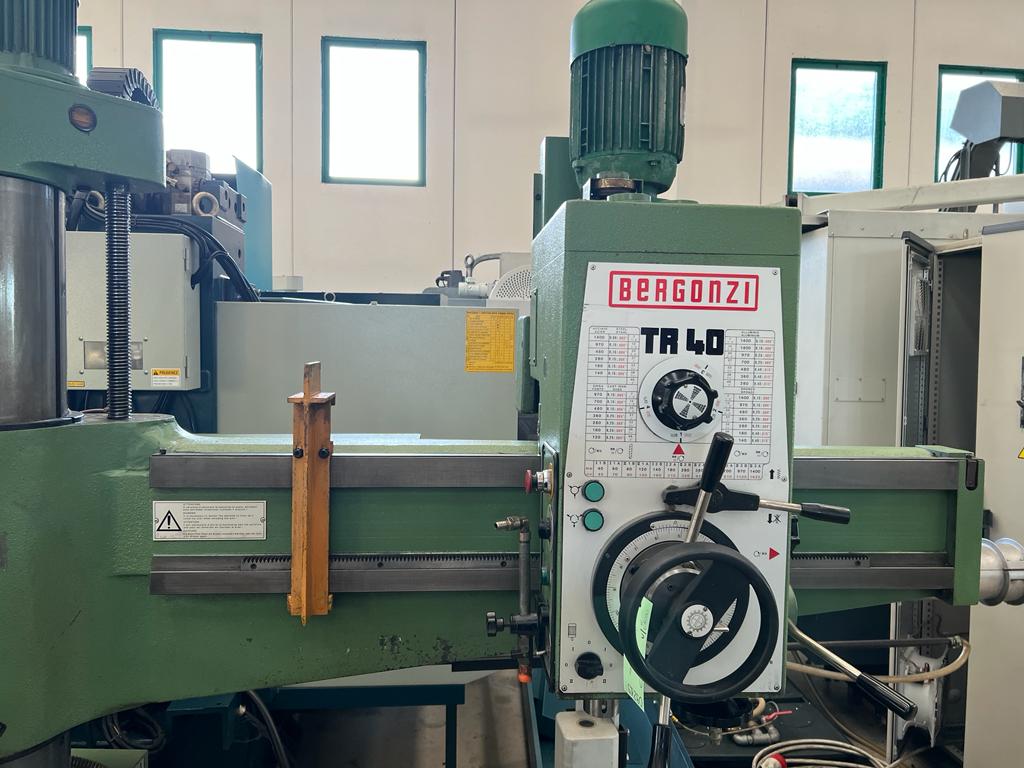

DRILLING BERGONZI MOD. TR40/1250
Radial
drilling - Used Machines
.jpeg)
.jpeg)
.jpeg)
BERGONZI
09215
09215
Max drilling on cast iron 50 mm
Max drilling on steel 40 mm
Thread capacity 40 mm
Fine thread capacity 50 mm
Arm mm 1250
Arm stroke 600 mm
Head stroke 1000 mm
Spindle rpm 40-1400 50Hz
Spindle diameter 75 mm
Morse taper 4

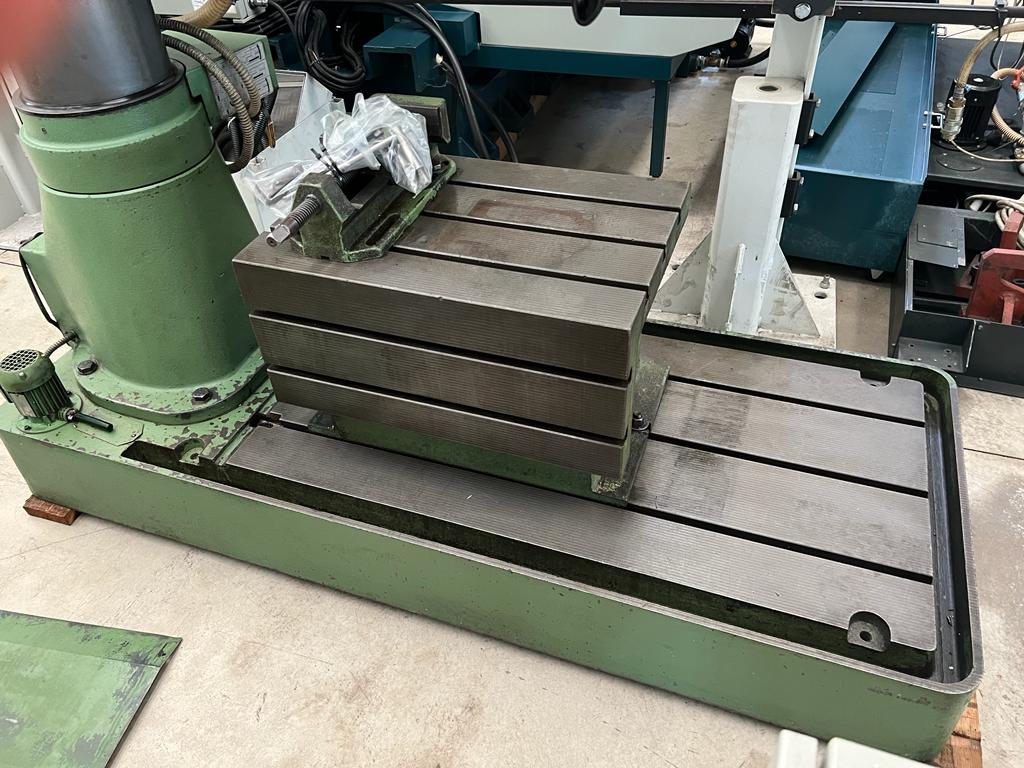

Useful base dimensions mm 1400x760
Spindle motor power 3.5 HP / 2.6 kW
Weight approx. with cube Kg 2150
COMPLETE WITH:
-Cube
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
