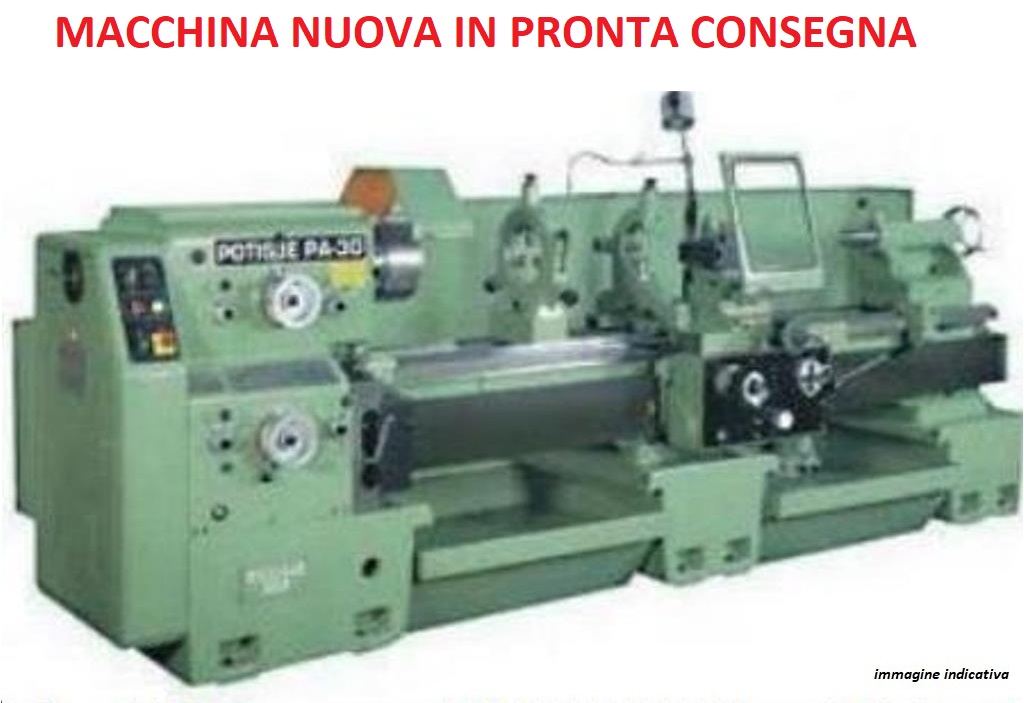

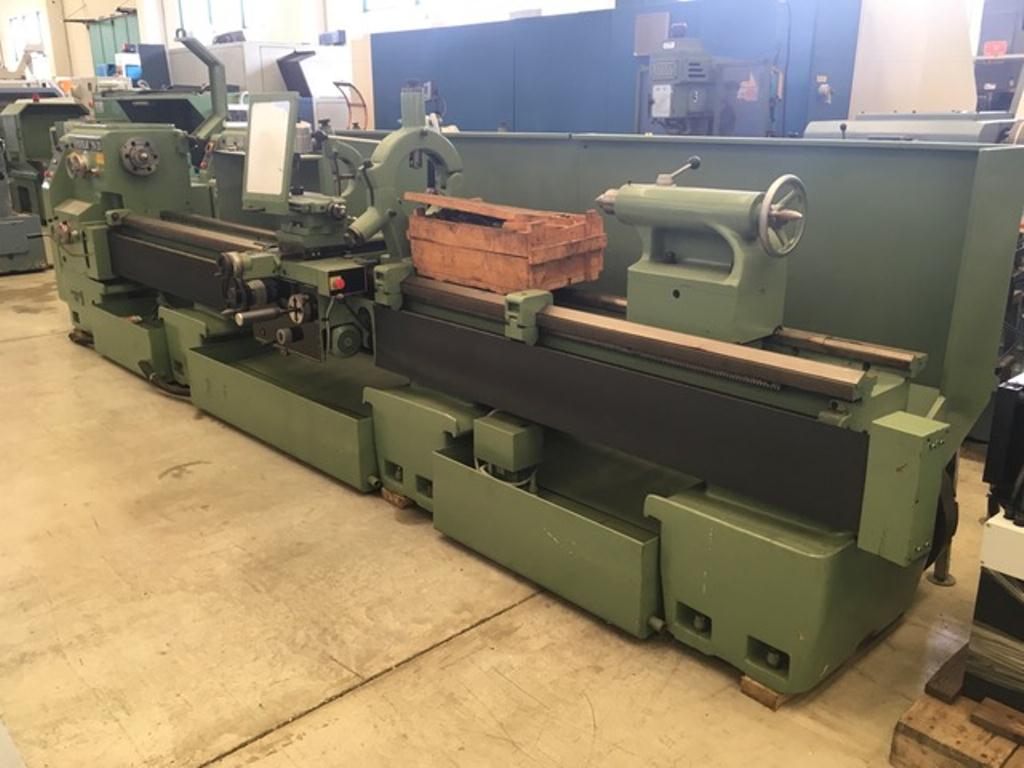

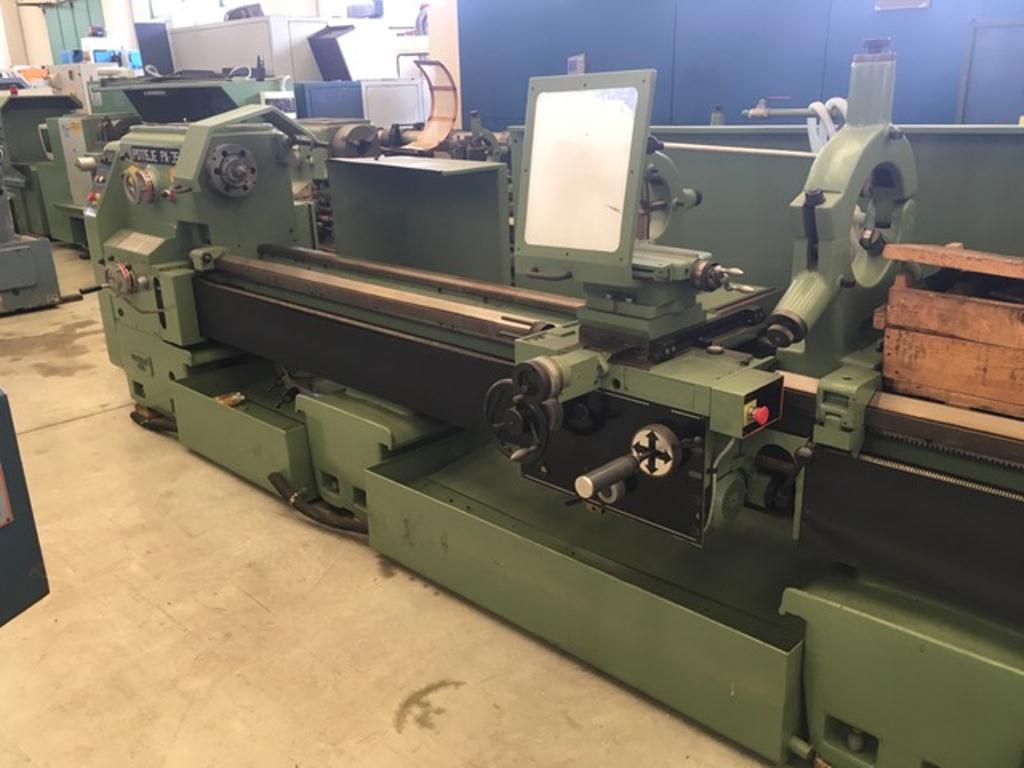

LATHE POTISJE PA 35 x4000
Diameter between 600 e 800 mm
lathe conventional - Used Machines
POTISJE
NEW03761
NEW03761
WITH JOY STICK
-Distance between center mm.4000
-Height of center mm.350
-Bar passage mm.90
-Turning diameter on the bed mm.710
-Turning diameter on the slide mm.500
-Turning diameter over bed gap mm.910
-Widht of bed mm.400
-Spindle nose CAMLOCK D1-8''
-Quill taper CM 5
-Tailstock quill travel mm.185
-Spindle speeds n°24
-Spindle speed Rpm 20:2000
-Power 3 HP - 380V - 50Hz
-Motor power Kw 7,5
-Pump power Kw 1,5
-Dimensions (LxWxH) 5080x1400x1400
-YOP 2005
Equipped with
Steady rest mm 20-250
Follow rest mm 10-70
Dead center CM5
Chip collecting tray
Full lenght splash guard
Halogen lamp
Coolant system
NEW MACHINE
