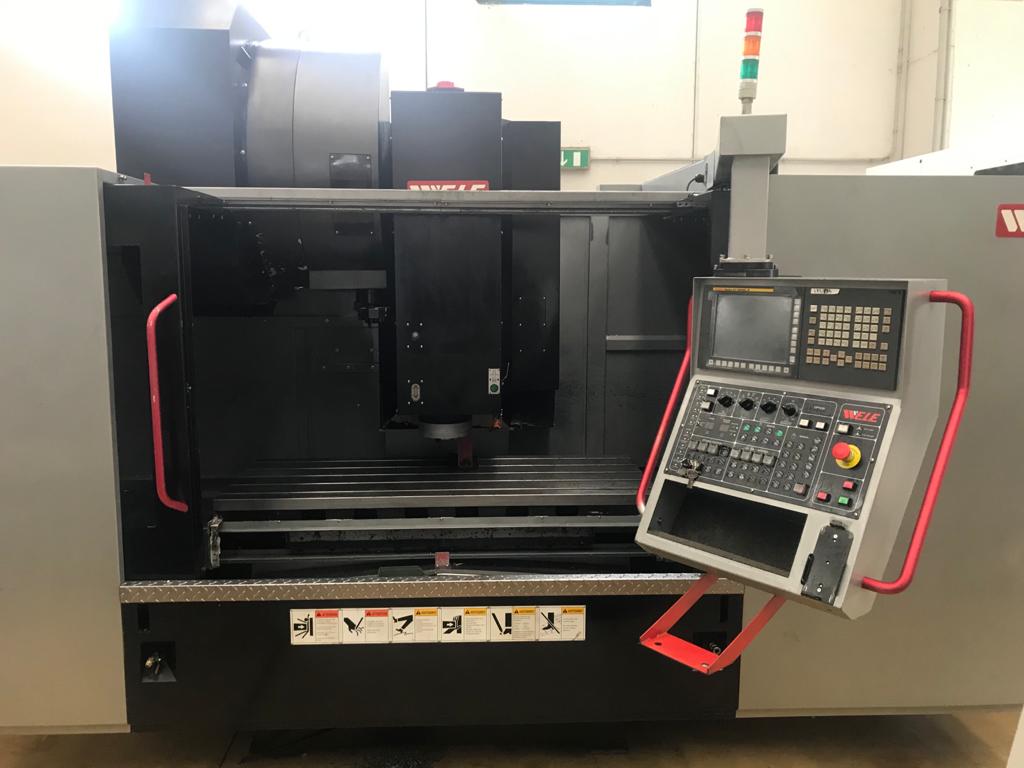

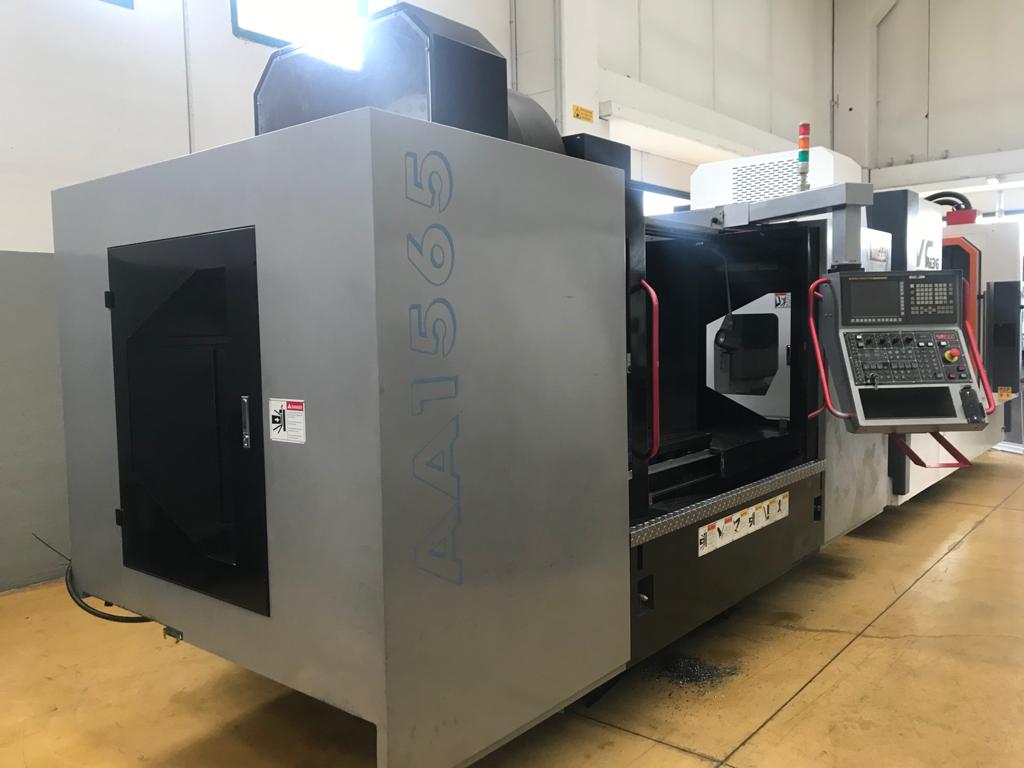

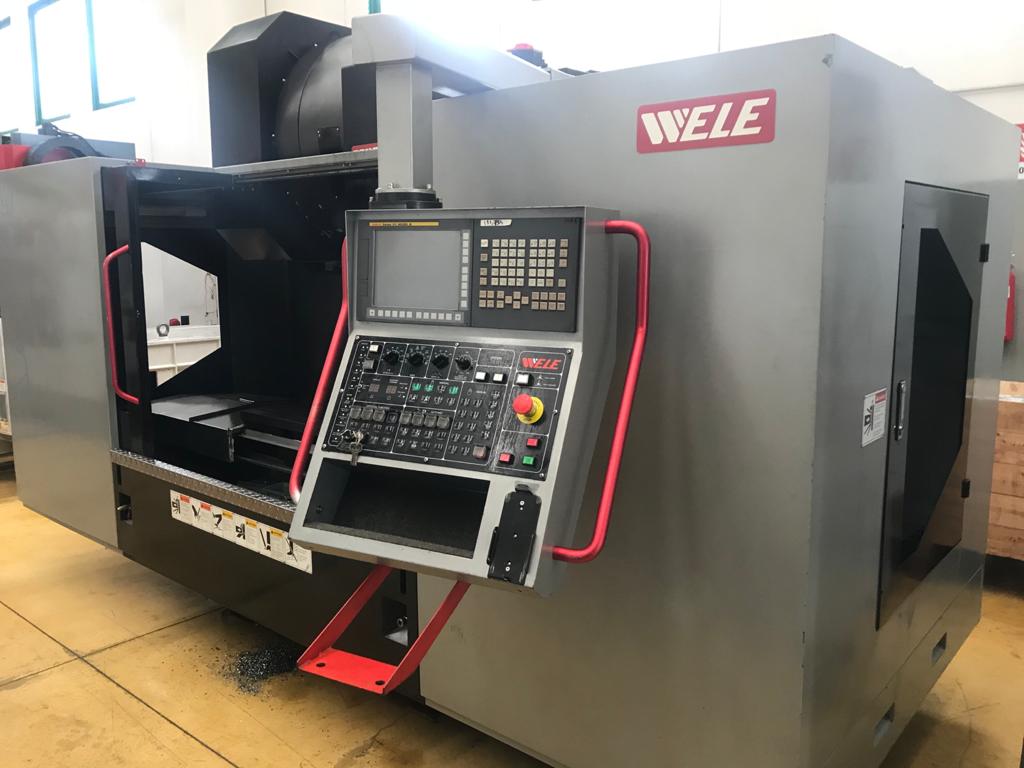

CENTER WELE AA1565
Single pallet
08841

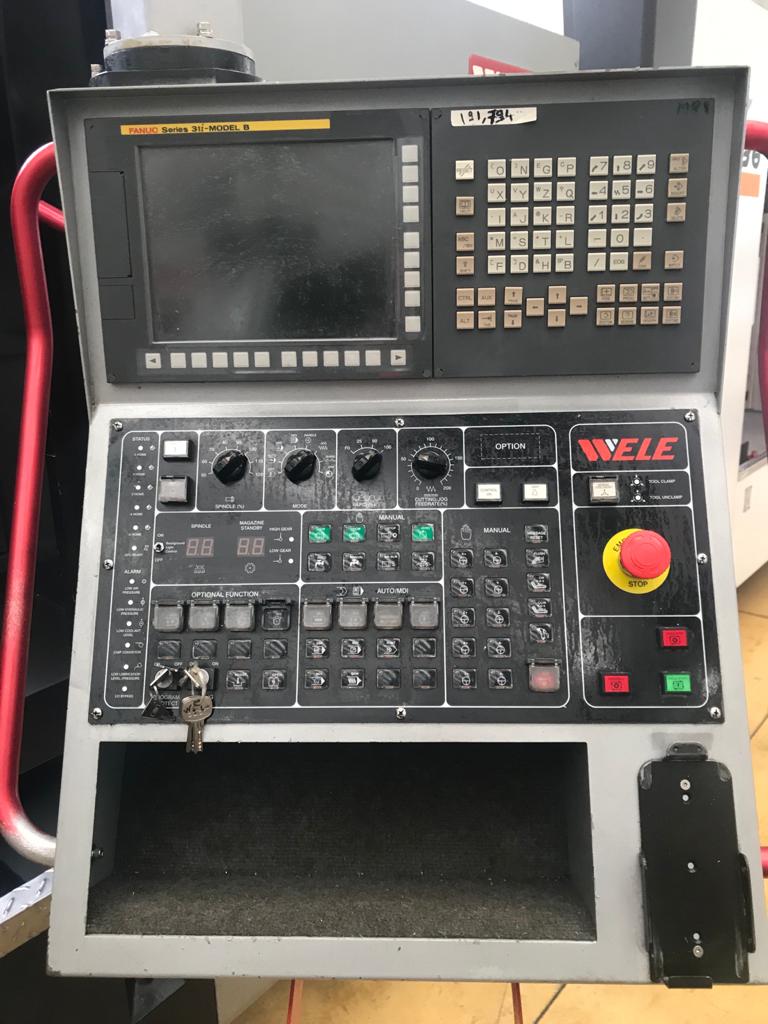

CNC FANUC 31iMB + volantino remotato

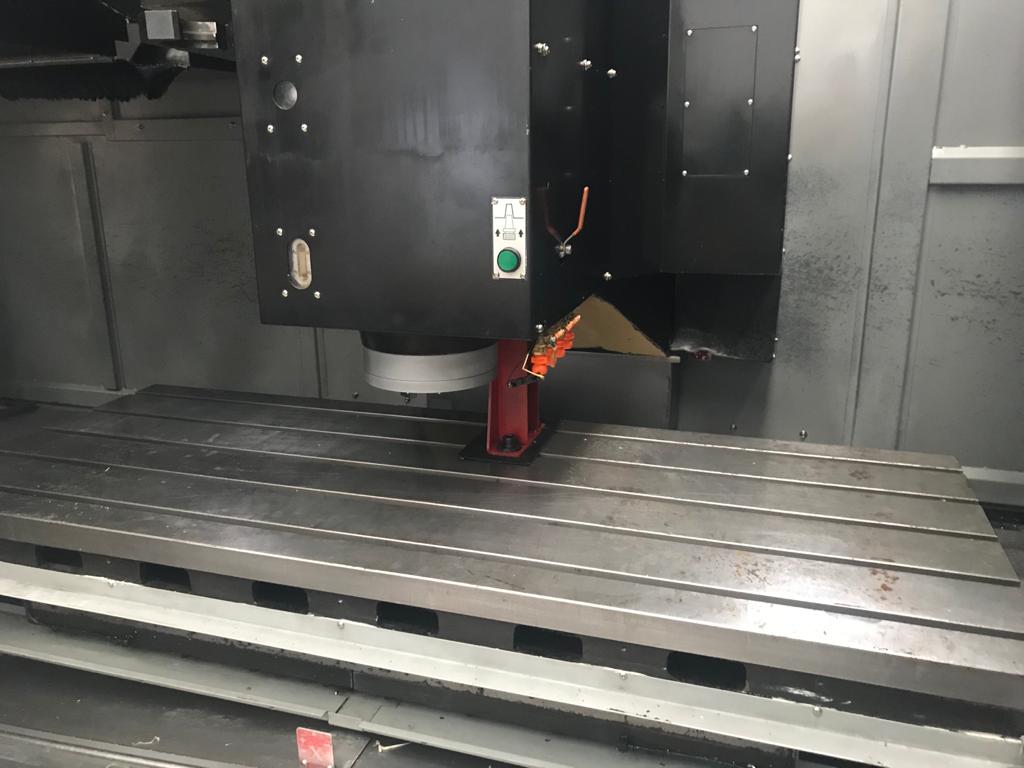

TABLE:
Table size mm 1650x650
Table load Kg 1500
STROKES:
Axis X stroke mm 1500
Axis Y stroke mm 650
Axis Z stroke mm 600
Distance form spindle nose to table top mm 125-725
SPINDLE:
Spindle speed rpm 6000
Motor power (cont./30 min.) kW/HP 11/15 (15/20)
Spindle taper BT 50
With gearbox
FEEDRATE:
Rapid feedrate axis X mm/min 15000
Rapid feedrate axis Y mm/min 15000
Rapid feedrate axis Z mm/min 12000

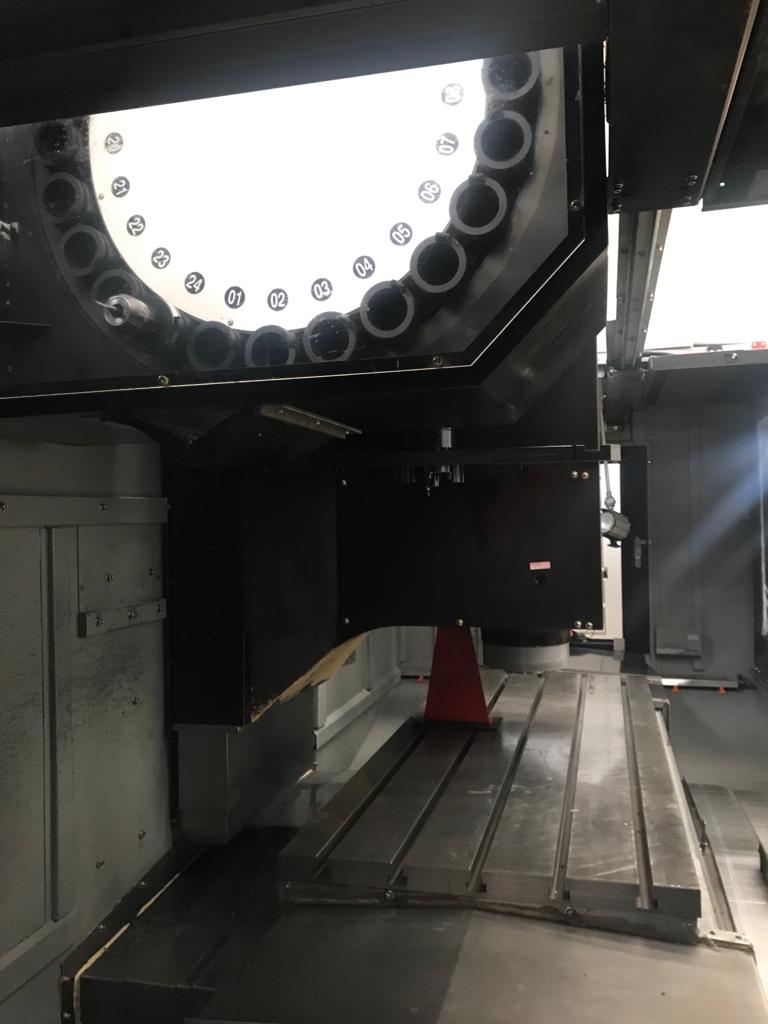

TOOL MAGAZINE:
Tool magazine 24 positions
Max tool diameter (adjacent pocket empty) mm 110/200
Max tool lenght mm 300
Max tool weight Kg 15
OVERALL DIMENSIONS AND WEIGHT:
Machine lenght mm 4110
Machine width mm 2240
Machine height mm 2940
Machine weight Kg 8100
EQUIPPED WITH:
- Chain chip conveyor
- Oil skimmer
- 4th axis preparation (cables)
- Coolant through the spindle 20 bar with high pressure
- Workpiece probe BLUM TC50 + infrared signal receiver
USED MACHINE
YEAR 2014
